Aposonic A-S1604R4 User Manual
Page 11
10

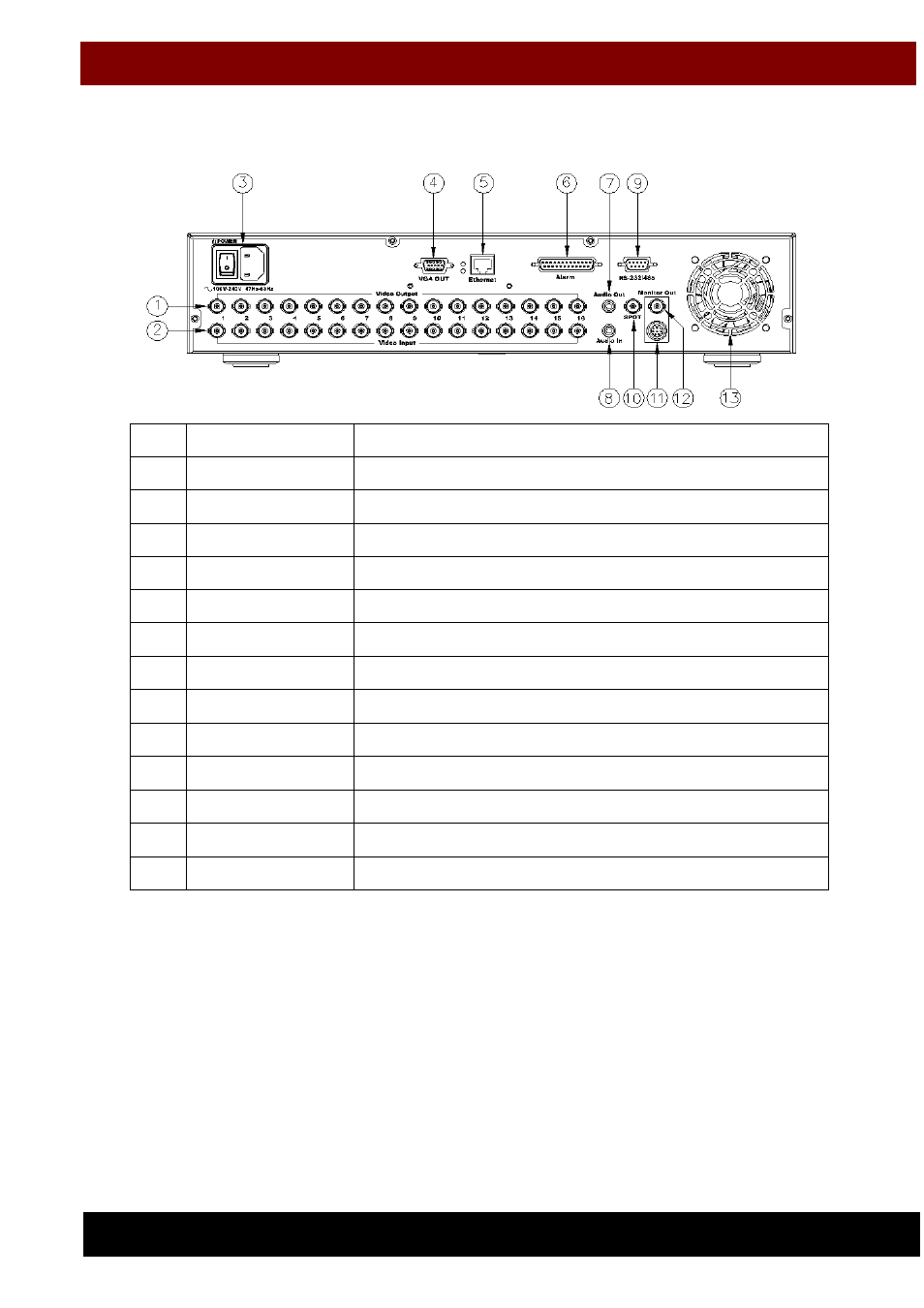

2.2 BACK PANEL
NO. LABEL
OPERATION
1 VIDEO
OUTPUT Video output with BNC connector.
2 VIDEO
INPUT Video input with BNC connector.
3 POWER
Power switcher: AC100V~AC240V / 47-63Hz input.
4
VGA D-SUB OUT Connect to CRT or LCD monitor.
5 ETHERNET
RJ-45 connector for network.
6 ALARM
25 pin D-Sub connector for Alarm input.
7 AUDIO
OUT
Audio output.
8 AUDIO
IN
Audio input.
9
RS-232 / RS-485
9 pin D-Sub connector for external control unit.
10 SPOT
SPOT video output.
11 MONITOR
OUT Video output with S-Video connector.
12 MONITOR
OUT Video output with BNC connector.
13 FAN
Cooling fan.
