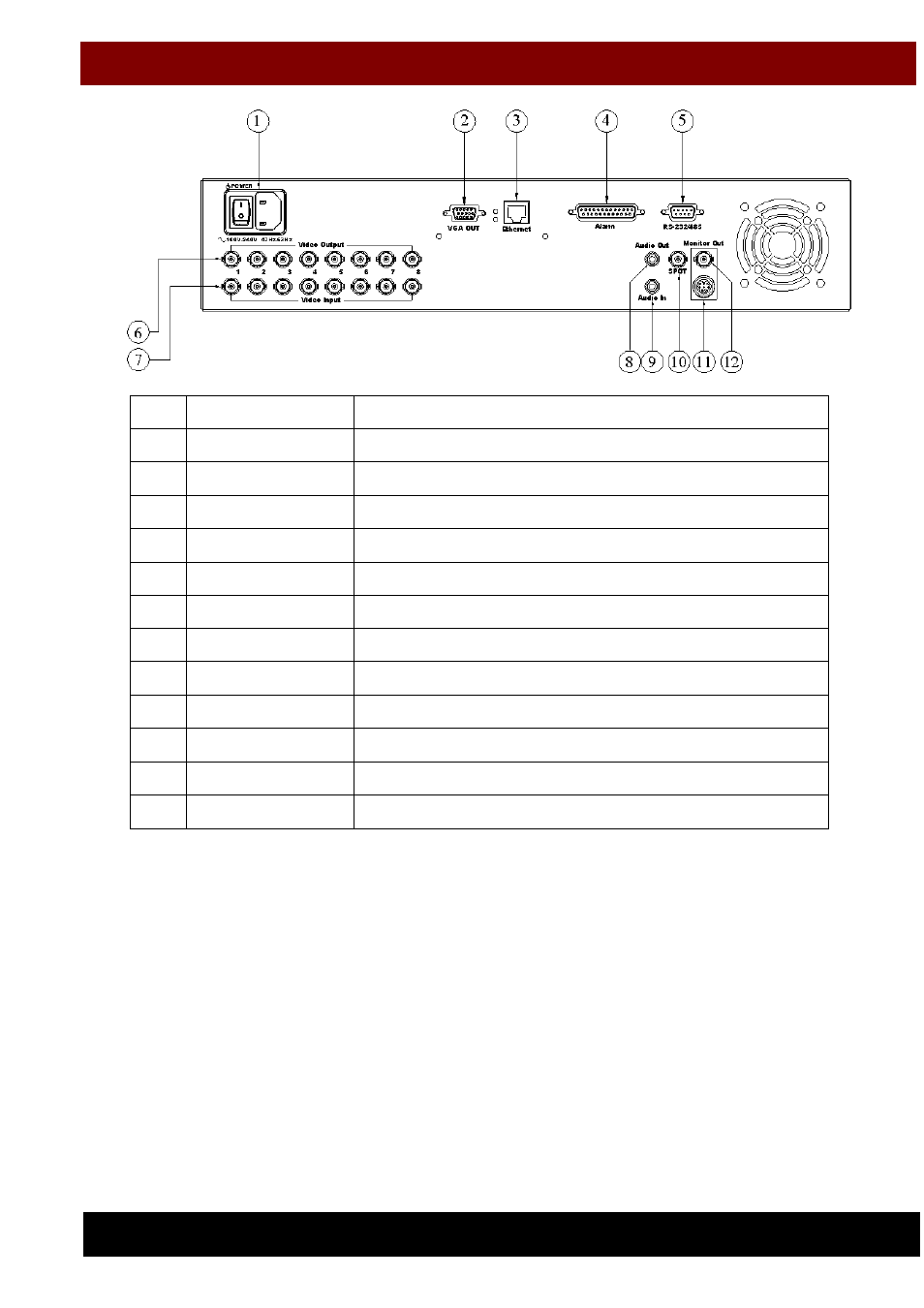

NO. LABEL OPERATION
1 POWER Power switcher: AC100V~AC240V / 47-63Hz input.
2 VGA D-SUB OUT Connect to CRT or LCD monitor.
3 ETHERNET RJ-45 connector for network.
4 ALARM 25 pin D-Sub connector
5 RS-232/485 9 pin D-Sub connector
6 VIDEO OUTPUT Video output with BNC connector.
7 VIDEO INPUT Video input with BNC connector.
8 AUDIO OUT Audio output
9 AUDIO IN Audio input.
10 SPOT OUTPUT Spot Output
11 MONITOR OUT Video output with BNC connector.
12 MONITOR OUT Video output with S-Video connector.
2.3 ADVANCED ZOOM, PTZ & COPY KEY CONTROL
ZOOM: In the full screen mode, user can use “ZOOM” button on the front panel to
perform ZOOM function. Press ▲▼◄►, located on the front panel, to move
the zoom window.
PTZ: When camera supported PTZ function, user can use “PTZ” button, located on the
front panel, to perform PTZ function. Press ▲▼◄► to select and change setup
value.
COPY: Within the playback mode, press “COPY” button to start backup record and press
“COPY” again to end backup.
