Aposonic A-S0804R3 User Manual
Page 11
11

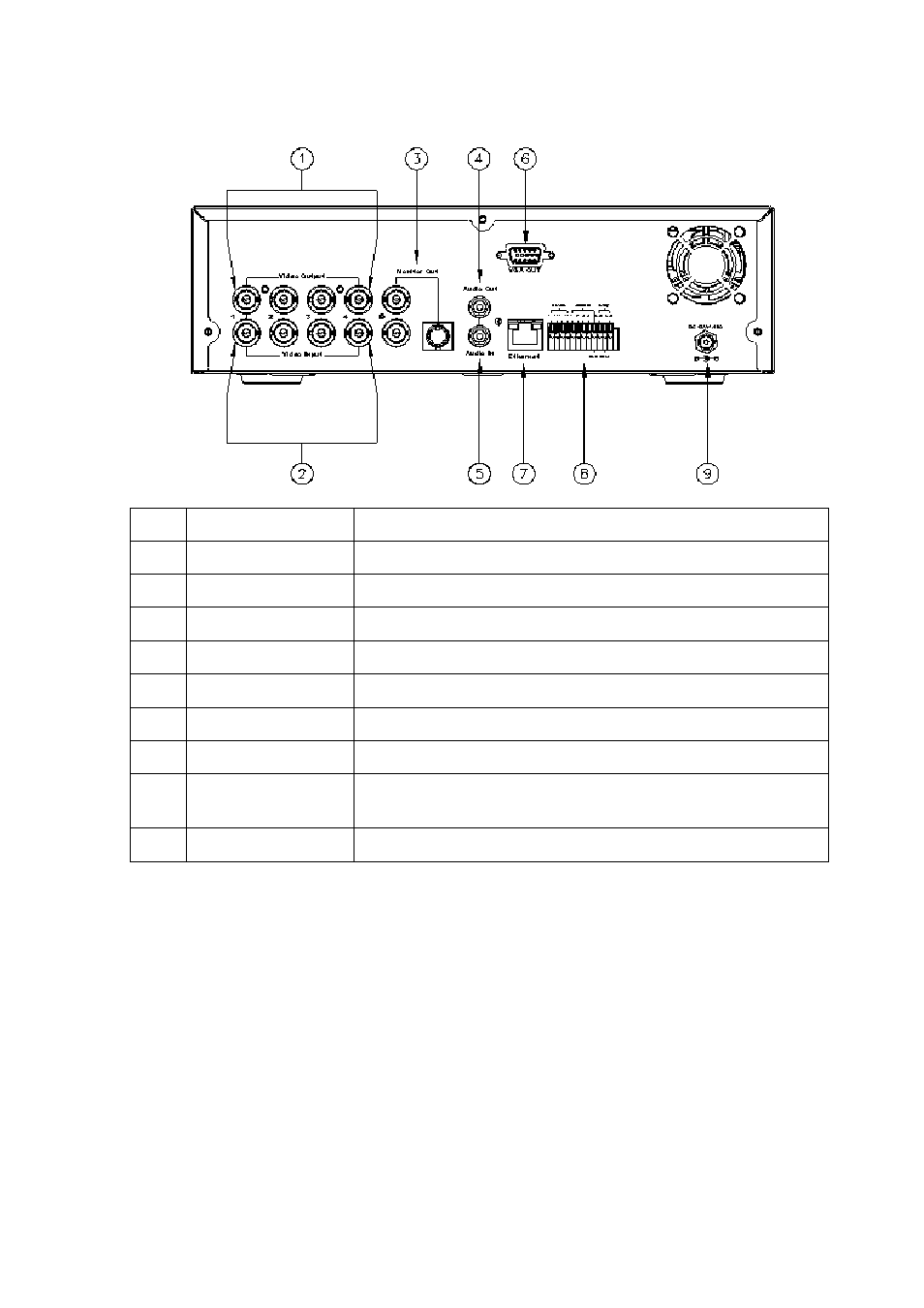

2.3 4CH BACK PANEL
NO. LABEL
OPERATION
1 VIDEO
OUTPUT Video output with BNC connector.
2 VIDEO
INPUT Video input with BNC connector.
3 MONITOR
OUT Video output with BNC and S-Video connector.
4 AUDIO
OUT
Audio output
5 AUDIO
IN
Audio input.
6
VGA D-SUB OUT Connect to LCD monitor.
7 ETHERNET
RJ-45 connector for network.
8
RS-485/ ALARM/
RELAY
4 pin connector for external control unit, 5 pin connector for
Alarm input and 3 pin connector for relay
9 POWER
Power switcher: DC 12V 5A / 50-60 Hz input.
