Maintenance
The Maintenance menu allows user to manage all the entered or acquired
information stored in database. For management purposes, the Maintenance menu
consists of five tables.

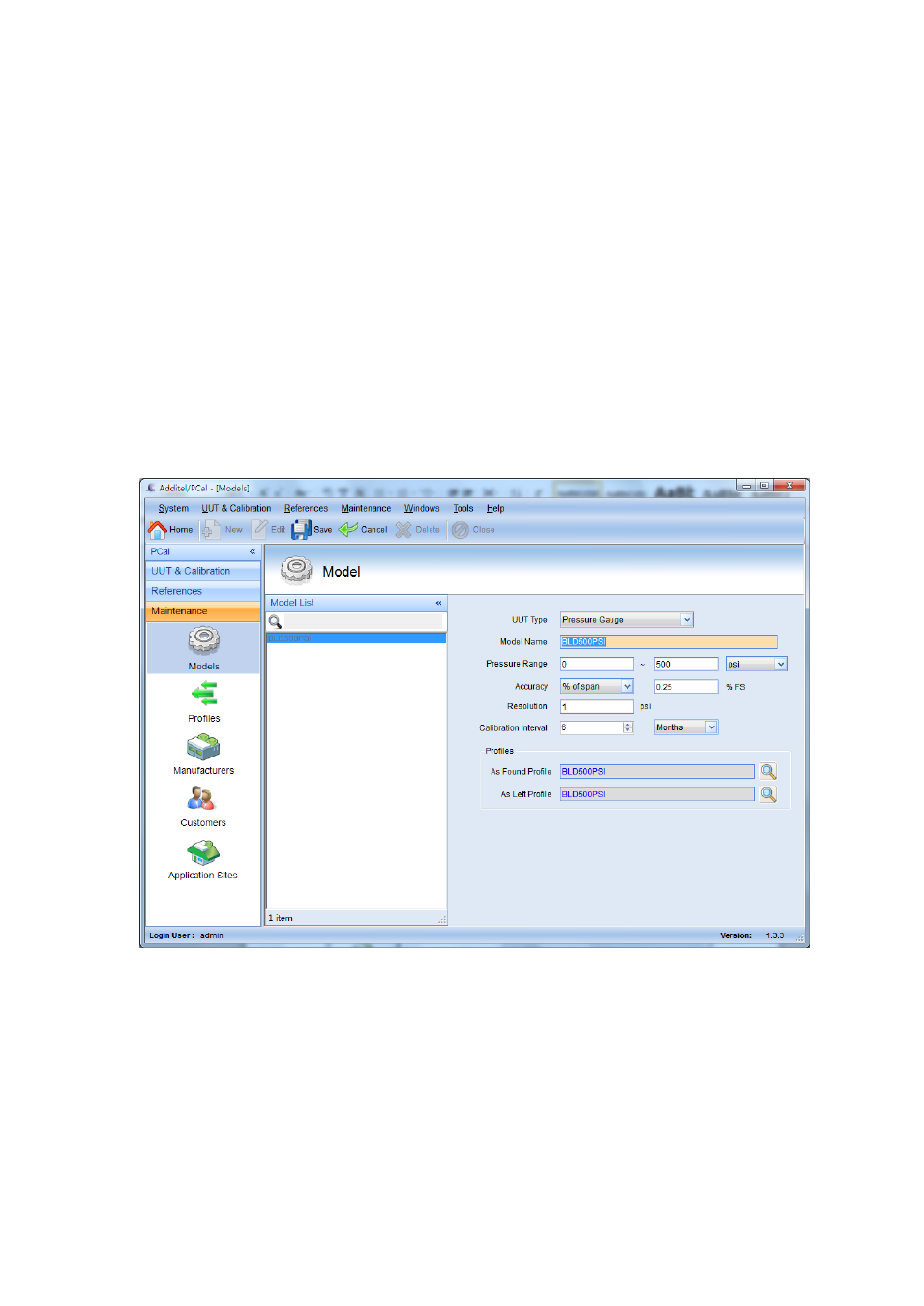

Models: The Models editor allows access to the data associated with all models
stored in the database.
Enter the Model Name, Pressure Range, Accuracy and Resolution of the gauge.
Select the Units of Pressure for this model from the pull-down lists.
Enter the Calibration Interval, in days (weeks or years), which will be used for
calibration scheduling.
From the pull-down lists, select Profiles for As Found and As Left calibrations.
Specify the number of runs through each profile, if the desired profile is not listed,
click the “New” button to open a Profile editor.
If the UUT Type is a transmitter, there is an additional section that contains the
information about Output Signal and Transfer Function.
