2
Specifi cations No. 5 .................................................. 2
Safety Instructions .................................................... 3
Installation, Operation & Maintenance...................... 6
Trouble Shooting ...................................................... 7
Replacement Parts .................................................. 8
Replacement Parts for Later Models ...................... 13
Replacement Parts - Blade Tensioning Device ...... 13
Wellsaw® Select-O-Chart ..................................... 14
Index
For Your Convenience
When contacting your WELLSAW supplier or the
Company for parts or service, it is helpful to have
both your saw Serial Number and Purchase Date
available. Jot them down her for handy reference.
Serial Number:
Purchase Date:

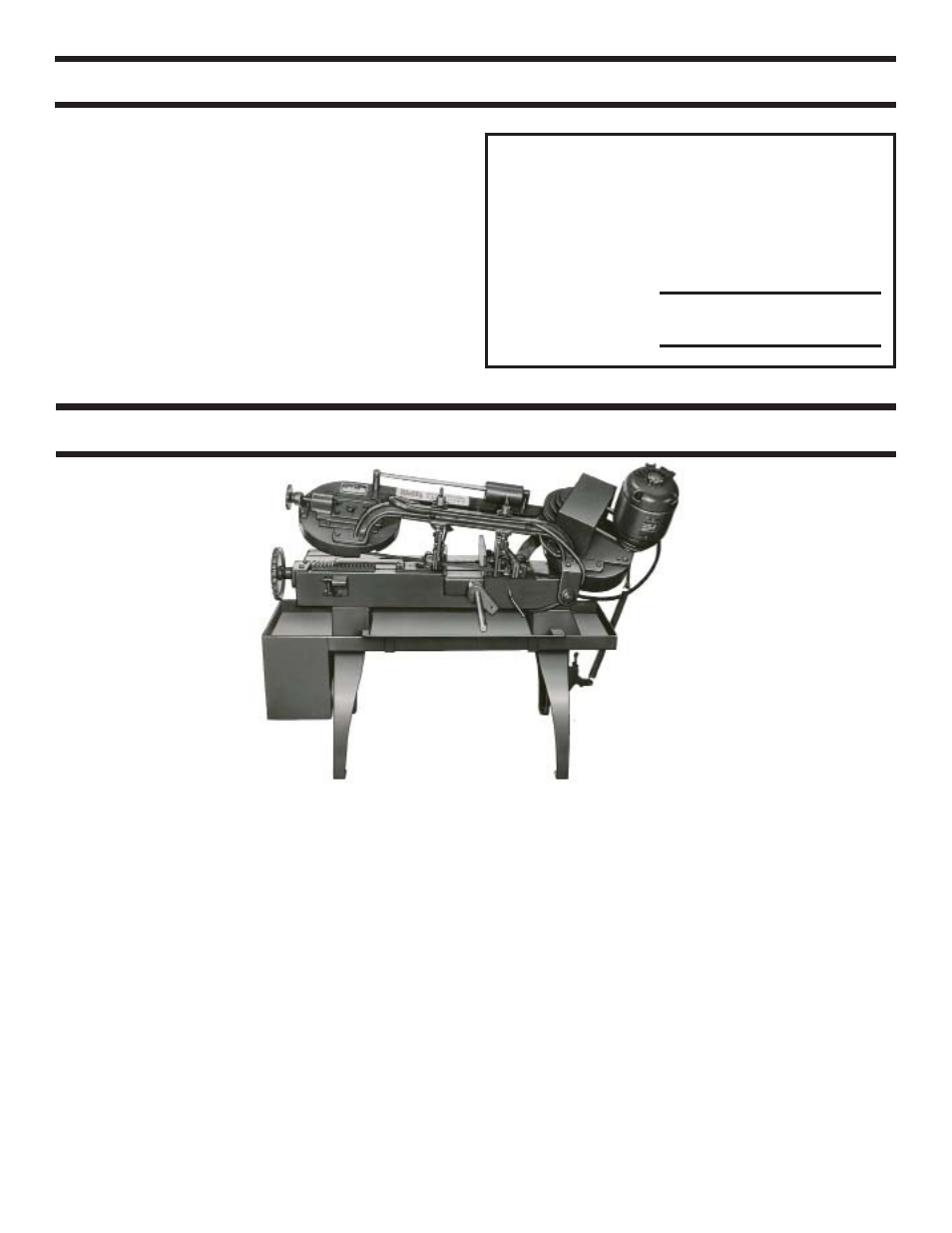

Standard Capacity: Rectangular ....................................................... 5” x 10”
Rounds
................................................................. 5" dia.
Speeds: Three Speed Saw –FPM ..............................60, 90, 130
Four Speed Saw - FPM .........................50, 90, 160, 250
Motor Size: ...........................................................................................1/3 HP
Swivel Vise: ........................................................................................... to 45°
Blade Size: .......................................................................... 8'3" x 1/2" x .025"
Height to top of bed: ........................................................................... 25-1/2"
Width of Bed .......................................................................................... 8-1/2”
Drive: ................................................................................................... “V" Belt
Floor Space required: ...................................................................... 21" x 50"
Shipping Weight, (approx). ................................................................ 365 lbs.
With
Coolant ....................................................... 420 lbs.
Blades are available for No. 5 Wells saw in a variety of tpi
Specifi cations
