Replace parts – Wellsaw 5М User Manual
Page 12

12

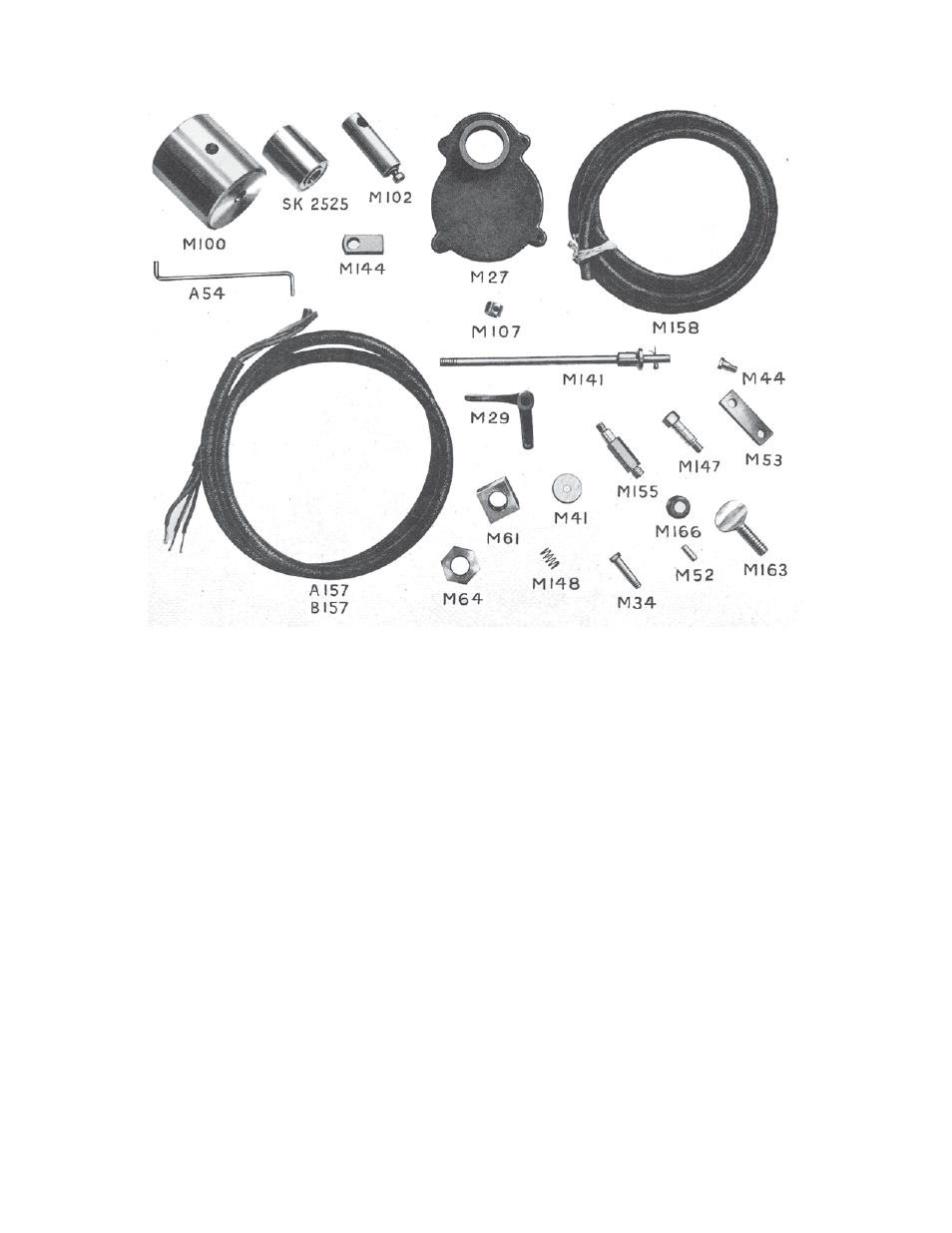

M27
Gear Case Cover
M29 Switch
Trigger
M34 Switch
Trigger
Axle
M44 Short
Roller
Axle
M52
Motor Plate Pivot Pin
M53
Motor Plate Pivot Pin Holder
M61
Vise Screw Nut
M64
7/8 x 9 LH Lock Nut for Vise Screw Hand
Wheel
M100
Steel Sliding Weight (not furnished - order
No. M807 - cast)
M102
Sliding Weight Post
M107
Ratchet Rod Lever Collar
M141
Dash Pot Piston Rod with M142 Piston,
assembled
unit
M144
Dash Pot Piston Rod End
M147
Dash Pot Lower Bolt
M148
Dash Pot Spring
M155
Dash Pot Upper Stud
A157
Cable, Motor to Switch, No. 5 Saw
SK2525 Wheel Ball Bearing (not furnished)
Replaced by two ND No. 8504 Bearings
and one M172 Spacer
M158
Cable, Complete, Motor to Outlet (not
furnished)
M163
Thumb Screw for Sliding Weight, used
with
M100
M166
Dash Pot Cup Leather
The following parts are not shown:
M54 Switch
Rod
M188
Driven Pulley Spacer
M198
Blade Brush Bracket
M425 Blade
Brush
Angle
M426 Blade
Brush
M807
Cast Iron Sliding Weight
M857
Sliding Weights Stop Spring
Replace Parts
