Wellsaw 5М - Manual (Page 11)

11

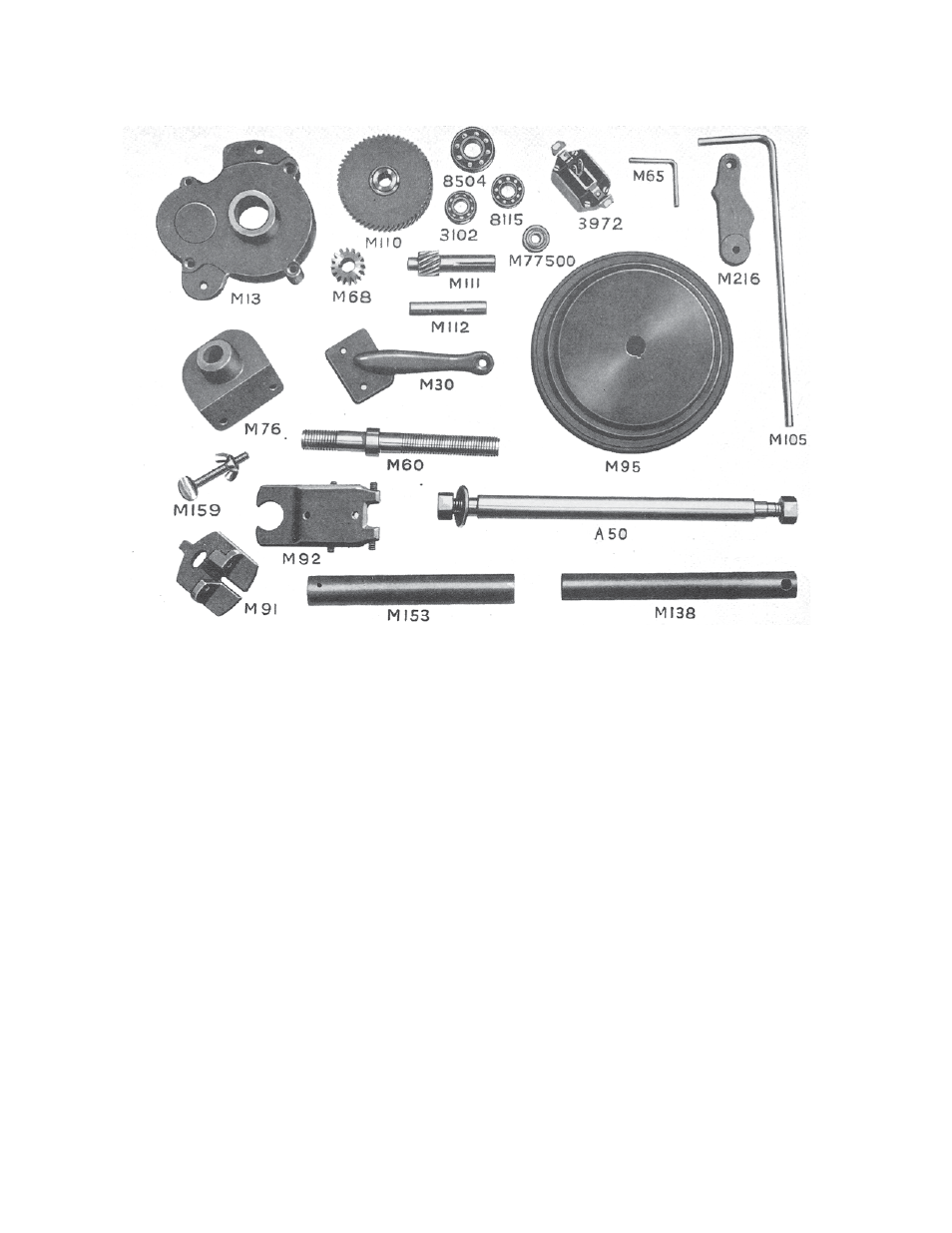

Replacement Parts
M13 Gear Case
M30 Frame Spring Arm
A50 Frame Pivot Bar
M60 *Vise Screw with M177 Collar Assembled
Unit
M65
Fixed Vise Jaw Locking Pin
M68 *Drive Pinion
M76 Vise Screw Bracket
M91 Roller Support
M92 Roller Adjuster
M95 *Driven Pulley (3 speed saw)
M105 Rod Ratchet Lever
M110 *Plastic Gear with M165 Hub
M111 *Pulley Shaft and Pinion (.625 dia)
M112 *Drive Pinion Shaft
M138 Cylinder for Dash Pot (inner)
M153 Cylinder for Dash Pot (outer)
M159 Thumb Screw and Wing Nut for
Spring Adjuster
3102 Ball Bearing for Lower End M111 Pulley
Shaft
3972 Switch. Call factory with complete specs
8115 Ball Bearing for Pinion Shaft
8504 Ball Bearing for Upper End M111 or M171
Pulley Shaft; also for Band Wheels
100406-001 Blade Guide Bearings
M216 Spring
The following parts are not shown:
M156 5/16 x 7/8 Thin Head Cap Screw
M167 5/8 Nut with Set Screw for Frame Pivot Bar
M168 Washer for Dash Pot Cup, leather
M171 Pulley Shaft and Pinion .590 diameter
M172 Spacer for A35
M181 Switch Rod Post (CH No. 9115)
M189 *Driven Pulley Key
M190 Plastic Gear Key
3202 Ball Bearings for Lower End M171 Pulley
Shaft
