U.S. Sunlight 9910TRP Solar Panel - Manual

Installation and Mounting Guide
683 Pinnacle Place | Livermore, CA 94550
Tel: 866-446-0966
www.ussunlight.com
[email protected]
Thank you for purchasing the Add-a-Panel option from U.S. Sunlight Corp.
We are committed to providing alternative energy products that can improve your
everyday life and our environment. We have reduced packaging material and
eliminated Styrofoam to reduce the impact on landfills. We offer an installation
video that is available to view online at www.ussunlight.com.
If there is a problem with your U.S. Sunlight product call us at 1-866-446-0966.
Spare parts, installation advice, or recommendations for professional installers
in your area are only a phone call away. Professional installation may be much
less than you expect, please call us to get average rates for your area.
Before beginning the installation of your new All Purpose Ventilator, please read
through the entire installation instructions and call us if you have any questions.
Optional Hardware (not included)
Panel mounting options: (roof mounting)
• 3” galvanized deck screws
(for mounting to composition roof)
• caulk gun with roof tile adhesive
(for mounting solar panel directly to s-tile, flat tile or metal roofs)
Panel mounting options: (wall mounting)
• 1.5”- 3” anchor screws (depending on your specific type of
stucco, cement or brick wall. Must support up to 20 lbs)
• 1.5”- 3” galvanized screws (depending on your specific
type of wood or vinyl siding. Must support up to 20 lbs)
• caulk gun with roof tile adhesive
(for sealing screw heads when mounting to wood or vinyl siding)

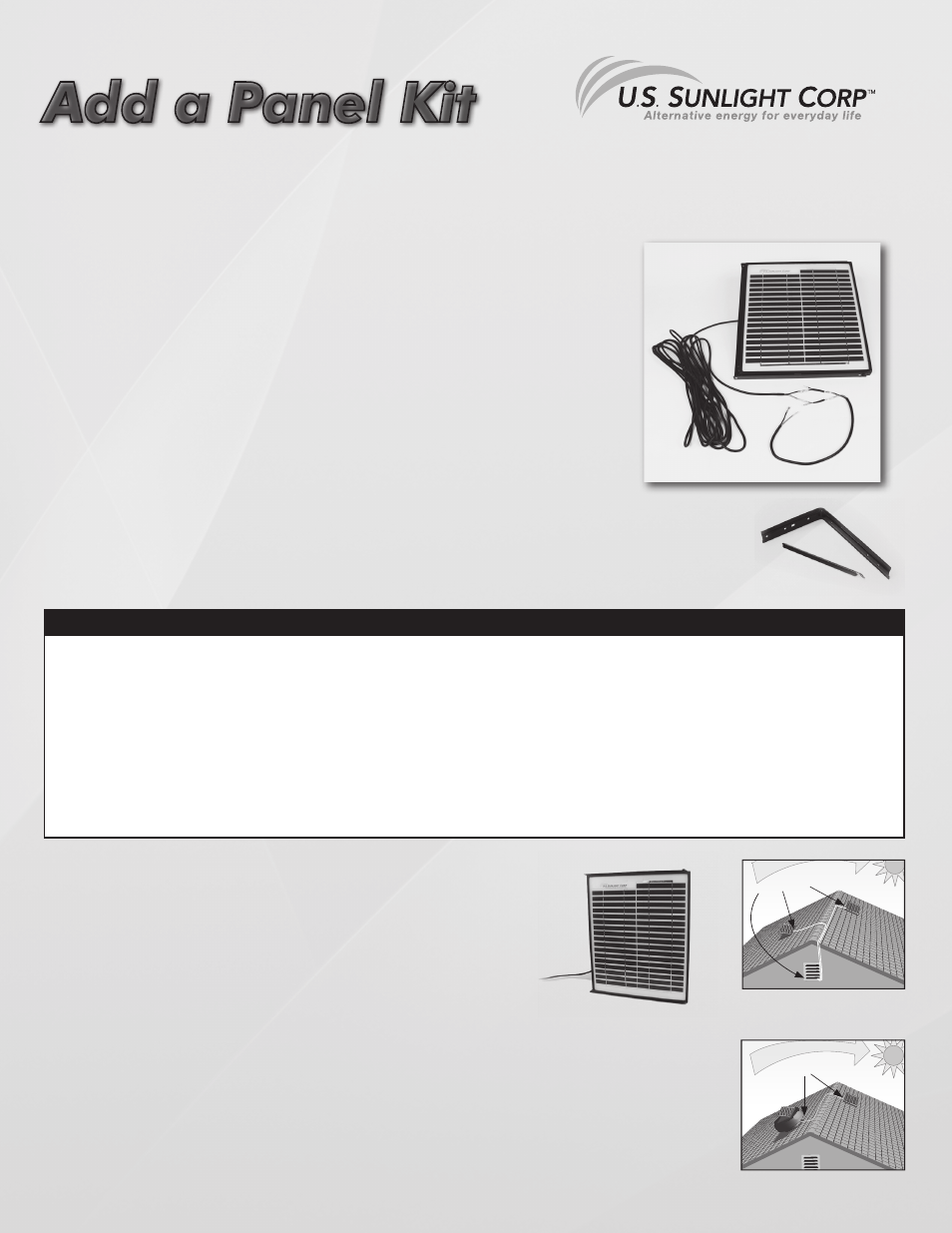

Kit Includes:
Panel with 30 ft
of wire and Y-adapter
1 set of wall brackets
Mounting the additional
Solar Panel
If you are adding the panel to an All Purpose Ventilator
(gable fan) or a roof mounted fan such as the Solar Powered
Attic Fan or Roof Mount Attic Fan be sure to measure the
distance before installing
The Solar panel unit comes with 30 ft. of wire. It is a good idea to measure the distance from the
fan’s motor and where you’ll be installing the panel to make sure you have enough wire to cover the
span. (between a. and b. on fig. 1 & 2)
fig. 2
max 30 feet
Add-a-Panel
Option
Add-a-Panel
Option a.
b.
Using with roof
mounted attic fan
fig. 1 Using with gable
mounted attic fan
max 30 feet
Add-a-Panel
Option
Add-a-Panel
Option
a.
a.
b.
Add a Panel Kit
for the All Purpose Ventilator
and Roof Mount Attic Fan -
Models 9910APV and 9910TRP
