5
TRITON SYSTEMS, INC.
MAKO CASH DISPENSER PEDESTAL INSTALLATION GUIDE
If the optional security chain is being installed, drill four,
3/8" holes at least three inches deep, into the concrete
flooring at the anchor plate positions marked earlier.
INSTALL OPTIONAL SECURITY CHAIN
ANCHOR

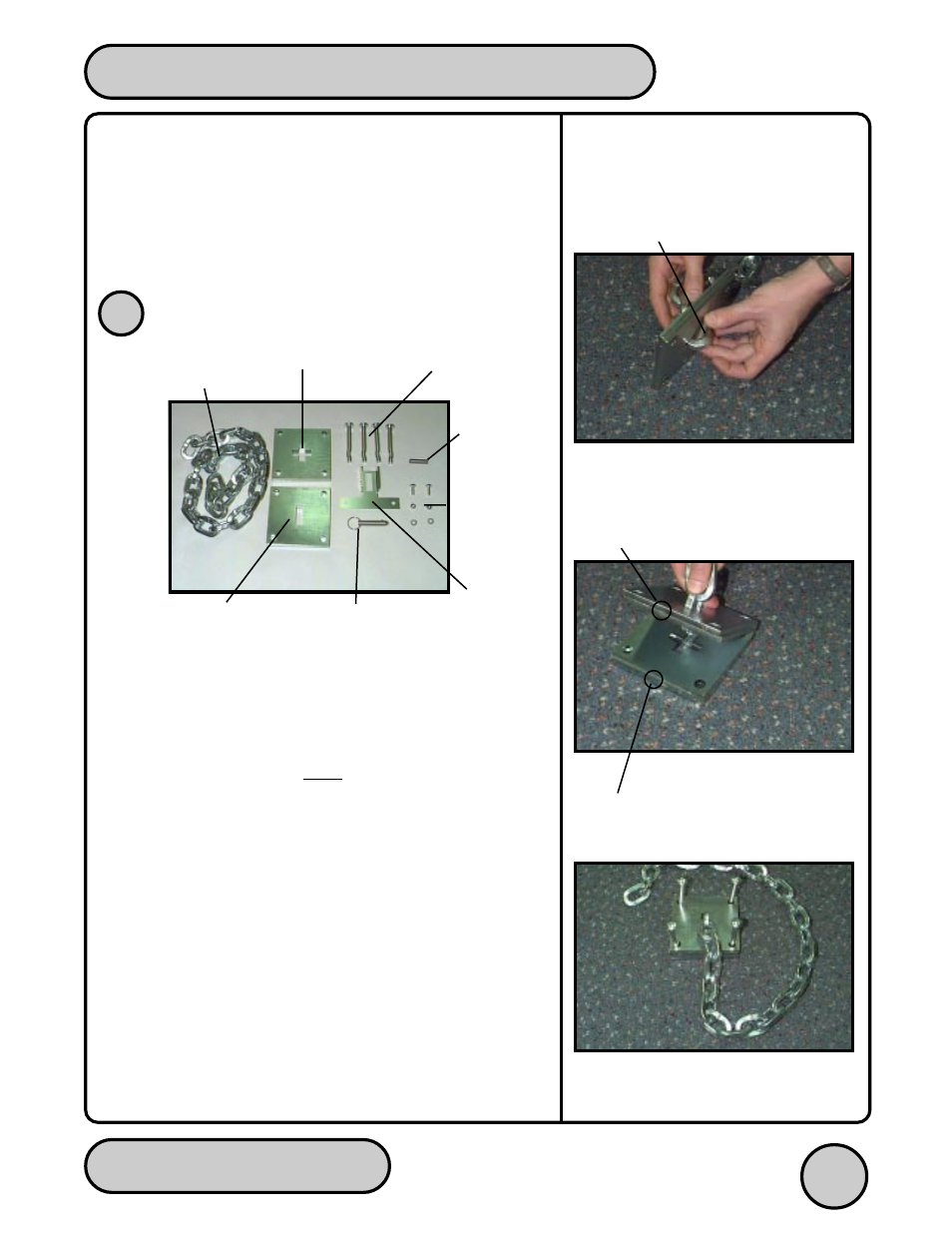

The components of the optional security chain installa-
tion kit are shown in Figure 8.
Assemble two stacks of chain anchor plates. First, as-
semble a stack using the three “plus” plates and set
aside. Next, place two (NOT THREE) “minus” plates
together, ensuring the slots are aligned in the same di-
rection, and place one of the end links of the chain par-
tially through this slot. (Figure 9)
Slip the short metal dowel rod through the loop in the
chain, as shown, and hold the assembly so that the chain
is held in position. Finally, place the stack of “minus”
plates (with the attached chain) on top of the stack of
“plus” plates, aligning the slots so that the two parts fit
together, forming a single stack. (Figure 10)
When moving the plates (as directed in the next step)
be sure to keep a firm hold on the stack as you move it
into position.
5
Fig. 11
Fig. 9
Dowel Rod
Fig. 8
“Plus” Plates (3)
“Minus” Plates (3) Ring Pin
Security Chain
Pin
Bracket
1/4” Screws,
Nuts, and
Washers -
2 ea.
Dowel
Mounting
Stakes
Fig. 10
Use Only TWO “MINUS” Plates!
Use THREE “PLUS” Plates.
