TRITON SYSTEMS, INC.
MAKO CASH DISPENSER PEDESTAL INSTALLATION GUIDE
Follow these steps to install the Mako unit:
DETERMINE PEDESTAL LOCATION

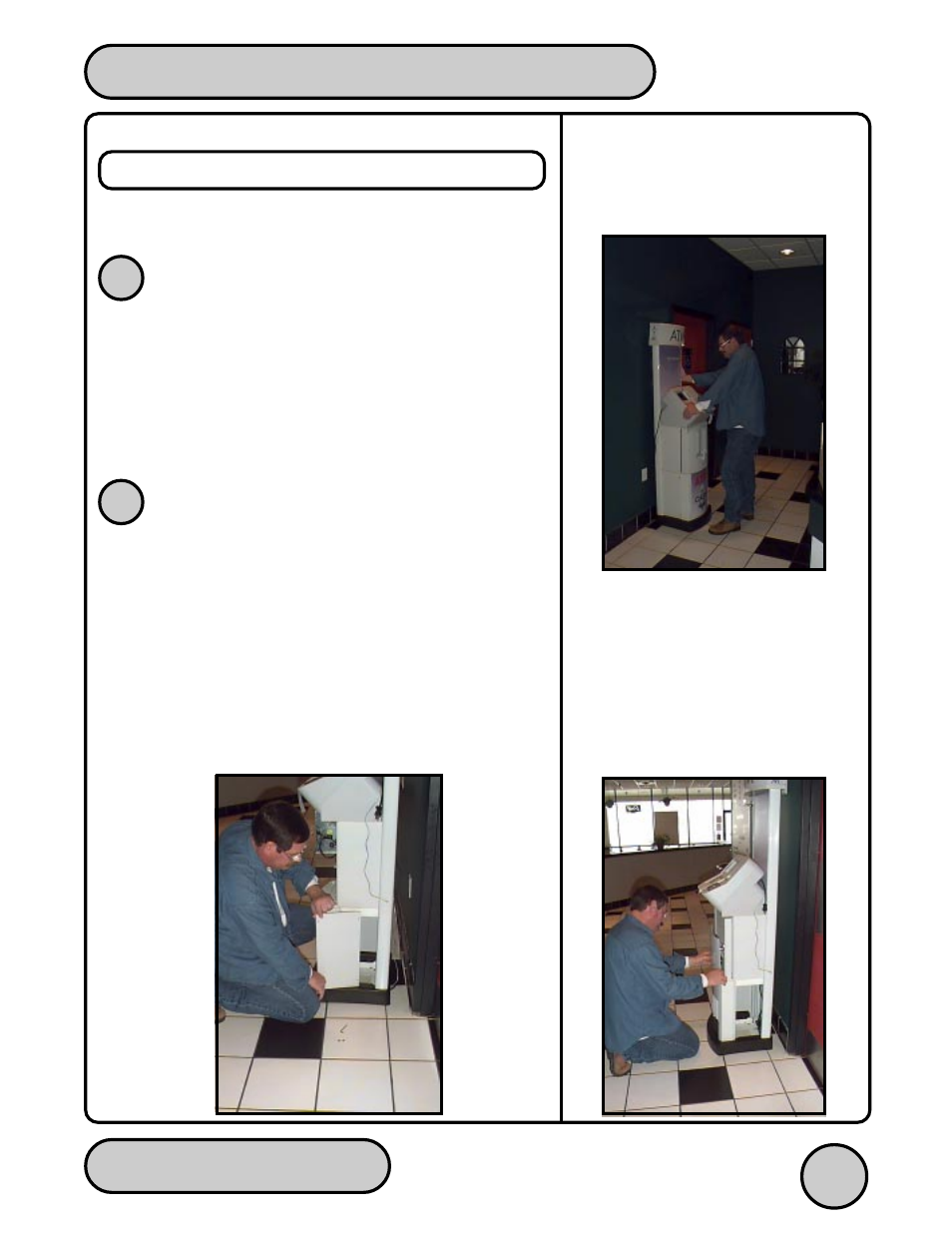

Move the pedestal assembly to the location where it
will be installed (See Figure 1). Ensure there are no
obstructions that would prevent access to the interior of
the lower pedestal enclosure (you will be removing the
front panel and one of the side panels in the next step).
REMOVE LOWER ENCLOSURE PANELS
Select one of the side panels for removal. Using the
provided torx-key tool, remove the two tamper-resis-
tant fasteners that secure the selected side panel to the
pedestal frame. Tilt and slide the panel out of its slotted
supports. (See Figure 2)
Open the door of the security cabinet and slide the front
panel(and optional graphics panel, if installed) up and
out of the slotted supports. (See Figure 3)
