Triton RL331X TRAVERSE User Manual User Manual
Page 31

4-3
G
ENERAL
M
AINTENANCE

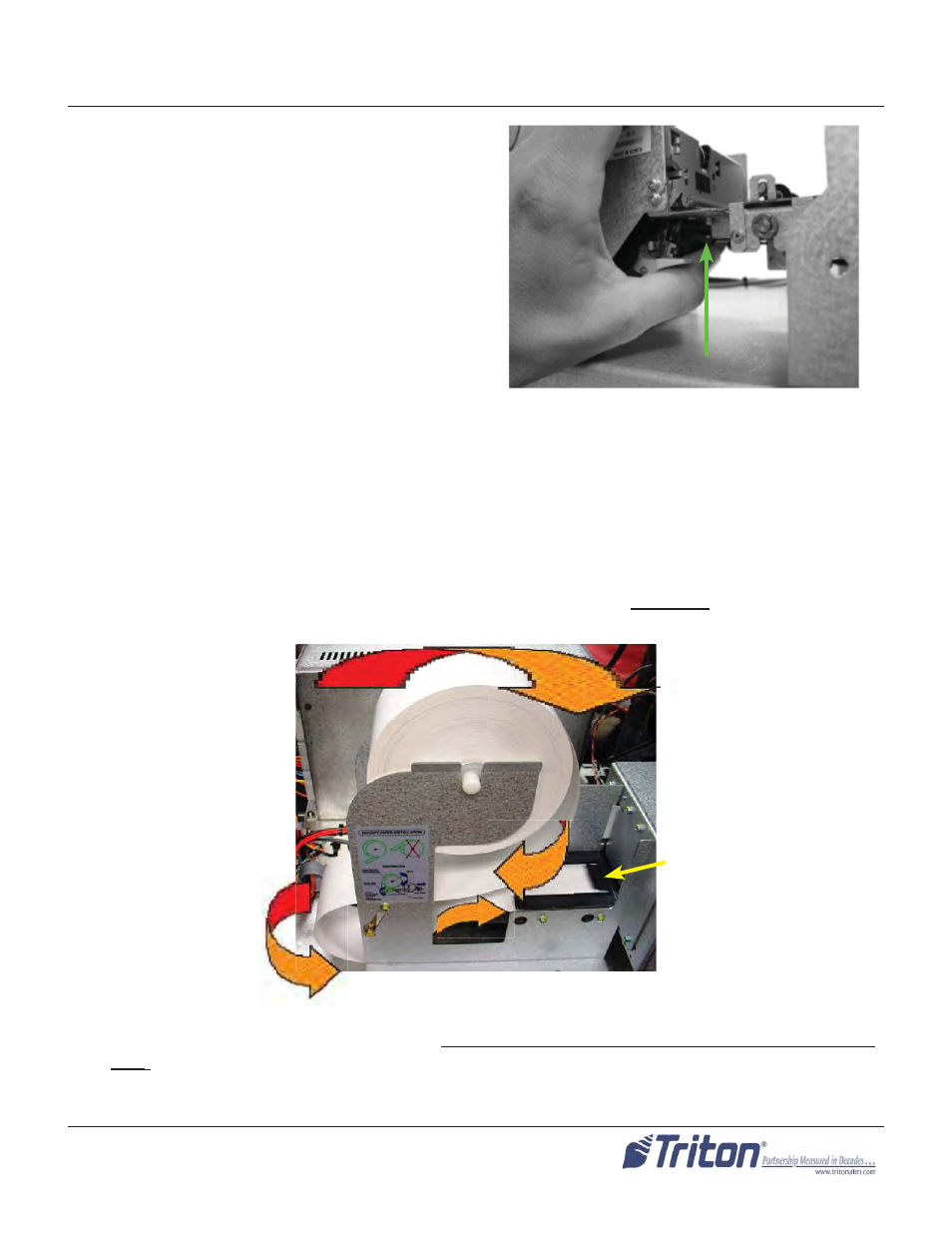

5. Remove the tab securing the end of the new paper roll to itself. Use scissors to cut off all of the paper
up to and including the glue tab, producing a clean square cut.
6. Remove the plastic spindle from the old paper roll and insert into the new roll of paper. Use a 5 inch roll
of 58 mm wide thermal paper, printer applicable, with a small center. Replacement paper is available
from Triton.
7. Be sure the spindle is inserted so that the paper will feed from the BOTTOM of the roll when it is
installed on the paper bracket and facing the rear, where it will curl back under the tension bar.
8. Place the new roll back on the paper bracket by sliding the small, slotted end of the spindle onto the
slot in the bracket as shown. Note that the paper feeds from the BOTTOM of the roll, toward the
rear!
3. Return the Green lever back to the Up position,
ensure it clicks securely. You may push up on
the print roller to aid in this operation.
4. Remove the paper and spool from the paper bracket.
Front
Rear
Paper Guide
