Description

Tilton Master Cylinders are engineered to provide optimum performance at a moderate cost.
There are many configurations that can be assembled with the wide range of components.
The master cylinders are made of lightweight aluminum and have a black anodized coating
to prevent wear and corrosion. Two reservoirs are included in the kit; 7.0 ounce and 4.0 ounce.
Also included are a 3/16" inverted flare fitting and AN-3 line adapter. Tilton master cylinders
set the standard for the industry and are a direct replacement for master cylinders that have a
2.25" spaced, 2-bolt mounting pattern.

Installation notes

• Decide which reservoir size and style fits your application.
• The 4.0 ounce reservoir is recommended for clutch applications and brake systems used

in short races where brake pad wear is at a minimum.

• The 7.0 ounce reservoir is recommended for use on brake master cylinders when there is a

significant amount of pad wear during an event. They also have more reserve capacity in
the event of a fluid leak somewhere in the system.

• Mount the reservoirs above the calipers to prevent fluid bleed-back from the calipers to

the master cylinders.

• Make sure that all of the parts are clean before assembling.

installation

Master Cylinder

1. Remove the dust cover from the master cylinder reservoir opening.
2. Make sure that the o-ring is seated properly in the groove of the reservoir entry port on

the master cylinder body.

3. Apply a small amount of rubber grease (P/N: RG-17) onto the o-ring.
4. Do not damage the o-ring or move it out of position when installing the reservoir or the

remote fitting.

5. Slide the selected reservoir or remote fitting onto the master cylinder body along with

the wire clamp.

6. Place the wire clamp so that one wire of the clamp is above the o-ring and the other is

below the o-ring.

7. Do not over tighten the wire clamp or you may damage the reservoir or remote fitting. It

should be "snug."

8. Insert the reservoir filter into the reservoir properly by referring to Diagram 1.
9. Thread the reservoir cap onto the reservoir to keep dirt out.

10. Select the appropriate fitting for your application and attach this fitting to the master

cylinder body.

11. Mount the master cylinder on the vehicle.
12. Proceed to the Brake Bleeding section.

Master Cylinder with Remote Mount Reservoir

1. Determine the location for mounting the remote mounted reservoir.
2. The supplied rubber hose can be cut to length. Select the location for the remote

mounted bracket accordingly.

3. After selecting the location for mounting the remote reservoir, drill the two 1/4" diameter

mounting holes on 1.20" centers.

4. Install the remote-mounting bracket with the appropriate hardware.
5. Apply a small amount of rubber grease (P/N: RG-17) onto the o-ring on the remote fitting.
6. Do not damage the o-ring or move it out of position when installing the reservoir or the

remote fittings.

75-Series Master Cylinder Kits

INSTALLATION INSTRUCTIONS

98

-12

33

aBs WarninG:
This product is not designed for use with
ABS (anti-lock braking) systems.

MAX

MIN

MAX

MIN

AN3 Male-Male - 73-820

3/16” Flare Male - TE2089-188L

Hose (24") - 74-214

6.8 oz Reservoir Filter - 74-211

7.0 oz Reservoir - 74-203

Remote Mount Bracket - 74-212

Remote Fitting - 74-200

Clamp - 74-208

O-ring - 74-212-A

Pushrod - 75-030

4.0 oz Reservoir Filter - 74-210

4.0 oz Reservoir - 74-202

Cap - 74-207

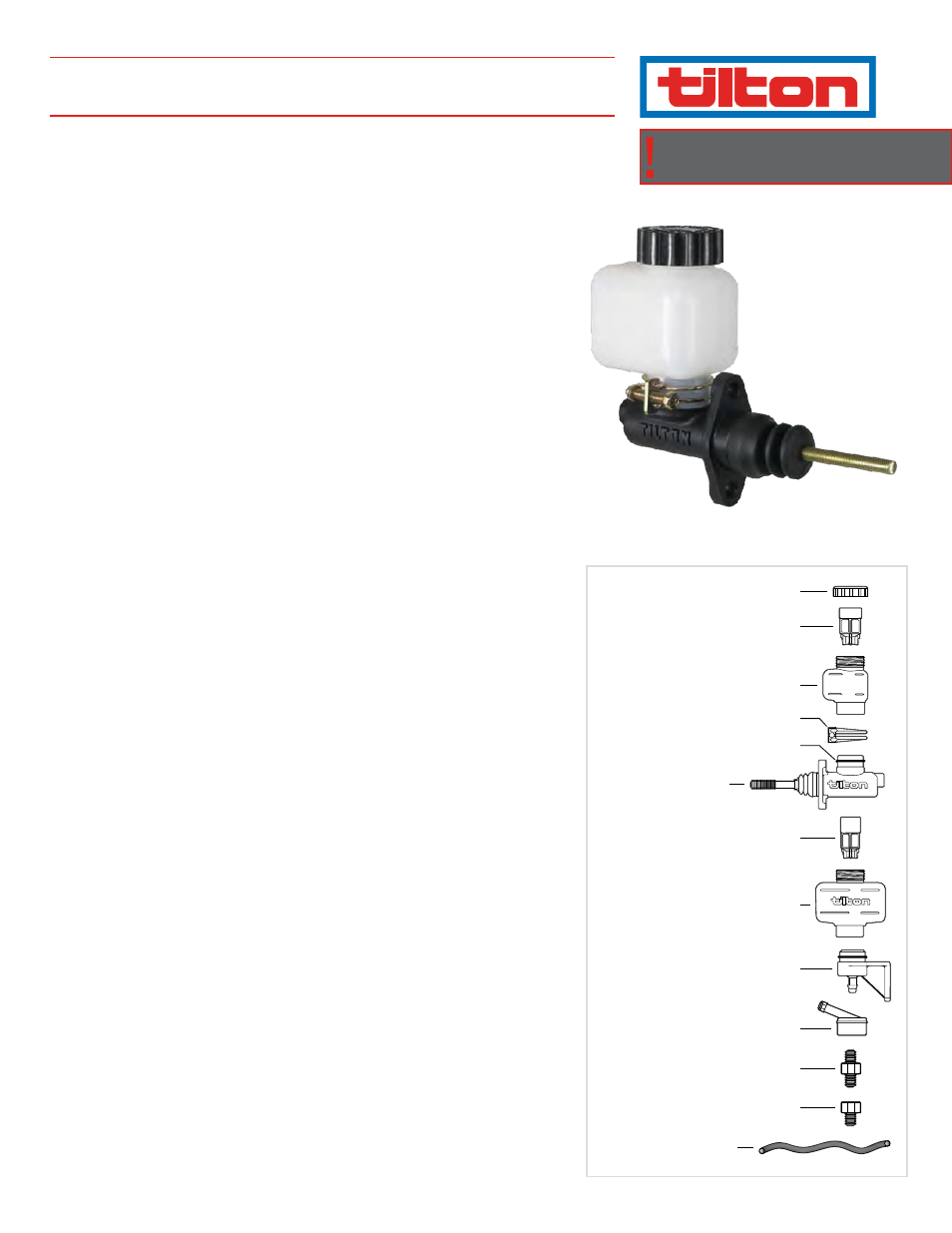

Diagram 1 -

Master Cylinder Kit and Replacement Parts
