6. Before connecting the unit to the power receptacle,
check to insure there is no leakage to ground. This can
be done by using an ohm meter and setting the scale to
its highest setting (i.e. Rx100K). Connect one ohmmeter
lead to the unit power cord ground (round prong) and
to one of the flat prongs. It should read infinite or at
least 2 mega ohms. Repeat with the other prong. If
reading is below 2 mega ohms on either prong contact
Customer Service Help Line listed at bottom of page.
7. Do Not Operate System on an Extension Cord. If no
power is accessible at the pond, contract a licensed
electrician to install the proper power supply in
accordance with National Electric Code and all
applicable local codes and ordinances.
8. After installing the unit, checking ground and
connecting power to the unit, the unit can be powered
up. Check operation of the GFI by pushing the “Test”
button, the unit should stop. Pushing the “Reset” button
should restart the unit. If pressing the “test” button
does not stop the unit, immediately shut off power to
unit and contact Customer Service Help Line listed at
bottom of page.

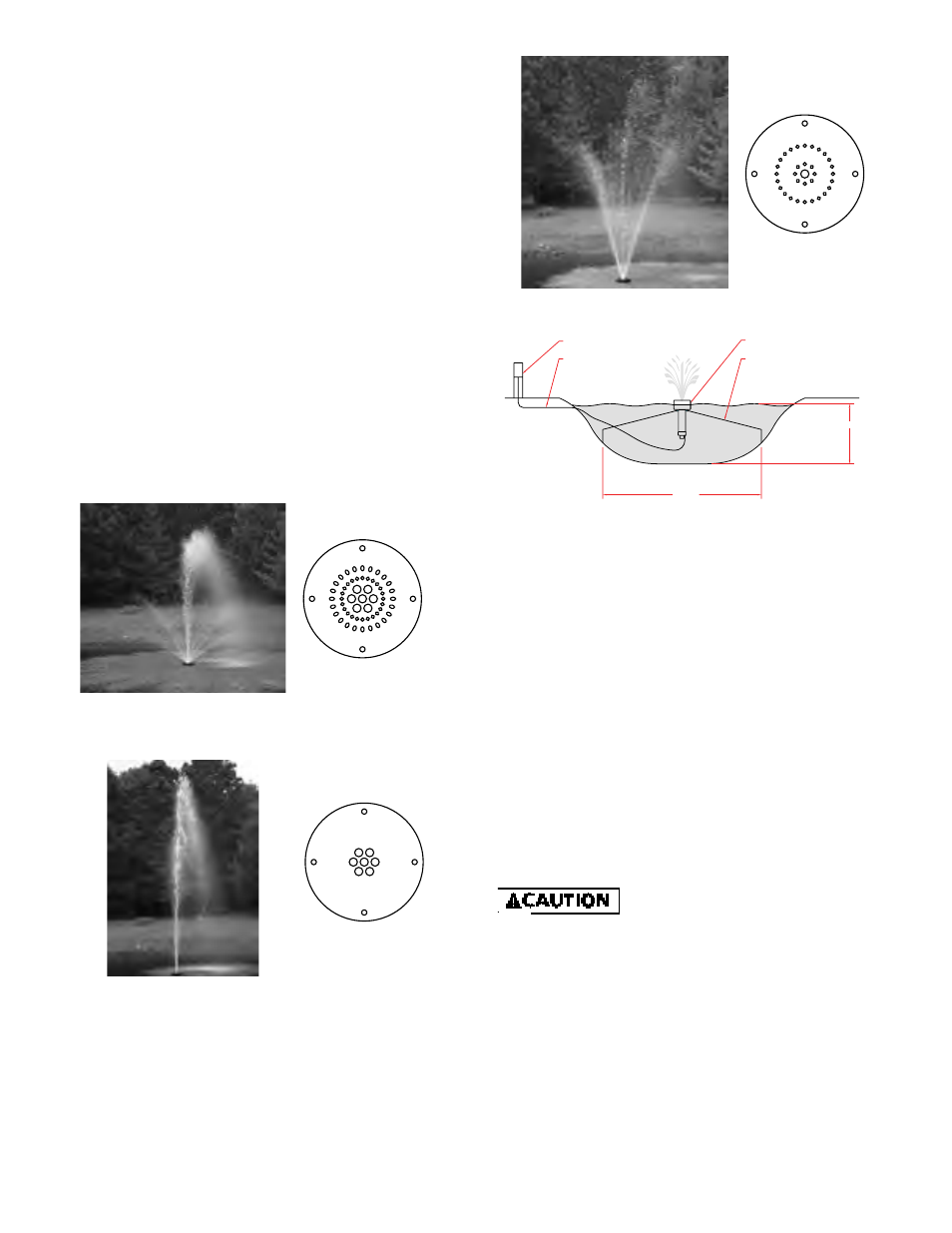

NOZZLE PATTERNS
Th
is
si
de
up
Figure 1: Water Lily - An eye-catching combination spray.
Item #2A
Th
is
si
de
up
Figure 2: Sky Cannon - A dramatic single plume of water.
Item #2B
Th
is
si
de
up
Figure 3: Water Trumpet - A symmetrical inverted bell shape.
Item #2C
L0535
Pond Pump Float
Nylon rope secured to weights
can be attached to stakes on
shore. 2 Required.
5 Feet Minimum Depth
Approved outdoor grounded
receptacle with GFI protected plug
Power cord may require
burial. Refer to local codes
15 - 20
Feet
Figure 4: Typical Installation
INSTALLATION CHECK LIST

Read installation instructions and warnings

Post appropriate warning signs

Install desired spray nozzle
 Install and anchor unit in pond

Check insulation resistance to ground

Power up unit
 Test operation of GFI by pressing the “Test” Button.

File instructions for future reference
REQUIRED TOOLS & SUPPLIES
• #2 Phillips screwdriver
• Nylon rope to anchor unit
• Stakes or weights for anchoring unit
• Ohm meter to check insulation resistance to ground
WINTER STORAGE
• Rinse unit with clean water to remove any build-up on
unit.
• Check unit for any damage.
• Store unit in heated space in freezing climates.
The pump motor is water lubricated and is factory filled
with an antifreeze solution. During operation the antifreeze
may exchange, thru the filtered check valve, with the pond
water. In climates where freezing may occur, the unit must
be stored in a heated storage space to prevent damage to
the motor.
