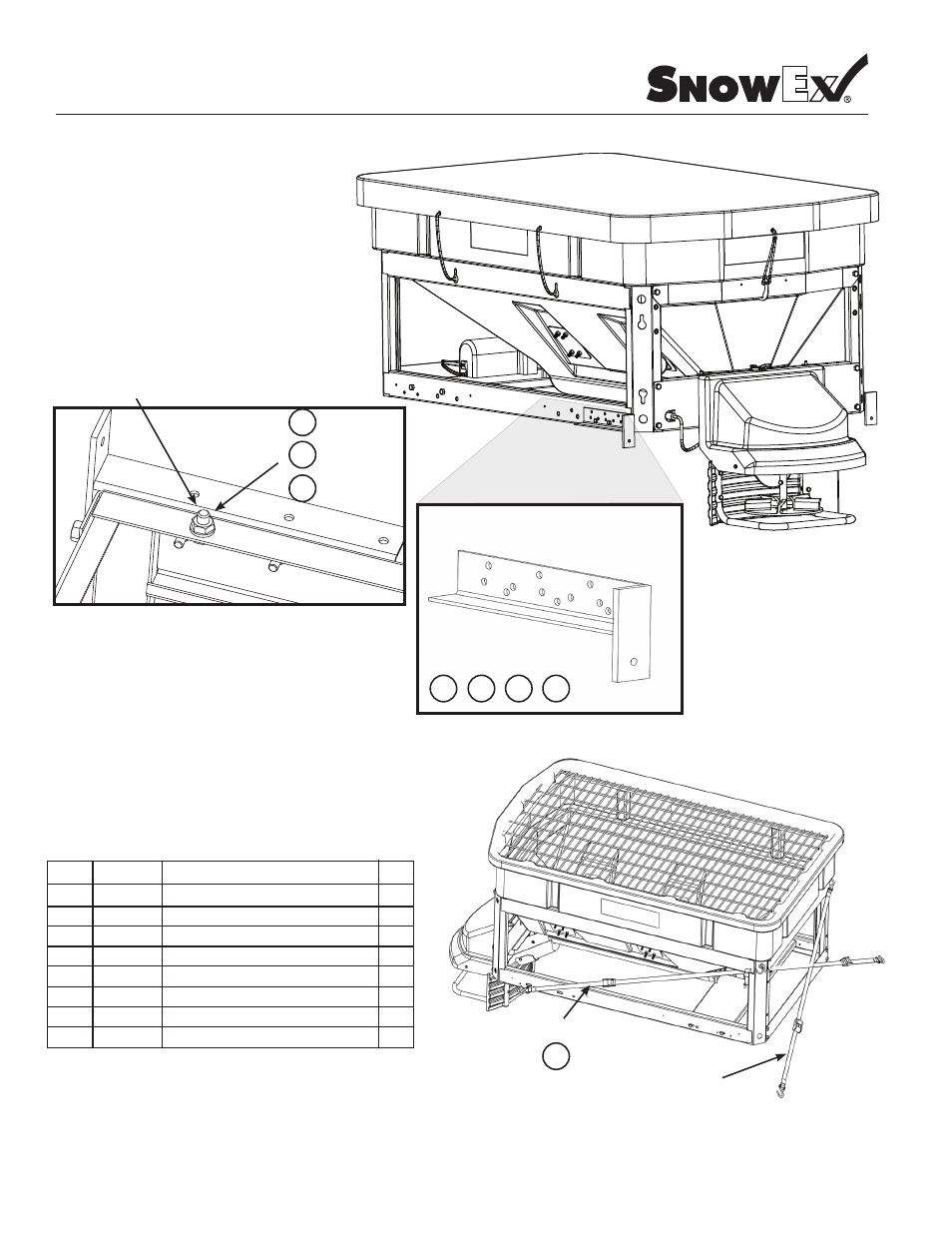

Mounting System Diagrams
Model # SP-7550
Key Part No. Description Qty
1 D4116 Bolt | 1/2”-13 X 1-1/2” 4
2 D4119 Washer | 1/2” Flat 4
3 D4120 Nut | 1/2”-13 Nylox 4
4 D4121 Bolt | 3/8”-16 X 1” 4
5 D4124 Nut | 3/8”-16 Nylox 4
6 D6536 Adjustable Stop Bracket | Right 1
7 D6537 Adjustable Stop Bracket | Left 1
8 D6856 V-Maxx Ratchet Straps 4
5 6 7
8
1
2
3
4
Figure 2 : Frame Mounting Bolts
Figure 1 :
Through Floor/Bed Mounting Bolts
Rear Stop LT & RT
Side Strap On Each Side
Cross Front Straps
