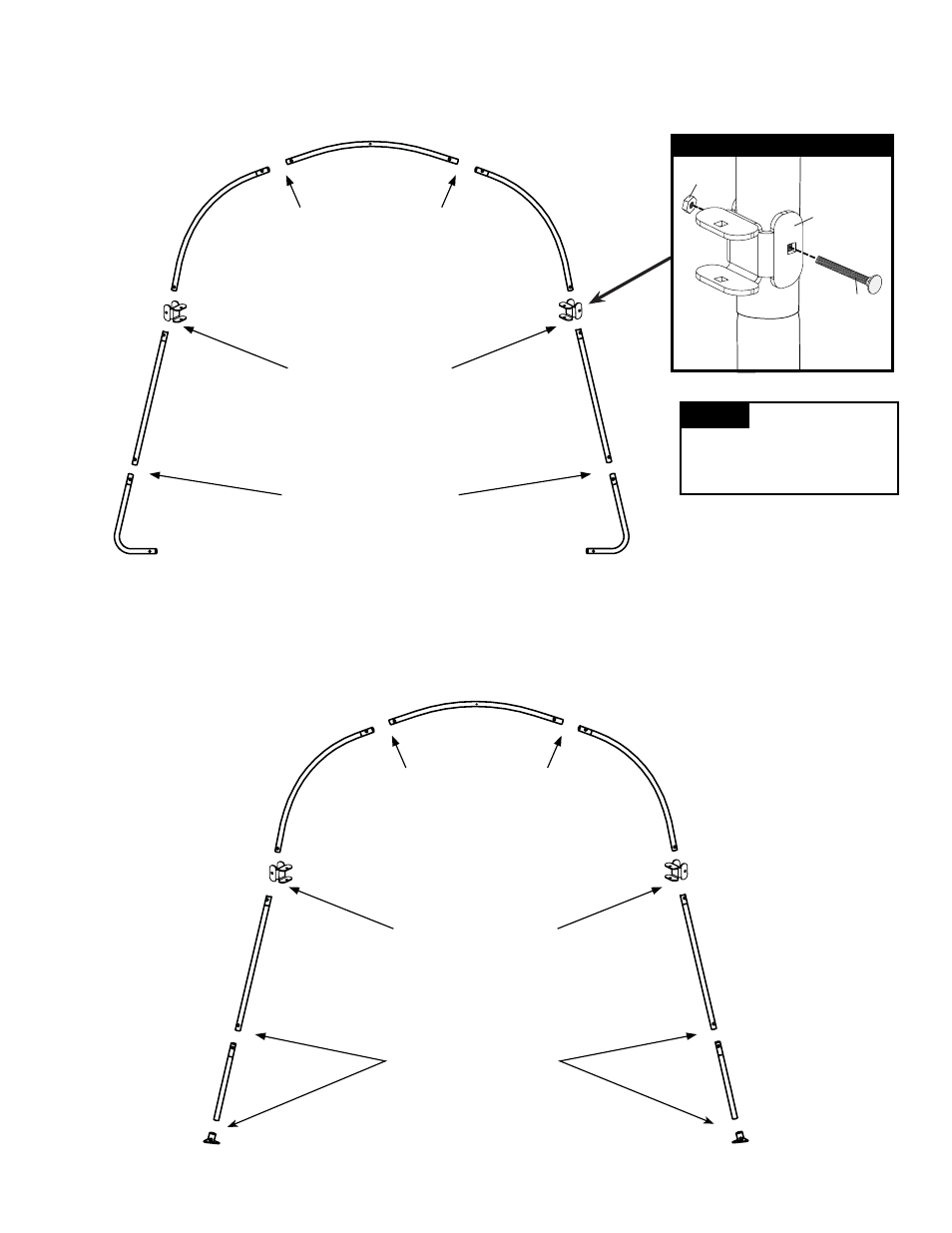

1. AsseMBle enD RIBs
2. AsseMBle MIDDle RIBs
800958
800923
800923
12270
12270
800921
800921
800920
800919
800920
800939
800939
800939
800939
800921
800921
800958
ShelterLock
®
Connection
Secure connections using Bolts as shown with #01010 Nuts.
800919
800920
800920
800920
800921
800939
03032
01010
#10115 Bolts (1
5
/
8
")
#10115 Bolts (1
5
/
8
")
#03032 Bolts (1
7
/
8
")
#03032 Bolts (1
7
/
8
")
#10115 Bolts (1
5
/
8
")
#10115 Bolts (1
5
/
8
")
noTe:
The bolt heads at
the end ribs must be facing
outward to avoid damaging
your cover.
