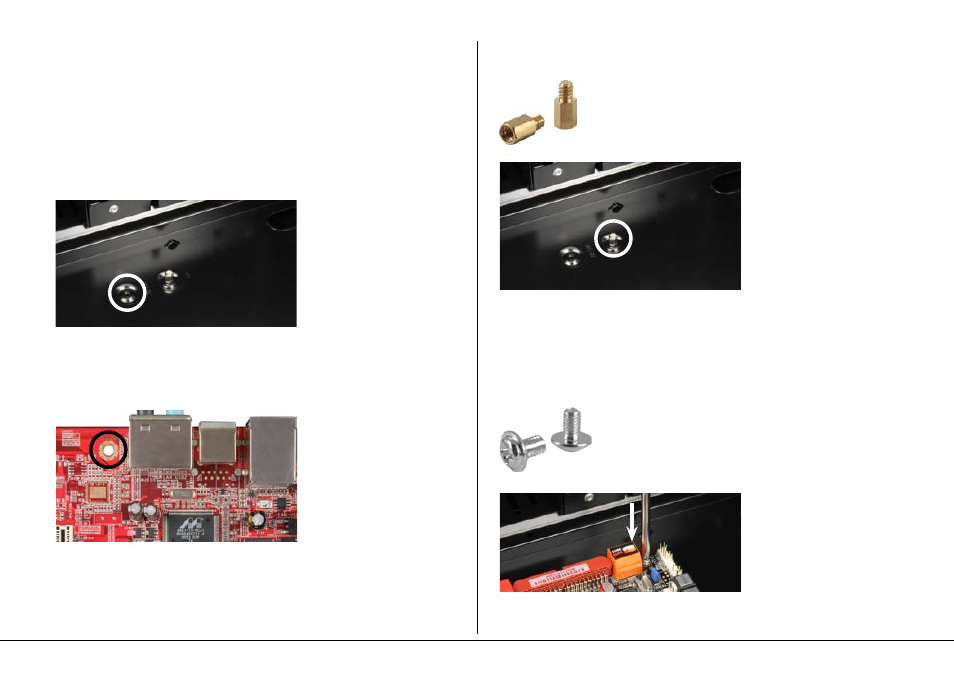

3. Remove the mainboard and screw the stand-offs into the respective drillings
of the mounting panel (fig. 3).
(Stand-offs)
fig. 3
4. Press the I/O shield (delivered with the mainboard) into the I/O shield
opening in the case’s back side.
5. Place the mainboard back onto the stand-offs and screw the mainboard to
them (fig. 4).
(Screws for mainboard mounting)
fig. 4
Note:
For more information on how to install the intended devices, refer to their
respective documents.
5. installation of a mainboard
1. Open the case by loosening the thumb screws on the case’s back side and
removing the left side panel. Lay down the case sidewise on an even surface.
2. The mainboard’s mounting panel inside the case provides various drillings to
fix the stand-offs (fig. 1).
fig. 1
The mainboard contains special screw openings (fig. 2).
fig. 2
Place the mainboard to the mounting panel. A stand-off must be screwed
into every drilling of the mounting panel visible through the mainboard’s
screw openings.
