bandit

5. Connect the 3.5" device to the power supply and the mainboard.

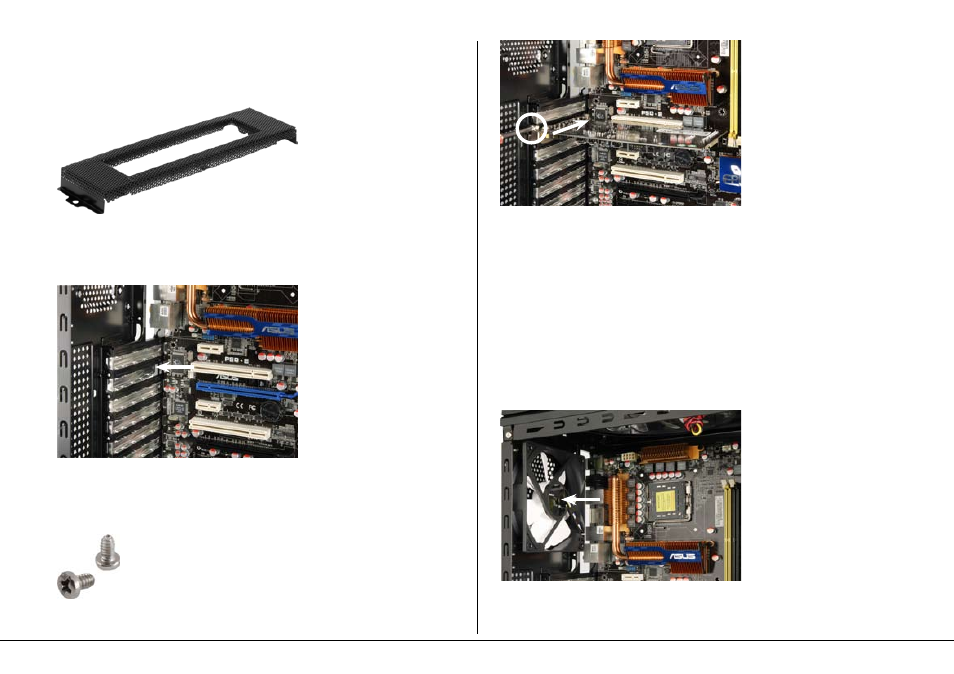

6. Screw the 5.25" bezel with 3.5" opening into the front panel and place it back
onto the case.

(5.25" bezel with 3.5" opening)

10. installation of an add-on card

1. Press the slot bezel out of its attachment (fig. 25).

fig. 25

2. Insert the add-on card into the mainboard’s respective slot and screw it to
the case (fig. 26).

(Screw with coarse thread)

fig. 26

11. the pre-installed fans

1. The pre-installed case fans provide a 4-pin PSU connector and a 3-pin
mainboard plug each.
2. Connect one of both plugs to either the respective PSU or (to control the fan
speed via the mainboard) the matching mainboard connector.

12. installation of additional fans / optimized airflow

1. Place the fan against the respective bracket from the inside (e.g. the back
side / fig. 27).

fig. 27
