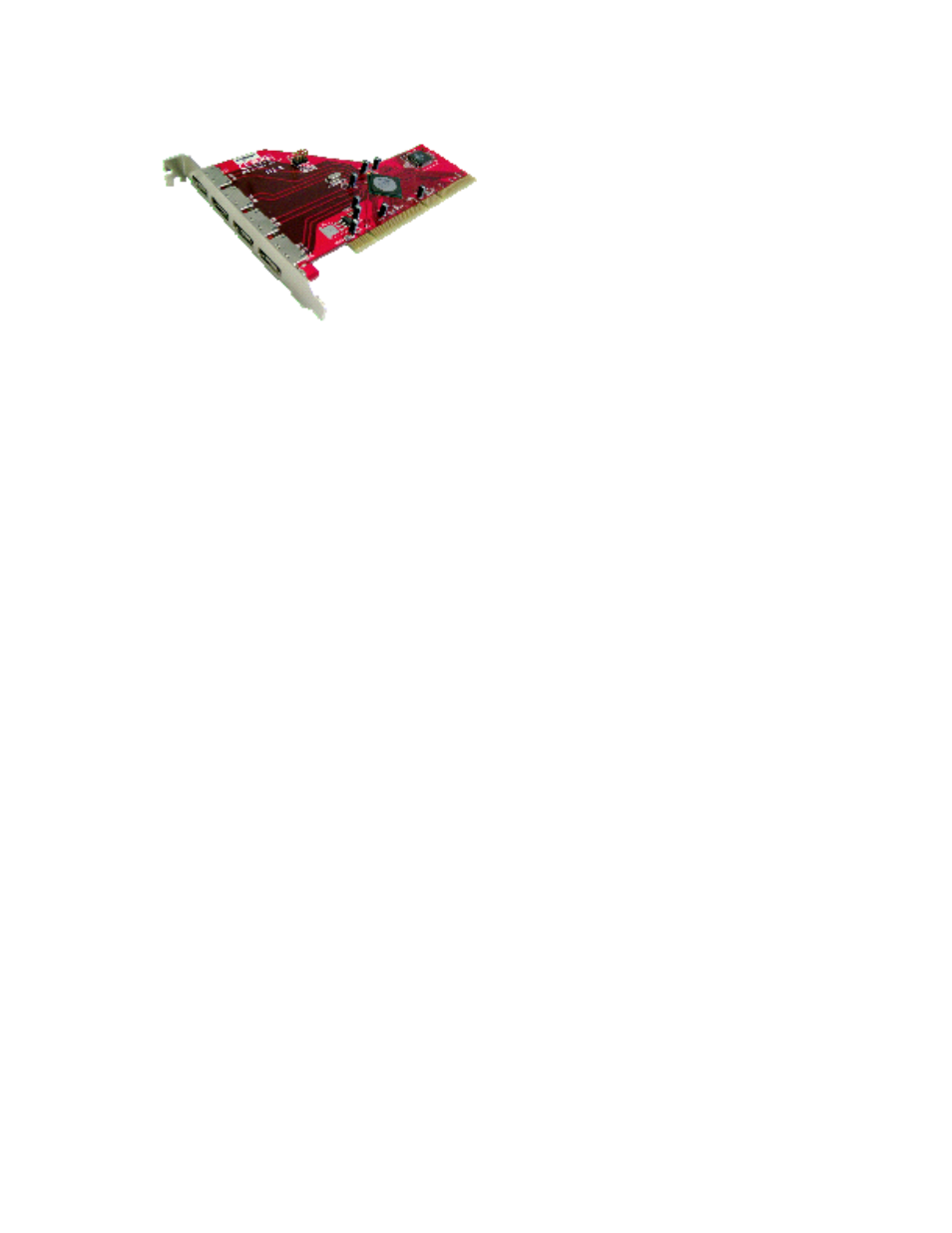

Addonics ADS3GX4R5-EM Macintosh Instructions

The ADS3GX4R5-E has been tested on a PowerMac G5 Dual 2.0
GHz model with PCI-X slots and as low as a PowerMac G4 400
model with PCI slots. Mac OS X 10.4.x or later is required for the
driver to work properly.

Hardware Install:
1. Turn the PowerMac G4 or G5 off and disconnect all cables.
2. Make sure that you are grounded to avoid static electricity.
3. Open the PowerMac G4 or G5.
4. Install the four port ADS3GX4R5-EM in an open PCI or PCI-X slot.
5. Secure the bracket with a screw.
6. Close the PowerMac G4 or G5 and reconnect the cables.
7. Turn on the computer.

Software Driver Install:
1. Copy the SiI3124_2.0.1_Sil_Pkg from the CD to your hard drive.
2. Decompress the zip file by double clicking on it.
3. Launch the SiI3124_2.0.1_Sil_Pkg.
4. Press continue and accept the license.
5. Select your startup drive as the install destination volume.
6. Push continue and the install button.
7. Type in your password to complete the installation.

Usage:
The SiI3124_2.0.1_Sil_Pkg Macintosh driver supplied with the
Addonics ADS3GX4R5-EM SATA host adapter is designed to provide
direct connect and SATA port multiplier compatibility on all four ports
with an Apple PowerMac G4 or G5 running Mac OS X 10.4.x.
