Fitting the caster bar

and side bar

You need the following connecting elements for this
assembly step:

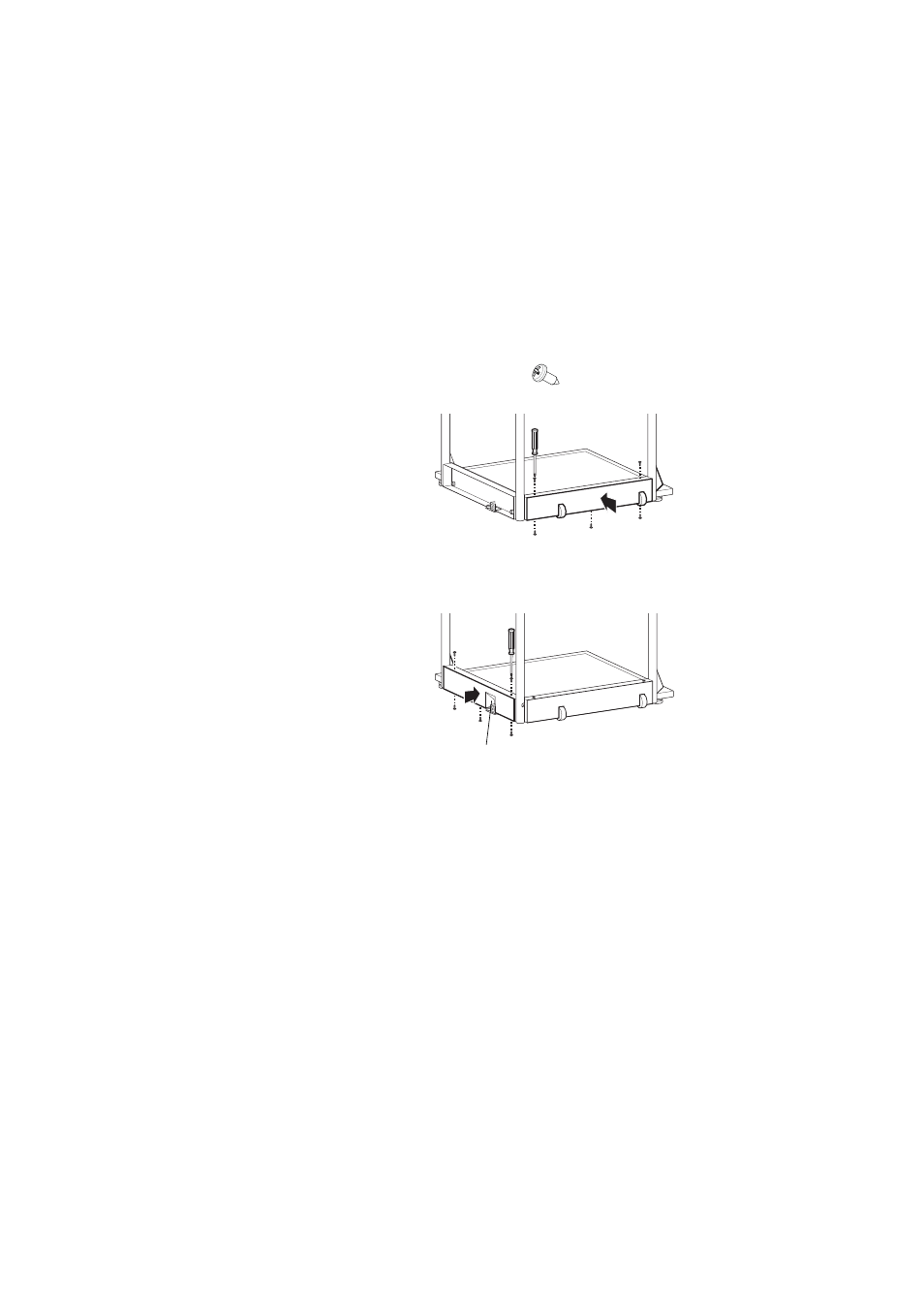

1. Place the caster bar on the rear handrail support as

shown in the diagram above.

2. Fix the caster bar to the rear handrail support with 5

pan-head tapping screws.

3. Repeat steps 1. and 2. to fit the side bar to the

right-hand handrail support.

10 x pan-head tapping screws 3.5 x 9.5
