520-199-000 1/01 Model S1F Non-Metallic Design Level 2 Page 30

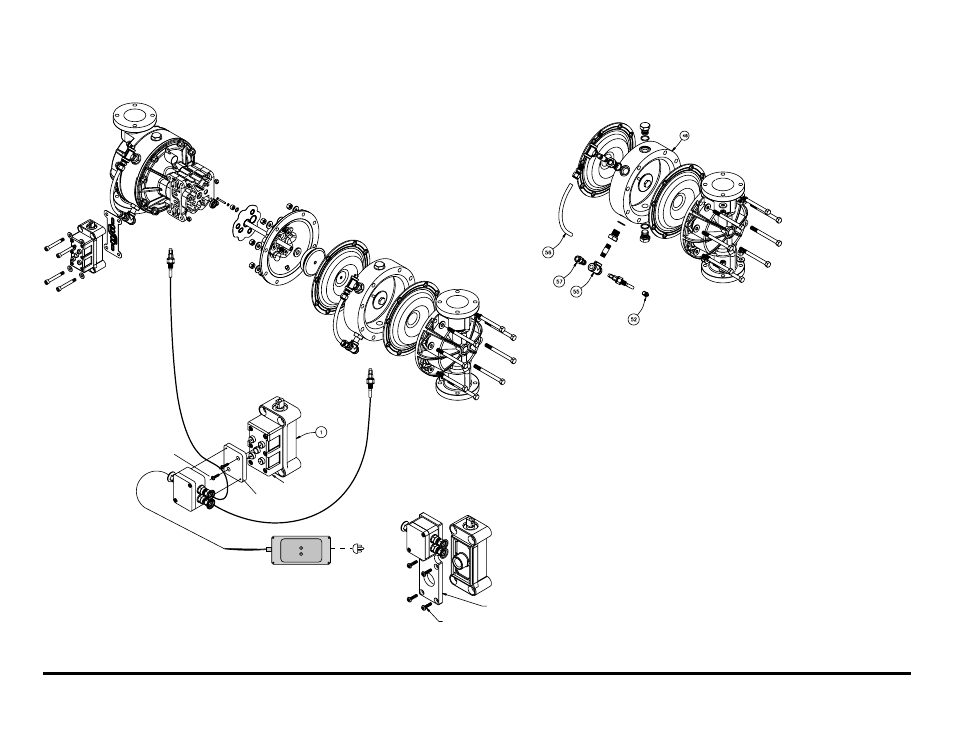

Leak Detection Options Drawing
RuppTech® LEAK DETECTION OPTION A (ELECTRONIC)
Follow instructions found elsewhere in this manual, “Filling the
RuppGUARD™ Spill Prevention Chambers” when installing leak
detectors.
Electronic Leak Detector Installation
Kit 032-033-000 110VAC
Kit 032-034-000 220VAC
To install electronic leak detectors, remove the bottom ¼" NPT
pipe plug on the visual sight tube (item 56). Insert leak detector into
the ¼" pipe tee (item 55).
LEAK DETECTION OPTION B (MECHANICAL)
Follow instructions found elsewhere in this manual, “Filling the
RuppGUARD™ Spill Prevention Chambers” when installing leak
detectors.
Mechanical Leak Detector Installation
Kit 031-023-110
To install mechanical leak detectors, remove the bottom ¼" NPT
pipe plug on the visual sight tube (item 56). Insert leak detector into
the ¼" pipe tee (item 55).
MUFFLER CAP
For pumps with
530-030-550
ENCLOSED MUFFLER
710-014-330
Self-tapping Screws
(Qty of 4)
612-187-552
Mounting Plate
For pumps with
ALTERNATE MUFFLERS
710-009-115
Self-tapping Screws
(Qty of 4)
612-186-552
Mounting Plate
