520-199-000 1/01 Model S1F Non-Metallic Design Level 2 Page 14
RuppGUARD ™ Option for
Virgin PTFE Equipped

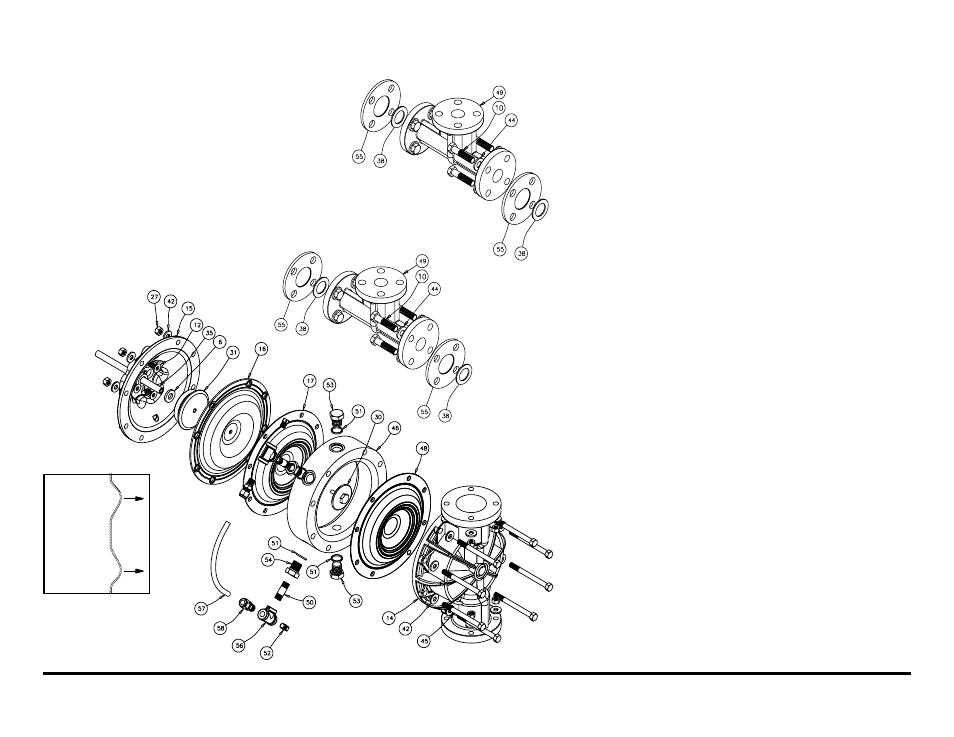

Pumps Drawing
S1F Spill Prevention Repair Parts List for Virgin PTFE Equipped
Pumps
Item Part Number
Description Qty
45 170-114-115 Capscrew, Hex Hd 3/8-16 x 4.25 16
(replace 170-020-115, qty 16 of 32)
170-114-308 Capscrew, Hex Hd 3/8-16 x 4.25 16
(replace 170-020-115, qty 16 of 32)
46 196-159-552 Chamber, Spill Prevention 2
196-159-600 Chamber, Spill Prevention 2
48 286-094-600 Diaphragm, Pumping 2
49 518-137-520 Manifold, Spill Prevention 2
(replace 518-136-520)
518-137-520E Manifold, 25mm DIN 2
518-137-542 Manifold, Spill Prevention 2
(replace 518-136-542)
518-137-542E Manifold, 25mm DIN 2
518-137-552 Manifold, Spill Prevention 2
(replace 518-136-552)
518-137-552E Manifold, 25mm DIN 2
50 538-022-110 Nipple, Pipe 4
538-022-308 Nipple, Pipe 4
51 560-078-611 O-Ring 8
52 618-003-110 Plug, Pipe 4
618-003-308 Plug, Pipe 4
53 618-025-110 Plug, Boss 4
618-025-308 Plug, Boss 4
54 618-031-110 Plug, Boss 4
618-031-308 Plug, Boss 4
56 835-005-110 Tee, Pipe 4
835-055-308 Tee, Pipe 4
57 860-056-606 Tube, Sight 2
58 866-060-110 Connector, Tube 4
38 720-056-600 Seal, Manifold (Replaces 720-044-600) 4
720-057-600 Seal, Manifold (PVDF only) 4
(Replaces 720-044-600)
55 770-064-520 Spacer, Manifold (Replaces 770-062-520) 4
770-064-552 Spacer, Manifold (Replaces 770-062-552) 4
*Note: The diaphragm is to be installed with the convex
side facing toward the outer chambers. See drawing.
Note:
Item 48
The diaphragm
is to be
installed with
the convex
side facing
toward the
outer
chambers.
