SANDPIPER S1F Non-Metallic - Manual (Page 14)

520-199-000 1/01 Model S1F Non-Metallic Design Level 2 Page 12

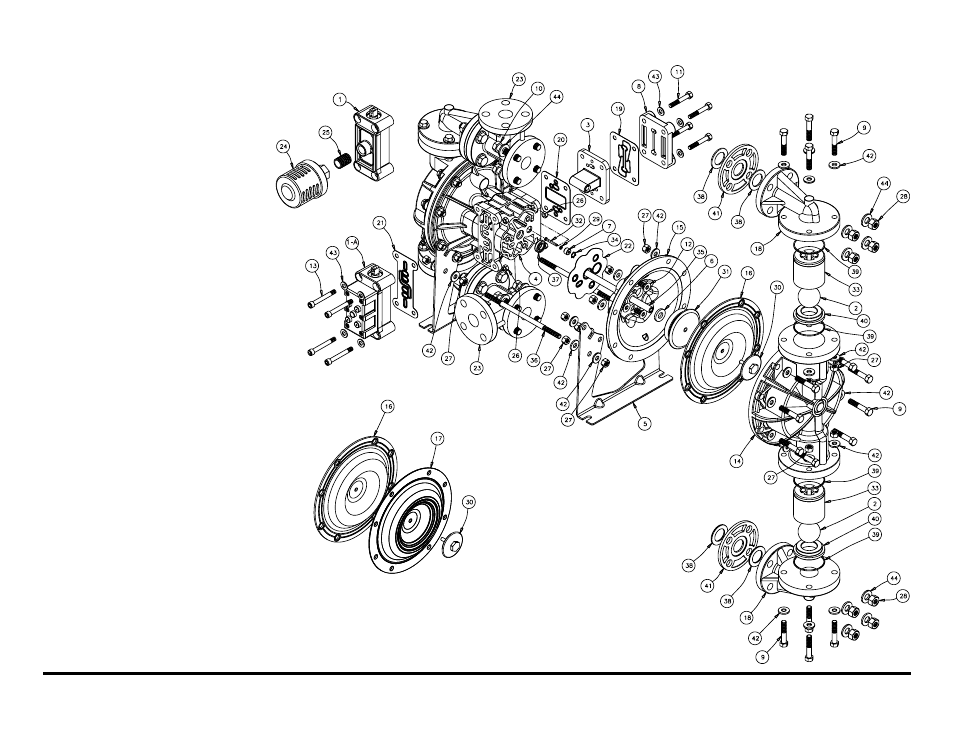

Overlay Option Drawing
Muffler Option
Drawing
Composite Repair Parts Drawing
AVAILABLE SERVICE AND CONVERSION KITS
476-191-000 AIR END KIT
Seals, O-rings, Gaskets,
Retaining Rings, Air Valve Sleeve &
Spool Set and Pilot Valve Assembly
476-193-000 AIR END KIT (for Stroke Indicator Option)
Seals, O-rings, Gaskets, Retaining
Rings, Air Valve Sleeve & Spool Set
and Pitot Valve Assembly.
476-145-354 WETTED END KIT
Santoprene Diaphragms,
Santoprene Balls and PTFE Seals.
476-145-654 WETTED END KIT
Santoprene Diaphragms, PTFE Overlay
Diaphragms, TFE Balls
and TFE Seals.
476-146-655 WETTED END KIT (for Polypropylene
RuppGuard™)
Santoprene Diaphragms, PTFE Overlay
Diaphragms, PTFE Pumping Diaphragms,
PTFE Balls and PTFE Seals.
476-184-655 WETTED END KIT (for PVDF
RuppGUARD™)
Santoprene Diaphragms, PTFE Overlay
Diaphragms, PTFE Pumping Diaphragms,
PTFE Balls and PTFE Seals.
476-146-354 WETTED END KIT (for Polypropylene
RuppGUARD™)
Santoprene Diaphragms, Santoprene Pumping
Diaphragms, Santoprene Check Balls & PTFE
Seals.
476-184-354 WETTED END KIT (for PVDF
RuppGUARD™)
Santoprene Diaphragms, Santoprene Pumping
Diaphragms, Santoprene Check Balls & TFE
Seals.
HARDWARE KITS
475-175-308 PTFE Coated Stainless Steel
Capscrews, Hex Nuts, Washers and
Support Rod
475-176-308 (For use with RuppGUARD™ Spill Prevention
Options)
RuppTech® PULSE OUTPUT KITS
(For use with 530-007-000 and 530-025-000 Mufflers,
or piped exhaust)
475-198-016
DC Kit
475-198-017 DC Intrinsically Safe Kit
475-198-018 110/120VAC or 220/240VAC Kit
475-198-019 110/120VAC Intrinsically Safe Kit
475-198-020 220/240VAC Intrinsically Safe Kit
(For use with encapsulated 530-030-550 Muffler)
475-198-011
DC Kit
475-198-012 DC Intrinsically Safe Kit
475-198-013 110/120VAC or 220/240VAC Kit
475-198-014 110/120VAC Intrinsically Safe Kit
475-198-015 220/240VAC Intrinsically Safe Kit
RuppTech® ELECTRONIC LEAK DETECTOR KITS
032-033-000 110VAC
032-034-000 220VAC
