rs30mdl1sm-rev0614 Model RS30 Metallic Page 13
Composite Repair Parts Kits
Available Service And Conversion Kits

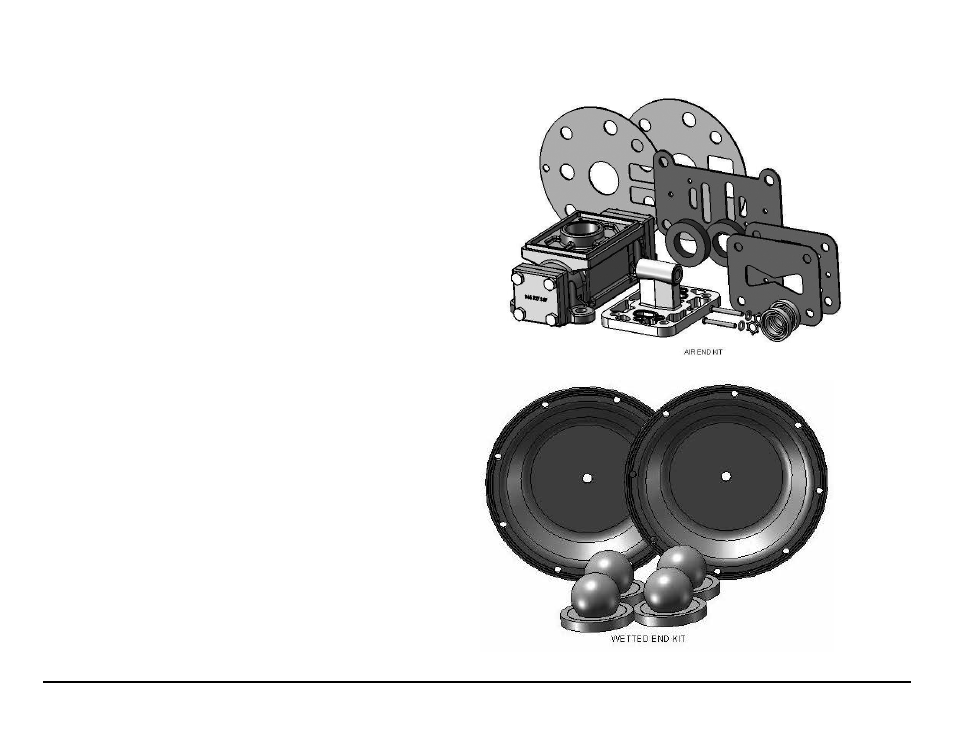

Air End Kit - 476.282.000 (RS30 Only)
Seals, O-rings, Gaskets, Retaining Rings, Air Valve
Assembly and Pilot Valve Assembly
Wet End Kit – 476.171.360 (RS30, S30 metal)
Nitrile Diaphragms, Balls and Seats
Wet End Kit – 476.171.364 (RS30, S30 metal)
EPDM Diaphragms, Balls and Seats
Wet End Kit – 476.171.365 (RS30, S30 metal)
Neoprene Diaphragms, Balls and Seats
Wet End Kit – 476.171.633 (RS30, S30 metal)
FKM Diaphragms, PTFE Balls and FKM Seats
Wet End Kit – 476.171.635 (RS30, S30 metal)
Neoprene Diaphragms, PTFE overlays, PTFE Balls and Seats
Wet End Kit – 476.171.654 (RS30, S30 metal)
Santoprene Diaphragms, PTFE Overlays, PTFE Balls and Seats
Wet End Kit – 476.171.656 (RS30, S30 metal)
Santoprene Diaphragms, Balls and EPDM Seats
Sensor Kit - 476.285.000
(Sensor, Probe Tips and O-rings)
Poppet Valve Kit – 476.271.000
(Poppet Valve Assembly, O-ring)
Poppet Valve Assembly Kit – 476.272.000
(Poppet Valve Assembly, O-ring, Regulator and Pilot Valve)
Cover Kit – 476.273.000
(Enclosures, Hardware and O-rings)
Control Module Kit – 476.275.000 (Power Gen AirVantage Only)
(Control Module Assembly, Gaskets, Hardware and O-rings)
Power Gen Kit – 476.278.000 (Power Gen AirVantage Only)
(Power Gen, Gasket, Hardware and O-ring)
Seal Kit – 476.280.000
O-rings and Gaskets
Probe Tip Kit – 476.283.000
(Probe Tips and O-rings)
Midsection Upgrade Kit – 475.XXX.000 Consult Factory
(Replaces S30 Metallic Midsection with AirVantage Components)
