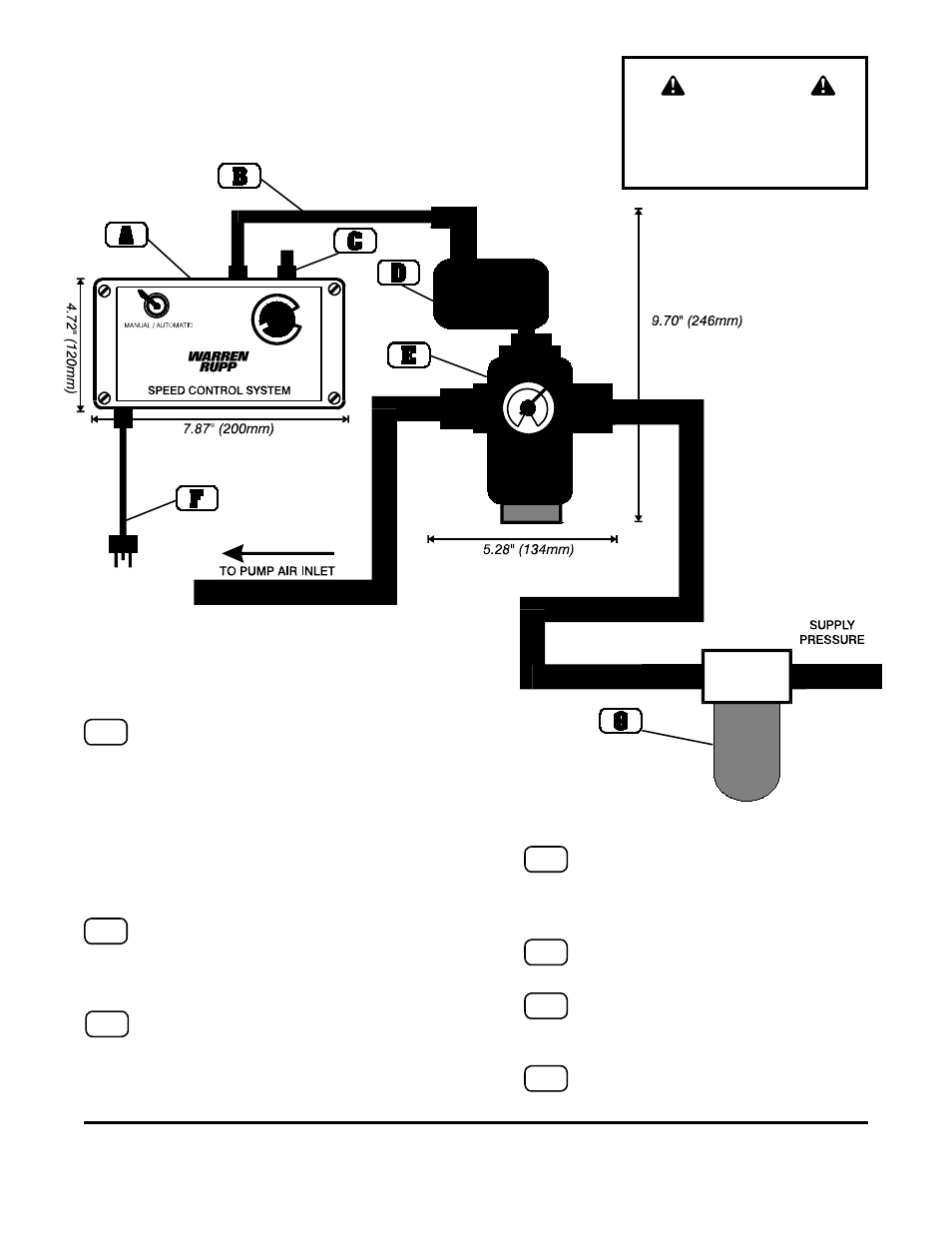

Installation Guide
NEMA 4X control box houses 110 or 220
VAC power supply; manual potentiometer;
and manual/automatic switch. In manual
mode, the on-board potentiometer is utilized.
In automatic mode, a remote connection
must be in place.
Part No. 032.022.000 - 110V
Part No. 032.023.000 - 220V
Power cord from control box to Electro-
pneumatic controller is supplied by the
manufacturer in 25' (7.62m) length. Cord is
22 AWG, 6 conductor.
For automatic mode, an optional 4-20mA
input signal connects here. Hole is punched
and drilled. The end-user provides remote
controller and 20-24 AWG, 2 conductor cord.
Electro-pneumatic control unit. Output
pressure is proportional to incoming
command signal. Maximum input pressure
is 125 psi.
Diaphragm type, air-piloted pressure
regulator, with 1" (25.4mm) port.
Power source. 110 or 220 VAC. End-user
supplies 16-18 AWG, 2 conductor power
cord.
40 micron fi ltration is recommended.
IMPORTANT
Consult and follow
all local codes
and requirements
when installing this unit.
A
C
B
D
E
F
G
