Solenoid
Air Valve
To Control
Solenoid Connector
#2 Terminal
Neutral
(Negative)
#1 Terminal
Power
(Positive)
3rd Terminal
for ground.

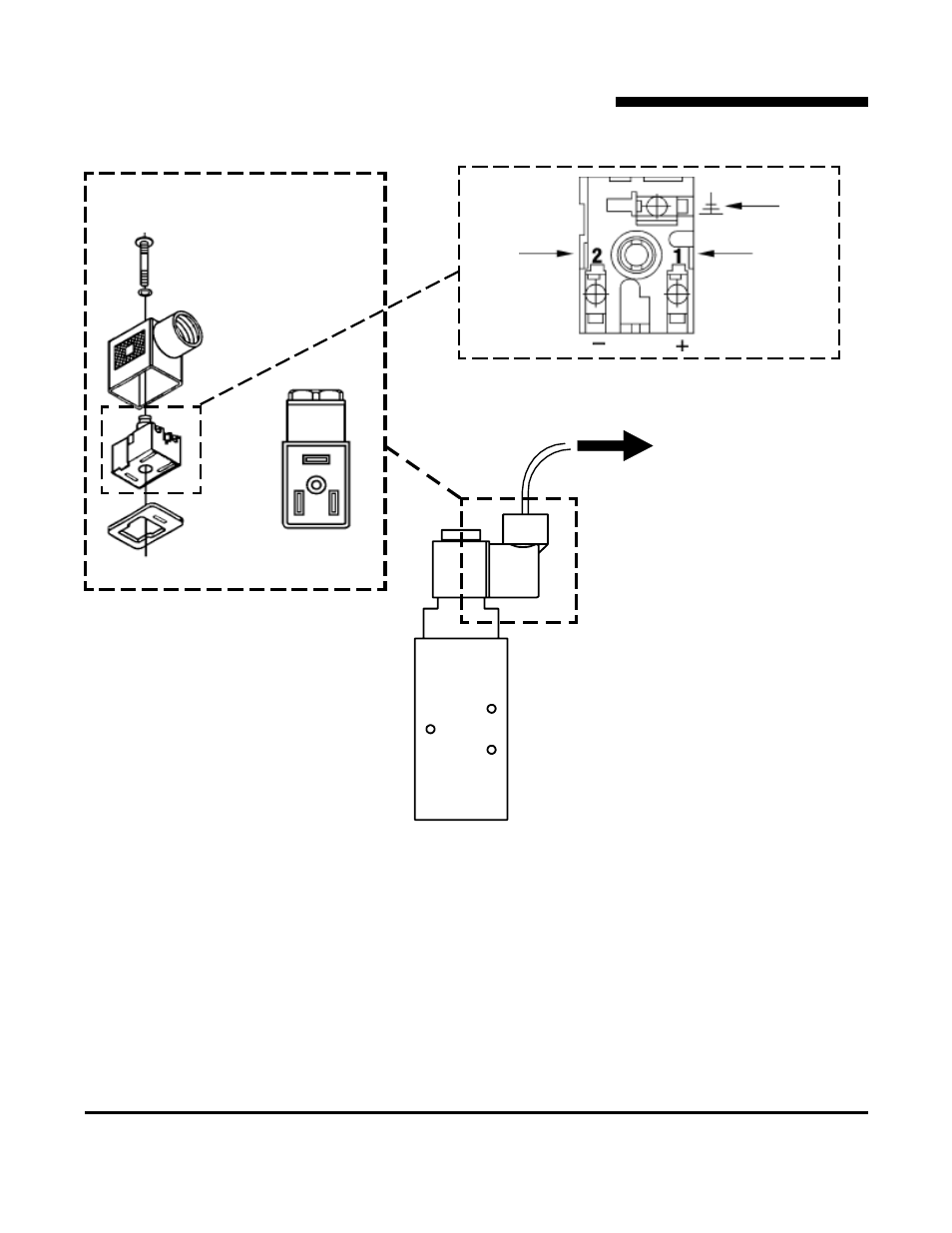

Wiring
Diagram
Before wiring,
remove terminal
block from conduit
connector.
Solenoid Wiring Diagram
