• Model G05 Metallic

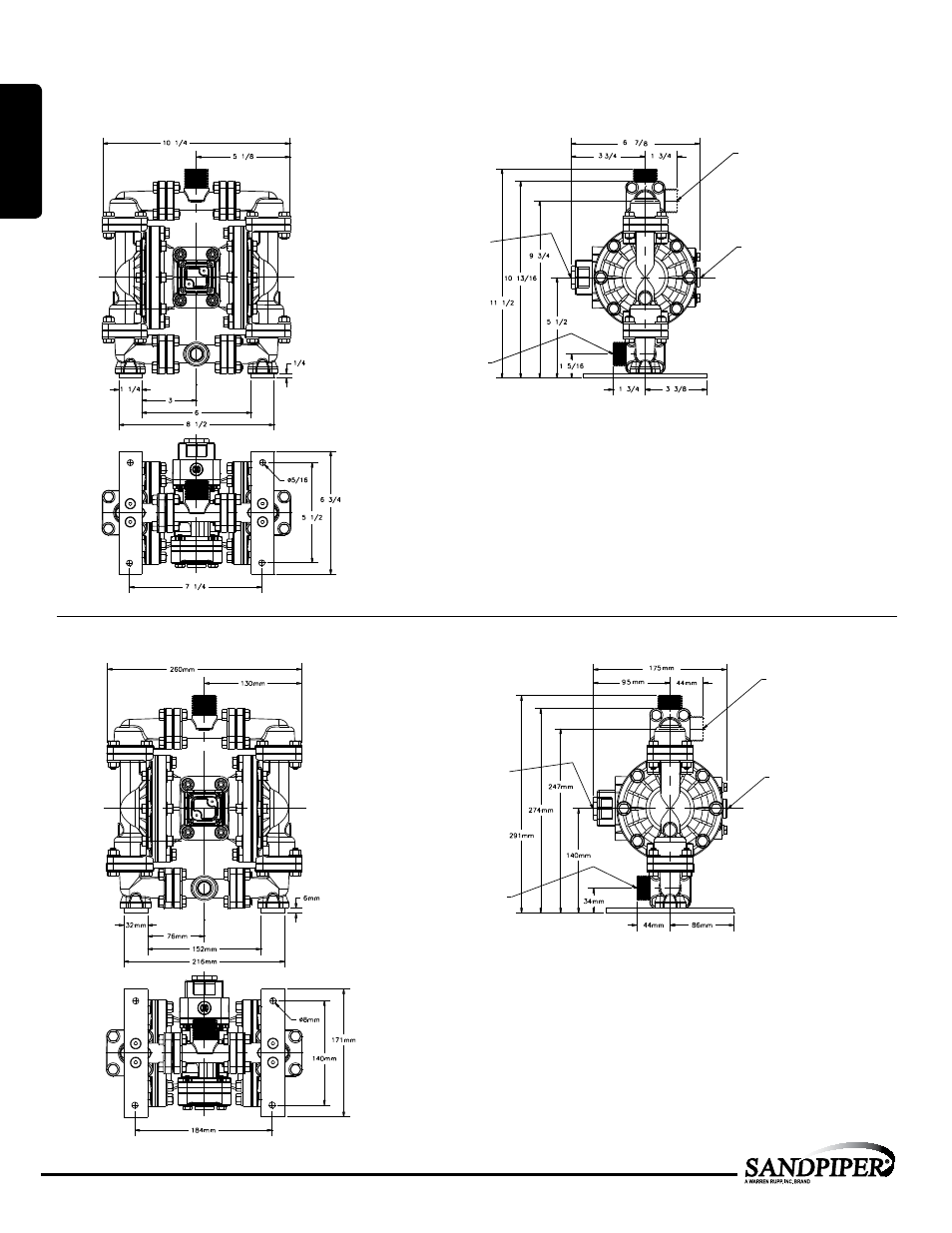

G05 Metallic - Aluminum
Dimensions in Inches. Dimensional Tolerance:±1/8"
G05 Metallic - Aluminum
Dimensions in Millimeters. Dimensional Tolerance:± 3mm
3/8" NPT For Piping Exhausted Natural Gas
Discharge Port
1/2" NPT (Internal)
1" NPT (External)
Gas Inlet
1/4" NPT
Suction Port
1/2" NPT (Internal)
1" NPT (External)
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
Both Suction And Discharge
Ports Are Available In
1/2" BSPT (Tapered Internal)
1" BSPT (Tapered External)
Note: The pump is to be mounted in a horizontal position
Gas Inlet
1/4" NPT
Discharge Port
1/2" NPT (Internal)
1" NPT (External)
3/8" NPT For Piping Exhausted Natural Gas
Suction Port
1/2" NPT (Internal)
1" NPT (External)
Both Suction and Discharge
Ports Are Available In
1/2" BSPT (Tapered Internal)
1" BSPT (Tapered External)
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
Note: The pump is to be mounted in a horizontal position
Dimensional Drawings
MODEL SPECIFIC
1: PUMP
SPECS
