SANDPIPER G05 - Manual (Page 15)

g05mdl1sm-rev0614
sandpiperpump
.
com Model G05 Metallic •
12

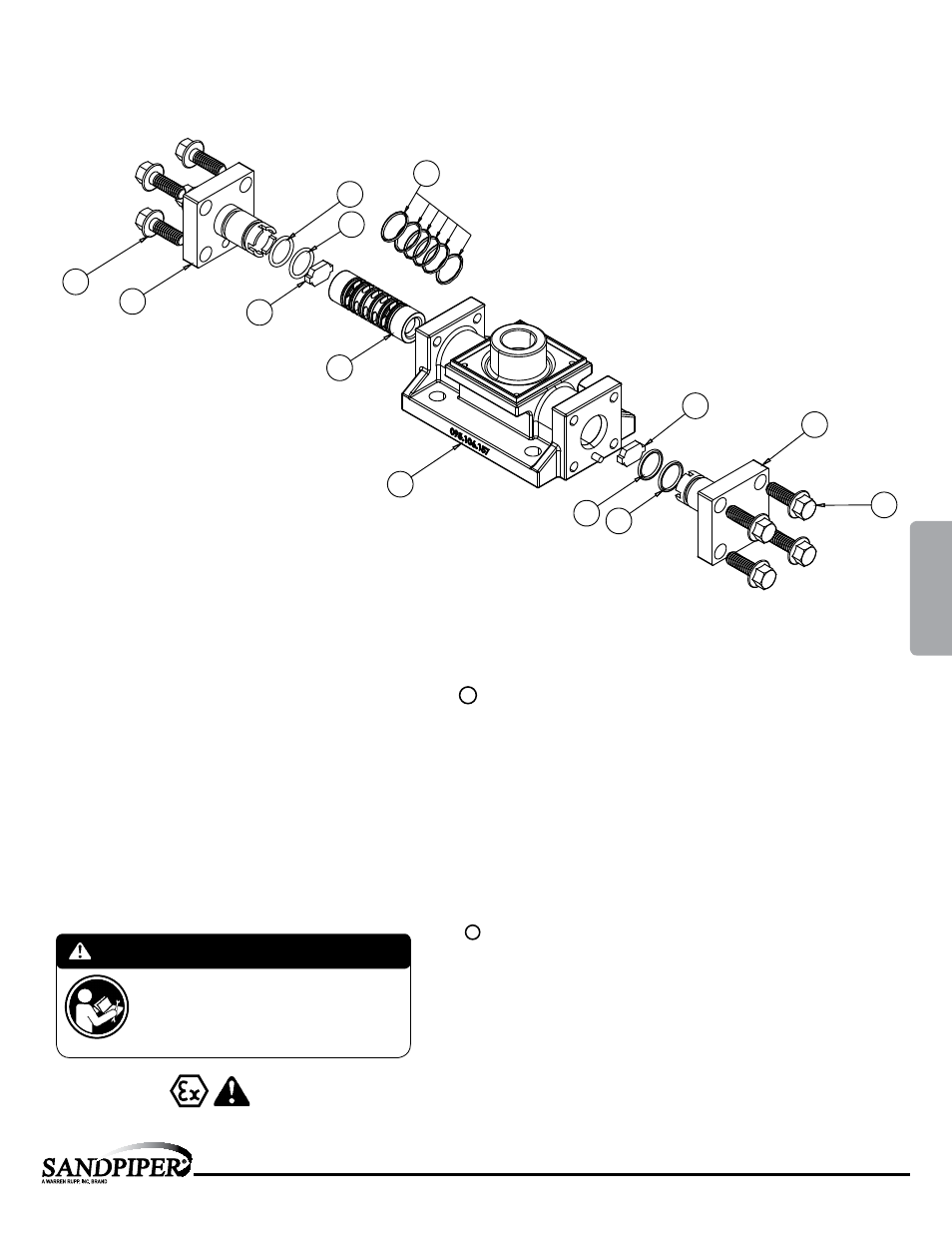

Gas Distribution Valve Assembly
ATEX Compliant
1-E
1-D
1-F
1-F
1-F
1-C
1-A
1-B
1-C
1-F
1-F
1-D
1-E
Main Gas Valve Assembly Parts List
Item Part Number Description Qty
1 031-174-000 Valve Assembly 1
1-A 031-188-000 Sleeve and Spool Set 1
1-B 095-106-157 Valve Body 1
1-C 132-038-357 Bumper 2
1-D 165-128-157 End Cap 2
1-E 171-076-330 Hex Flange Capscrew 1/4-20 x .75 8
1-F 560-101-379 O-Ring 4
Item Part Number Description Qty
1 031-174-363 Valve Assembly 1
1-A 031-188-363 Sleeve and Spool Set (FKM) 1
1-F 560-101-363 O-Ring (FKM) 4
(includes all other items used on 013.174.000)
Gas Distribution Valve Servicing
Step 1: Remove cap screws (1-E).
Step 2: Remove end cap (1-D) and bumper (1-C).
Step 3: Remove spool part (caution: do not scratch).
Step 4: Press sleeve (1-A) from body (1-B).
Step 5: Inspect O-Ring (1-F) and replace if necessary.
Step 6: Lightly lubricate O-Rings (1-F) on spool (1-A).
Step 7: Press sleeve (1-A) into body (1-B).
Step 8: Reassemble in reverse order, starting with step 3.
Note: Sleeve and spool (1-A) set is match ground to a specified clearance
sleeve and spools (1-A) cannot be interchanged.
IMPORTANT
Read these instructions completely, before installation
and start-up. It is the responsibility of the purchaser
to retain this manual for reference. Failure to comply
with the recommendations stated in this manual will
damage the pump, and void factory warranty.
LEGEND:
= Items contained within Gas End Kits
MODEL SPECIFIC
4: AIR
END
