• Model G05 Metallic

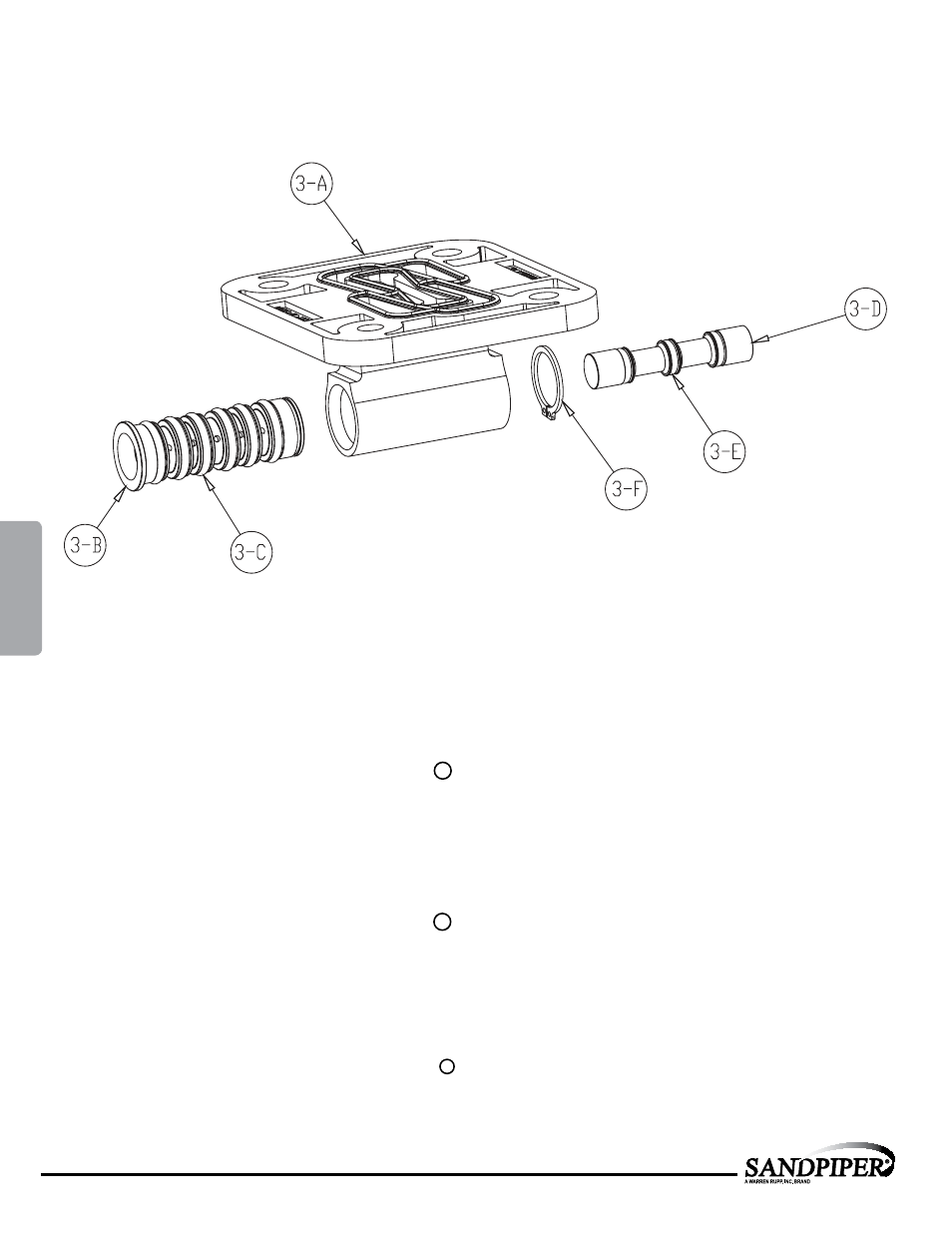

Pilot Valve Assembly
Pilot Valve Servicing
With Pilot Valve removed from pump.
Step 1: Remove snap ring (3-F).
Step 2: Remove sleeve (3-B), inspect O-Rings (3-C),
replace if required.
Step 3: Remove spool (3-D) from sleeve (3-B),
inspect O-Rings (3-E), replace if required.
Step 4: Lightly lubricate O-Rings (3-C) and (3-E).
Reassemble in reverse order.
Pilot Valve Assembly Parts List
Item Part Number Description Qty
3 095-116-000 Pilot Valve Assembly 1
3-A 095-087-157 Valve Body 1
3-B 755-051-000 Sleeve (With O-Rings) 1
3-C 560-033-360 O-Ring (Sleeve) 6
3-D 775-055-000 Spool (With O-Rings) 1
3-E 560-023-360 O-Ring (Spool) 3
3-F 675-037-080 Retaining Ring 1
Item Part Number Description Qty
3 095-116-363 Pilot Valve Assembly (FKM) 1
3-B 755-051-363 Sleeve (With O-Rings) (FKM) 1
3-C 560-033-363 O-Ring (FKM) 6
3-D 775-055-363 Spool (With O-Rings) (FKM) 1
3-E 560-023-363 O-Ring (FKM) 3
(Includes all other items used on 095-116-000)
LEGEND:
= Items contained within Gas End Kits
MODEL SPECIFIC
4: AIR
END
