SANDPIPER G05 User Manual

Page 12

g05mdl1sm-rev0614

sandpiperpump

com

• Model G05 Metallic

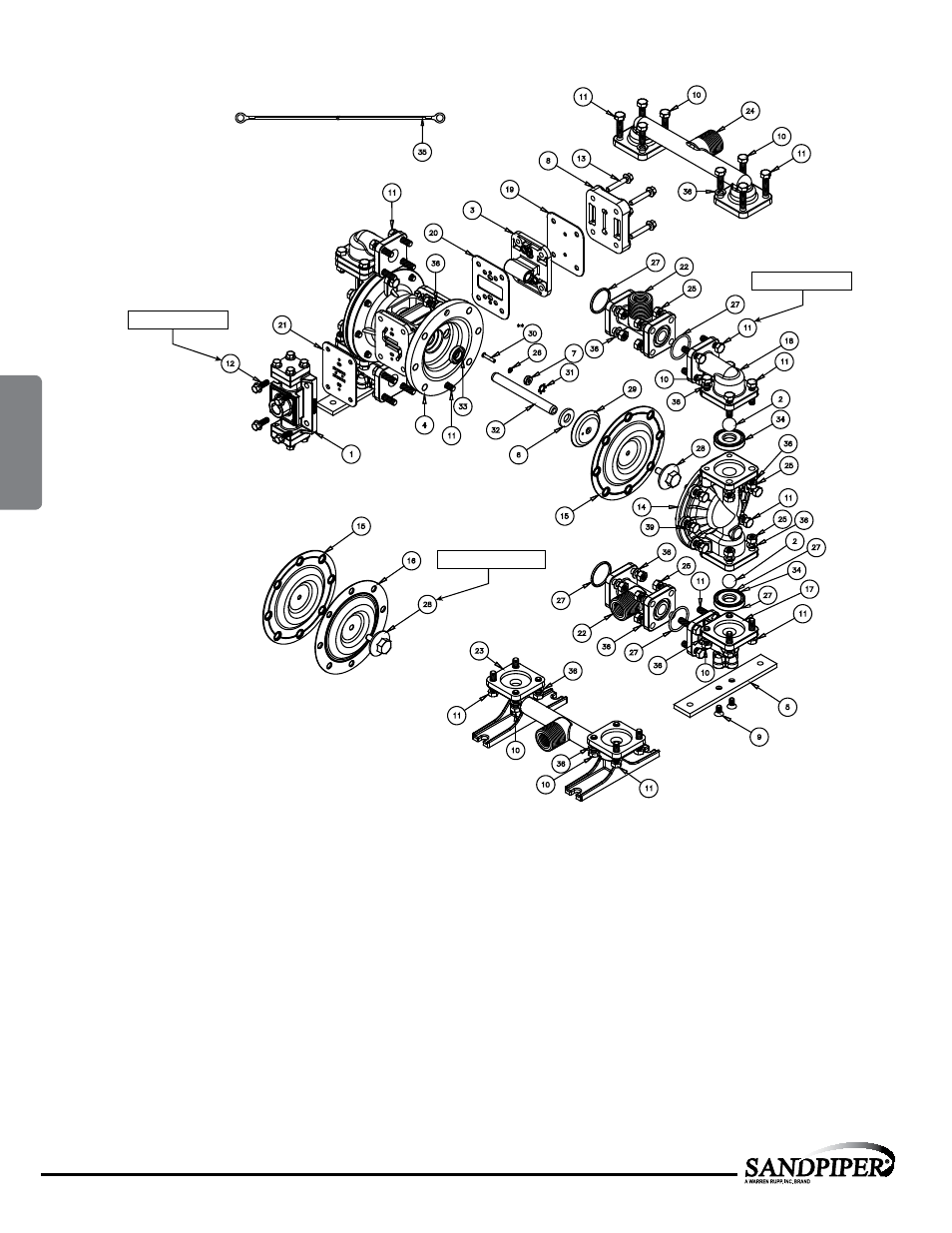

Composite Repair Parts Drawing

Service & Repair Kits

476.237.000

Gas End Kit

Seals, O-Rings, Gaskets, Bumpers, Retaining Rings,

Valve Assembly and Pilot Valve Assembly

476.237.363

Gas End Kit

FKM Seals, O-Rings, Gaskets, Bumpers, Retaining

Rings, Valve Assembly and Pilot Valve Assembly

476.238.360

Wetted End Kit

Nitrile Diaphagms, Nitrile Check Balls and PTFE Seats
476.238.649

Wetted End Kit

Nitrile Diaphragm, PTFE Overlay Diaphragm, PTFE

Check Balls and PTFE Seats

476.238.672

Wetted End Kit

Nitrile Diaphragms, PTFE Check Balls, PTFE Seats

*OVERLAY OPTION

Torque: 70 in/lbs

Torque: 120 in/lbs

476.318.000

Gas End Wear Kit

Nitrile 0-rings, Bumpers and Seals
476.318.363

Gas End Wear Kit

FKM 0-rings, Bumpers, and Seals
474.095.360

Wet End Wear Kit

Nitrile Diaphagms
474.096.600

Wet End Wear Kit

Nitrile Backer Diaphragms PTFE

Overlay

Diaphragms

MODEL SPECIFIC

3: EXP

VIEW
