SANDPIPER S1F Non-Metallic - Manual (Page 7)

s1fnmdl3sm-rev0614
1: PUMP
SPECS
sandpiperpump
.
com Model S1F Non-Metallic •
4

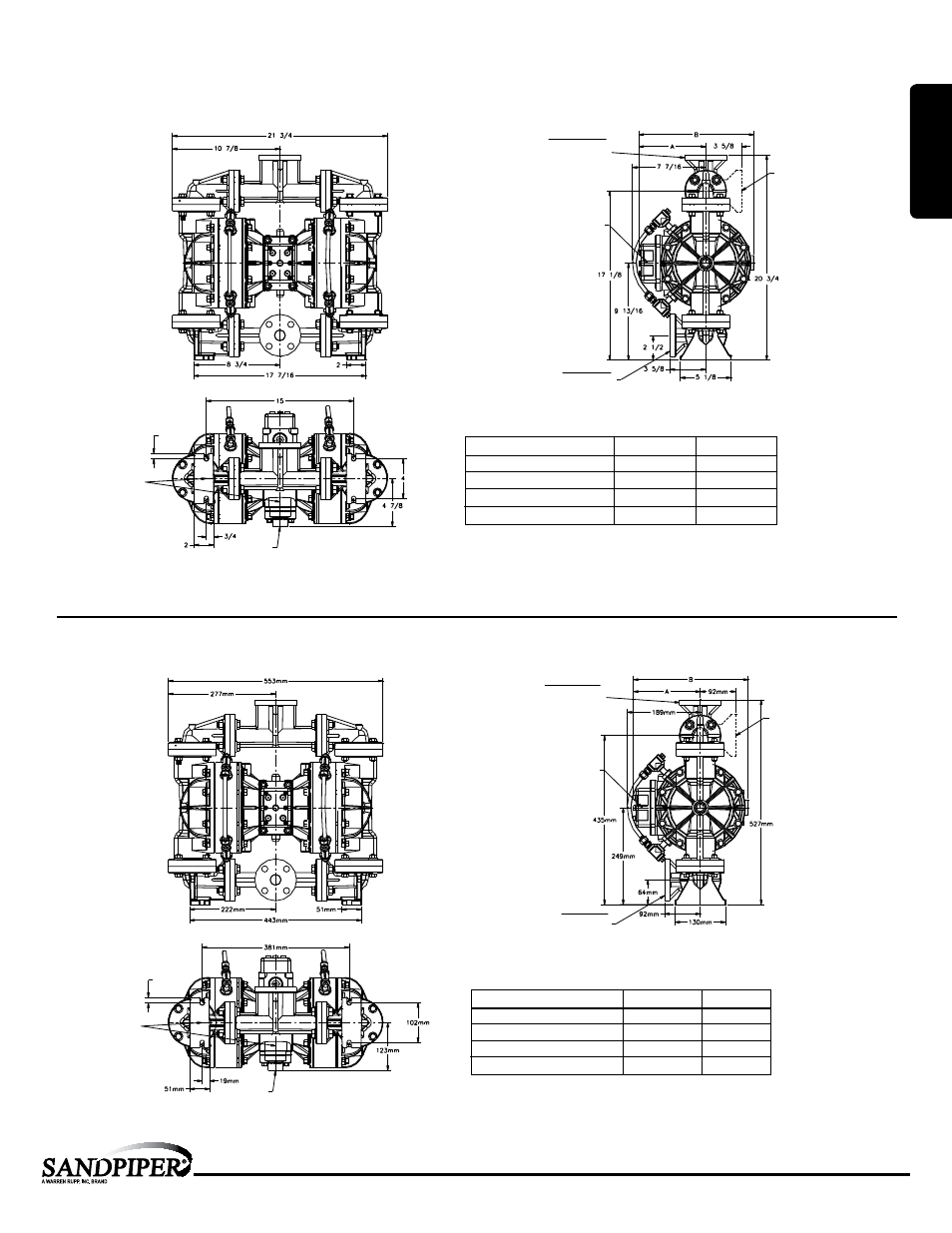

S1F Non-Metallic with Spill Containment
Dimensions in Inches. Dimensional tolerance: ± 1 /8"
S1F Non-Metallic with Spill Containment (Metric)
Dimensions in Millimeters. Dimensional tolerance: ±3mm
FRONT VIEW
SIDE VIEW
BOTTOM VIEW
DISCHARGE PORT
9/16 X 11/16 SLOTTED BOLTING
CONFIGURATION FITS TO EITHER 1” ANSI 125#
FLANGE CONNECTION OR PNIO 25mm DIN
FLANGE CONNECTION
SUCTION PORT
9/16 X 11/16 SLOTTED BOLTING
CONFIGURATION FITS TO EITHER 1” ANSI 125#
FLANGE CONNECTION OR PNIO 25mm DIN
FLANGE CONNECTION
BOLT PATTERN IS
SYMMETRICAL
ABOUT CENTERLINES
9/16 TYP.
4 PLACES
AIR INLET
1/2” NPT
MANIFOLD CAN ROTATE
±90° FROM VERTICAL
CENTERLINE
STANDARD INTEGRAL MUFFLER:
1” NPT EXHAUST PORT FOR OPTIONAL
MUFFLER STYLES OR PIPING EXHAUST AIR IN
SUBMERGED APPLICATIONS
DIMENSION A B
Standard Pump 5 5/8" 10 1/4"
Pulse Output Kit 5 5/8" 10 1/4"
Mesh Muffler 8 9/16" 11 1/8"
Sound Dampening Muffler 8 9/16" 11 1/8"
FRONT VIEW
SIDE VIEW
BOTTOM VIEW
DISCHARGE PORT
14mm X 17mm SLOTTED BOLTING
CONFIGURATION FITS TO EITHER 1” ANSI 125#
FLANGE CONNECTION OR PNIO 25mm DIN
FLANGE CONNECTION
SUCTION PORT
14mm X 17mm SLOTTED BOLTING
CONFIGURATION FITS TO EITHER 1” ANSI 125#
FLANGE CONNECTION OR PNIO 25mm DIN
FLANGE CONNECTION
BOLT PATTERN IS
SYMMETRICAL
ABOUT CENTERLINES
14mm TYP.
4 PLACES
AIR INLET
1/2” NPT
MANIFOLD CAN ROTATE
±90° FROM VERTICAL
CENTERLINE
STANDARD INTEGRAL MUFFLER:
1” NPT EXHAUST PORT FOR OPTIONAL
MUFFLER STYLES OR PIPING EXHAUST AIR IN
SUBMERGED APPLICATIONS
DIMENSION A B
Standard Pump 143mm 260mm
Pulse Output Kit 143mm 260mm
Mesh Muffler 167mm 283mm
Sound Dampening Muffler 167mm 283mm
Dimensional Drawings
MODEL SPECIFIC
