6: OPTIONAL
sandpiperpump
.
com Model S1F Non-Metallic •
20
58
56
57
56
60
59
1" ANSI STYLE FLANGE
CONNECTION: FOUR Ø.62 HOLES
ON A Ø 3.12 BOLT CIRCLE.

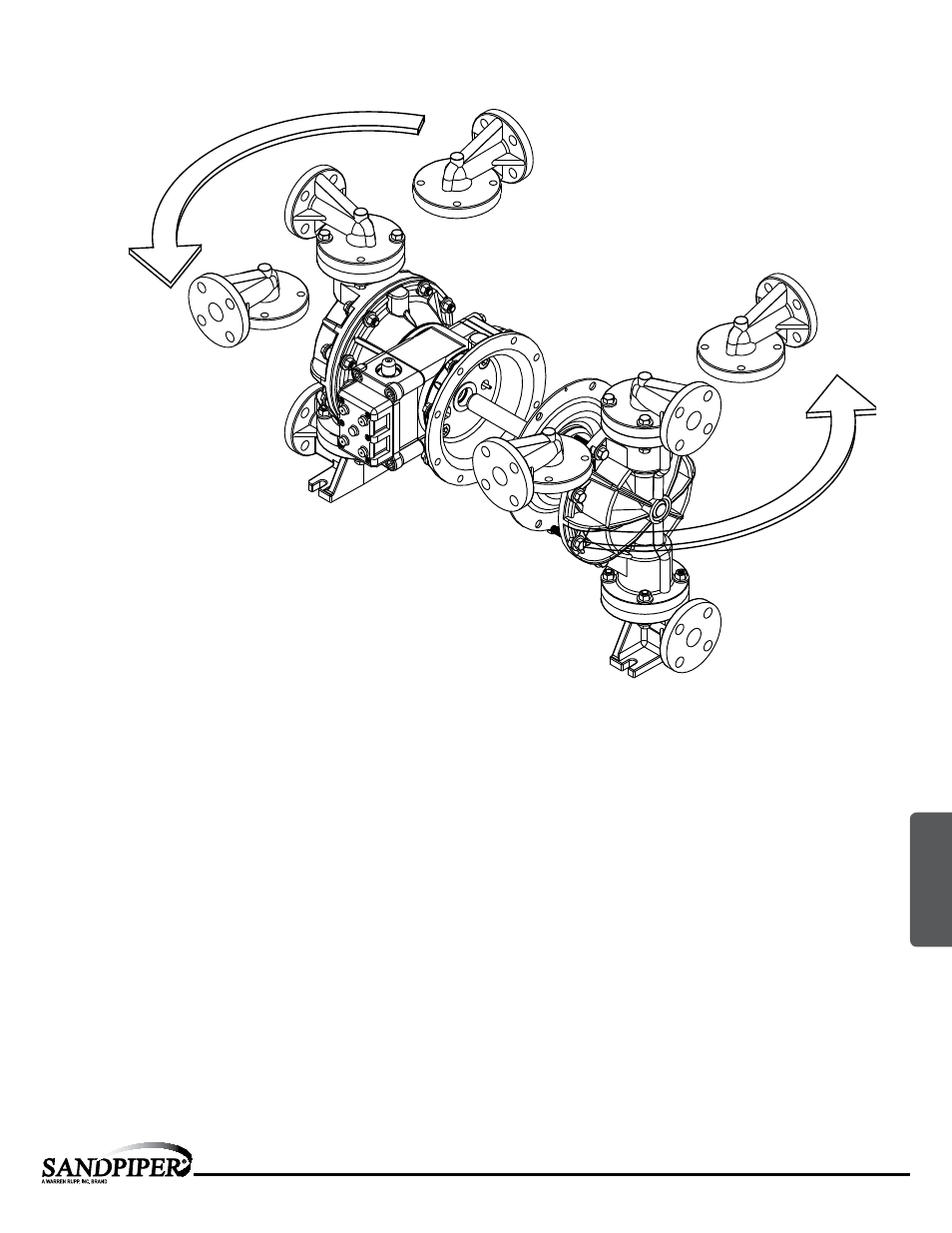

Dual Port Option
DUAL PORTING OPTIONS
Several dual porting options are possible. The
pump can be converted to a dual port arrangement
on both the suction and the discharge ends. The
porting can be configured to a single suction and a
dual discharge. The porting can be changed to a dual
suction and a single discharge.
The above changes are possible because the
porting flange of the elbows (items 18 and 19) are
designed to mate with standard 125# ANSI style
4-bolt, 1" pipe flanges.
DUAL PORTING OF BOTH SUCTION AND
DISCHARGE ENDS OF THE PUMP
Converting the pump from the standard single
suction and discharge porting configuration to dual
porting at each end is easy. Simply remove the
manifold seals, spacers, and manifolds (items 35
and 23 from pump assembly drawing) from the pump.
The discharge and suction elbows can be
rotated at 90° increments (see arrows and optional
positioning in the Dual Porting Drawing.
SINGLE PORTING OF THE SUCTION AND DUAL
PORTING OF THE PUMP DISCHARGE
To convert the pump from the standard single
suction and single discharge porting configuration
to a dual discharge porting arrangement remove the
only the discharge manifolds, spacers, and manifold
seals. Position the discharge elbows in the desired
direction at 90° increments. (See arrows and optional
positioning in the Dual Porting Drawing.)
DUAL PORTING OF THE SUCTION AND SINGLE
PORTING OF THE PUMP DISCHARGE
To convert the pump from the standard single
suction and single discharge porting configuration
to a dual suction porting arrangement remove the
only the suction (bottom) manifolds, spacers, and
manifold seals.
Position the suction elbows in the desired
direction at 90° increments. (See arrows and optional
positioning in the Dual Porting Drawing.)
MODEL SPECIFIC
