s1fnmdl3sm-rev0614

6: OPTIONAL

sandpiperpump

.

com

19

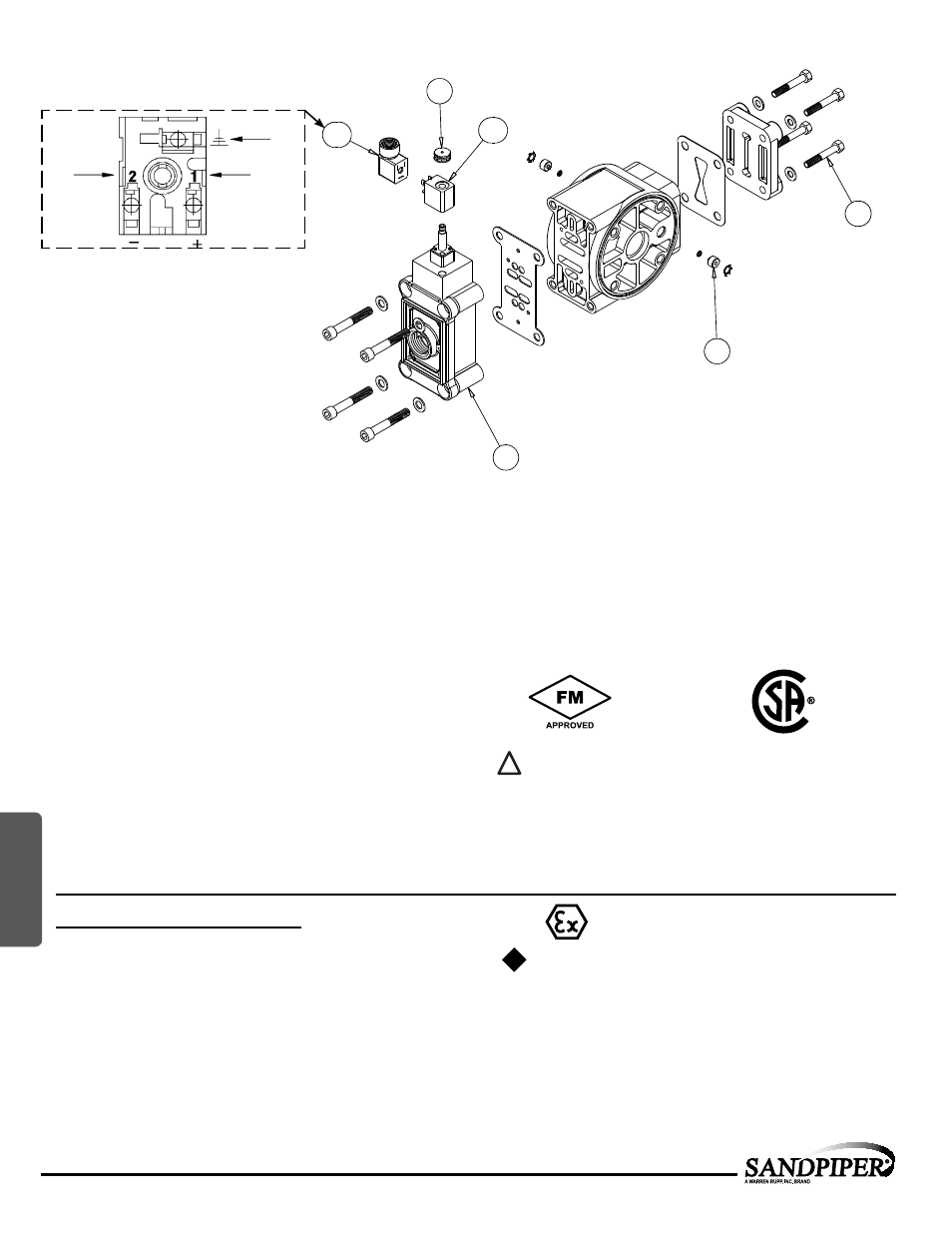

• Model S1F Non-Metallic

Solenoid Shifted Air Valve

#2 Terminal

Neutral

(Negative)

#1 Terminal

Power

(Positive)

3rd Terminal

for ground

Wiring

Diagram

Solenoid Shifted Air Valve Parts List

(Includes All Items Used on Composite Repair Parts List Except as Shown)

Item

Part Number

Description

Qty

56

893-097-000

Solenoid Valve, NEMA4 1

57

219-001-000

Solenoid Coil, 24VDC

1

219-004-000

Solenoid Coil, 24VAC/12VDC

1

219-002-000

Solenoid Coil, 120VAC

1

219-003-000

Solenoid Coil, 240VAC

1

58

241-001-000

Connector, conduit

1

59

170-029-330

Capscrew, Hex HD 5/16 - 18 x 1.50

4

60

618-051-150

Plug

2

For Explosion Proof Solenoid Coils used in North

America and outside the European Union.

57

219-009-001

Solenoid Coil, 120VAC 60 Hz

1

219-009-002

Solenoid Coil, 240VAC 60 HZ 1

219-009-003

Solenoid Coil, 12VDC

1

219-009-004

Solenoid Coil, 24VDC

1

219-009-005

Solenoid Coil, 110VAC 50 Hz

1

219-009-006

Solenoid Coil, 230VAC 50 Hz

1

Note: Item 58 (Conduit Connector) is not required

58

56

57

56

60

59

IEC EEX m T4

*Special Conditions For Safe Use

A fuse corresponding to its rated current (max. 3*I

rat

according IEC

60127-2-1) or a motor protecting switch with short-circuit and thermal

instantaneous tripping (set to rated current) shall be connected in series to each

solenoid as short circuit protection. For very low rated currents of the

solenoid the fuse of lowest current value according to the indicated IEC

standard will be sufficient. The fuse may be accommodated in the associated

supply unit or shall be separately arranged. The rated voltage to the fuse shall

be equal to or greater than the stated rated voltage of the magnet coil. The

breakage capacity of the fuse-link shall be as high as or higher than the

maximum expected short circuit current at the location of the installation

(usually 1500 A). A maximum permissible ripple of 20% is valid for all magnets

of direct-current design.

For ATEX Compliant Solenoid Coils used in the

European Union

57

219-011-001 Solenoid Coil, Single mounting

12 VDC, 3.3W / 267mA

1

219-011-002 Solenoid Coil, Single mounting

24 VDC, 3.3W / 136mA

1

219-011-003 Solenoid Coil, Single mounting

110/120 VAC, 3.4W / 29mA

1

219-011-004 Solenoid Coil, Single mounting

220/240 VAC, 3.4W / 15mA

1

Note: Item 37 (Conduit Connector) is not required

*

II 2G EEx m c T5
II 2D c IP65 T100°C

II 2G EE

x

m

c

II T5

II 3/2 G E

x

m

c

II T5

II 2D

c

IP65 T100°c

Compressed Air Temperature Range: Maximum Ambient Temperature to plus 50°C

Solenoid Shifted Operation

The Solenoid Shifted SANDPIPER has a solenoid operated, air distribution

valve in place of the standard SANDPIPER’s pilot operated, air distribution

valve. Where a pilot valve is normally utilized to cycle the pump’s air distribution

valve, an electric solenoid is utilized. As the solenoid is powered, one of the

pump’s air chambers is pressurized while the other chamber is exhausted. When

electric power is turned off, the solenoid shifts and the pressurized chamber

is exhausted while the other chamber is pressurized. By alternately applying

and removing power to the solenoid, the pump cycles much like a standard

SANDPIPER pump, with one exception. This option provides a way to precisely

control and monitor pump speed.

Before Installation

Before wiring the solenoid, make certain it is compatible with your system

voltage.

MODEL SPECIFIC
