3
• Model S15 Non-Metallic
Note: Porting Flanges are also available with PN10 40mm
DIN Bolting Configuration
STANDARD ENCAPSULATED MUFFLER
1” NPT EXHAUST PORT FOR OPTIONAL
MUFFLER STYLES OR PIPING EXHAUST
AIR IN SUBMERGED APPLICATIONS
SUCTION PORT
1 1/2” STANDARD 125# FLANGE
CONFIGURATION
.62 (4) HOLES EQUALLY SPACED
ON A 3.88 BOLT CIRCLE
DISCHARGE PORT
1 1/2” STANDARD 125# FLANGE
CONFIGURATION
.62 (4) HOLES EQUALLY SPACED
ON A 3.88 BOLT CIRCLE
OPTIONAL THREADED 1”
NPT METAL MUFFLER
FOR ATEX COMPLIANT PUMPS
OPTIONAL THREADED 1”
NPT SOUND DAMPENING OR
BRASS MESH MUFFLER
MANIFOLD CAN ROTATE
±90º FROM VERTICAL
CENTERLINE
AIR INLET
3/4” NPT
Note: Porting Flanges are also available with PN10
40mm DIN bolting configuration
STANDARD ENCAPSULATED MUFFLER
1” NPT EXHAUST PORT FOR OPTIONAL
MUFFLER STYLES OR PIPING EXHAUST
AIR IN SUBMERGED APPLICATIONS
SUCTION PORT
1 1/2” STANDARD 125# FLANGE
CONFIGURATION
.62 (4) HOLES EQUALLY SPACED
ON A 3.88 BOLT CIRCLE
DISCHARGE PORT
1 1/2” STANDARD 125# FLANGE
CONFIGURATION
.62 (4) HOLES EQUALLY SPACED
ON A 3.88 BOLT CIRCLE
OPTIONAL THREADED 1”
NPT METAL MUFFLER
FOR ATEX COMPLIANT PUMPS
OPTIONAL
THREADED 1” NPT
SOUND DAMPENING OR
BRASS MESH MUFFLER
MANIFOLD CAN ROTATE
±90º FROM VERTICAL
CENTERLINE
AIR INLET
3/4” NPT

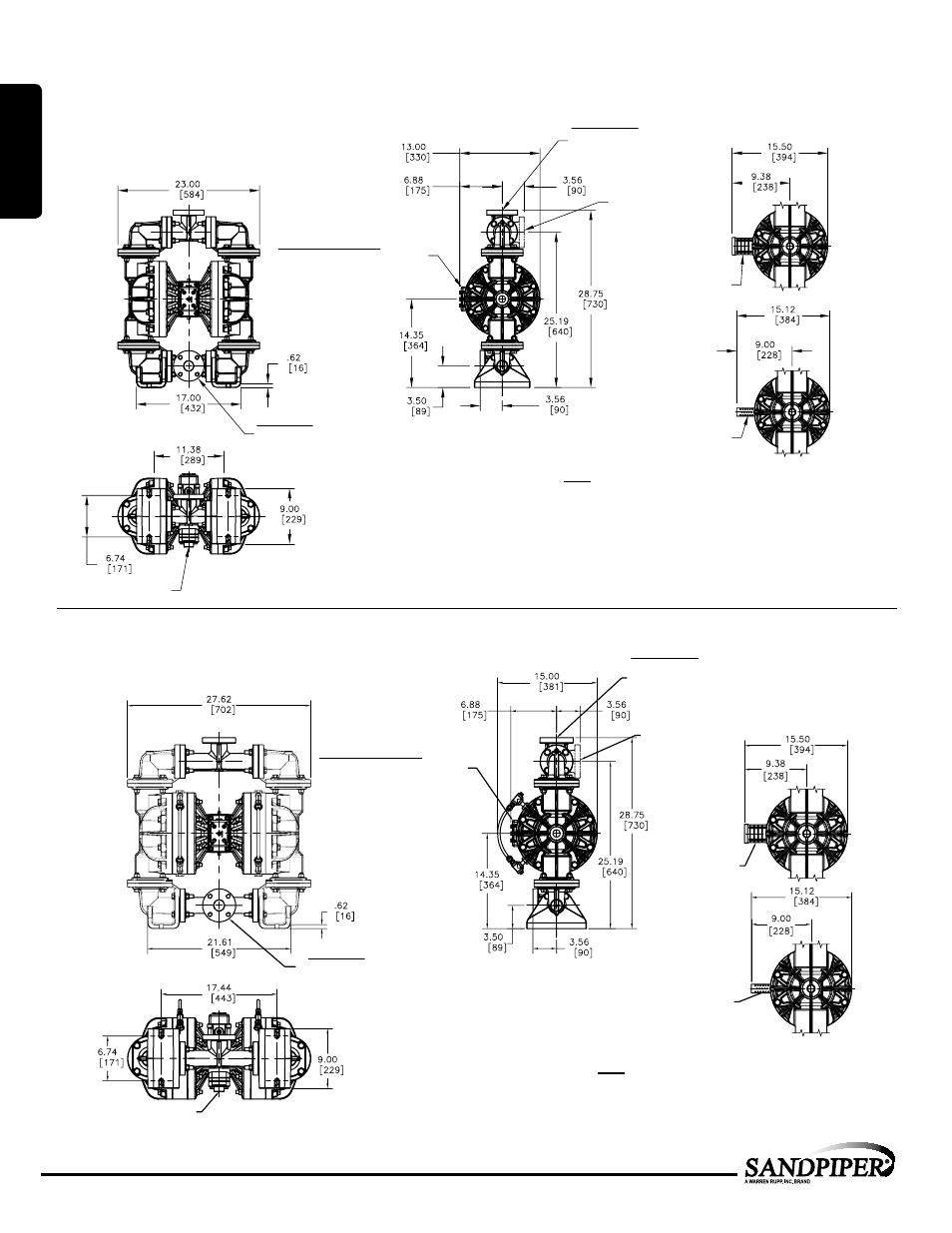

S15 Non-Metallic
Dimensions in Inches [ ] in Millimeters. Dimensional tolerance: +/- 1/8" [ ] +/- 3mm
S15 Non-Metallic with Spill Containment
Dimensions in Inches [ ] in Millimeters. Dimensional tolerance: +/- 1/8"[ ] +/- 3mm
Dimensional Drawings
MODEL SPECIFIC
1: PUMP
SPECS
