SANDPIPER S15 Non-Metallic - Manual (Page 13)

s15nmdl3sm-rev0614
sandpiperpump
.
com Model S15 Non-Metallic •
10
7
6
Torque: 600 in/lbs

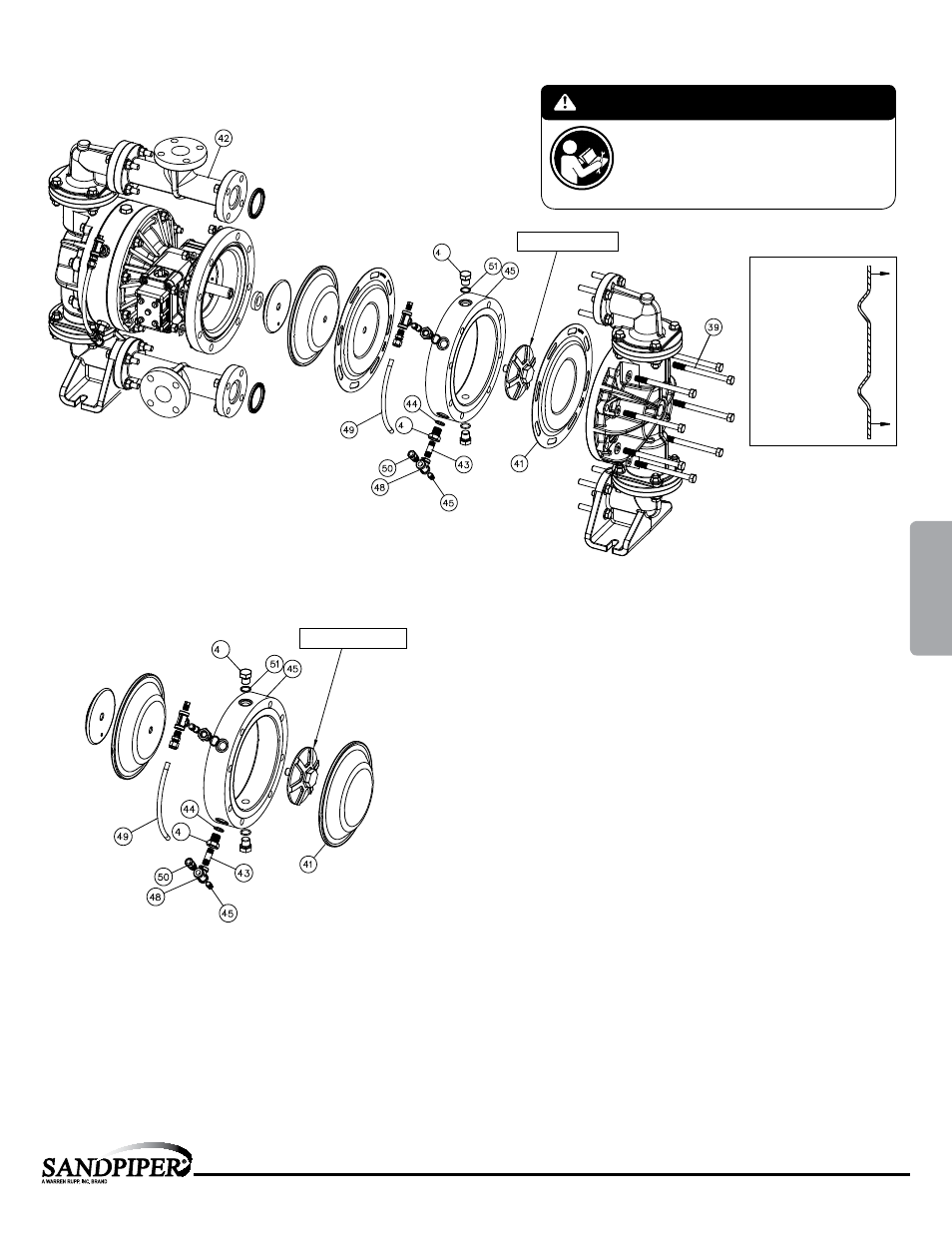

Spill Containment Option
S15 Spill Containment Repair Parts List
Item Part Number Description Qty
39 170-102-115 Capscrew, Hex HD 1/2-13 x 6.00 16
(replaces 170-095-115)
170-102-308 Capscrew, Hex HD 1/2-13 x 6.00 16
40 196-189-520 Chamber, Spill Prevention (PTFE Only) 2
196-189-552 Chamber, Spill Prevention (PTFE Only) 2
196-215-520 Chamber, Spill Prevention (Santoprene Only) 2
196-215-552 Chamber, Spill Prevention (Santoprene Only) 2
41 286-120-600 Diaphragm, Pumping 2
286.036.354 Diaphragm, Pumping 2
42 518-198-520 Manifold 2
(replaces 518-197-520)
518-198-520E Manifold, 40mm DIN 2
(replaces 518-197-520E item #23)
518-198-552 Manifold 2
(replaces 518-197-552)
518-198-552E Manifold, 40mm DIN 2
(replaces 518-197-552E item #23)
43 538-022-110 Nipple, Pipe 4
538-022-308 Nipple, Pipe 4
44 560-078-611 O-Ring 8
45 618-003-110 Plug, Pipe 4
618-003-308 Plug, Pipe 4
46 618-025-110 Plug, Boss 4
618-025-308 Plug, Boss 4
47 618-031-110 Threaded Bushing 4
618-031-308 Threaded Bushing 4
48 835-005-110 Tee, Pipe 4
835-005-308 Tee, Pipe 4
49 860-055-606 Tube, Sight 2
50 866-060-110 Connector, Tube 4
51 560.078.611 O-Ring 4
Note
(PTFE ONLY):
Items # 41
the diaphragms
are to be installed
with the concave
side facing
toward the outer
chambers.
IMPORTANT
Read these instructions completely, before installation
and start-up. It is the responsibility of the purchaser
to retain this manual for reference. Failure to comply
with the recommendations stated in this manual will
damage the pump, and void factory warranty.
Santoprene Option
Virgin PTFE Equipped Pumps
7
6
Torque: 600 in/lbs
7
6
Torque: 600 in/lbs
4: AIR
END
