3
• Model S05 Metallic
BOTH SUCTION AND DISCHARGE
PORTS ARE AVAILABLE IN
1/2” BSP TAPERED (INTERNAL)
1” BSP TAPERED (EXTERNAL)
SUCTION PORT
1/2” NPT (INTERNAL)
1” NPT (EXTERNAL)
ENCAPSULATED MUFFLER:
3/8” NPT EXHAUST PORT
FOR OPTIONAL PIPING MUFFLER
STYLES OR PIPING EXHAUST
AIR IN SUBMERGED APPLICATIONS.
BOTTOM VIEW
FRONT VIEW SIDE VIEW
DISCHARGE PORT
1/2” NPT (INTERNAL)
1” NPT (EXTERNAL)
AIR INLET
1/4” NPT
DIMENSION A B
Integral Muffler 4 5/16" 7 5/16"
Pulse Output Kit 4 5/16" 7 5/16"
Mesh Muffler 6" 9"
Sound Dampening Muffler 6" 9"
Metal Muffler 5 5/8" 8 5/8"
BOTH SUCTION AND DISCHARGE
PORTS ARE AVAILABLE IN
1/2” BSP TAPERED (INTERNAL)
1” BSP TAPERED (EXTERNAL)
ENCAPSULATED MUFFLER:
3/8” NPT EXHAUST PORT
FOR OPTIONAL PIPING MUFFLER
STYLES OR PIPING EXHAUST
AIR IN SUBMERGED APPLICATIONS.
BOTTOM VIEW
FRONT VIEW
SIDE VIEW
SUCTION PORT
1/2” NPT (INTERNAL)
1” NPT (EXTERNAL)
DISCHARGE PORT
1/2” NPT (INTERNAL)
1” NPT (EXTERNAL)
AIR INLET
1/4” NPT
DIMENSION A B
Integral Muffler 109 mm 186 mm
Pulse Output Kit 109 mm 186 mm
Mesh Muffler 152 mm 229 mm
Sound Dampening Muffler 152 mm 229 mm
Metal Muffler 143 mm 219 mm

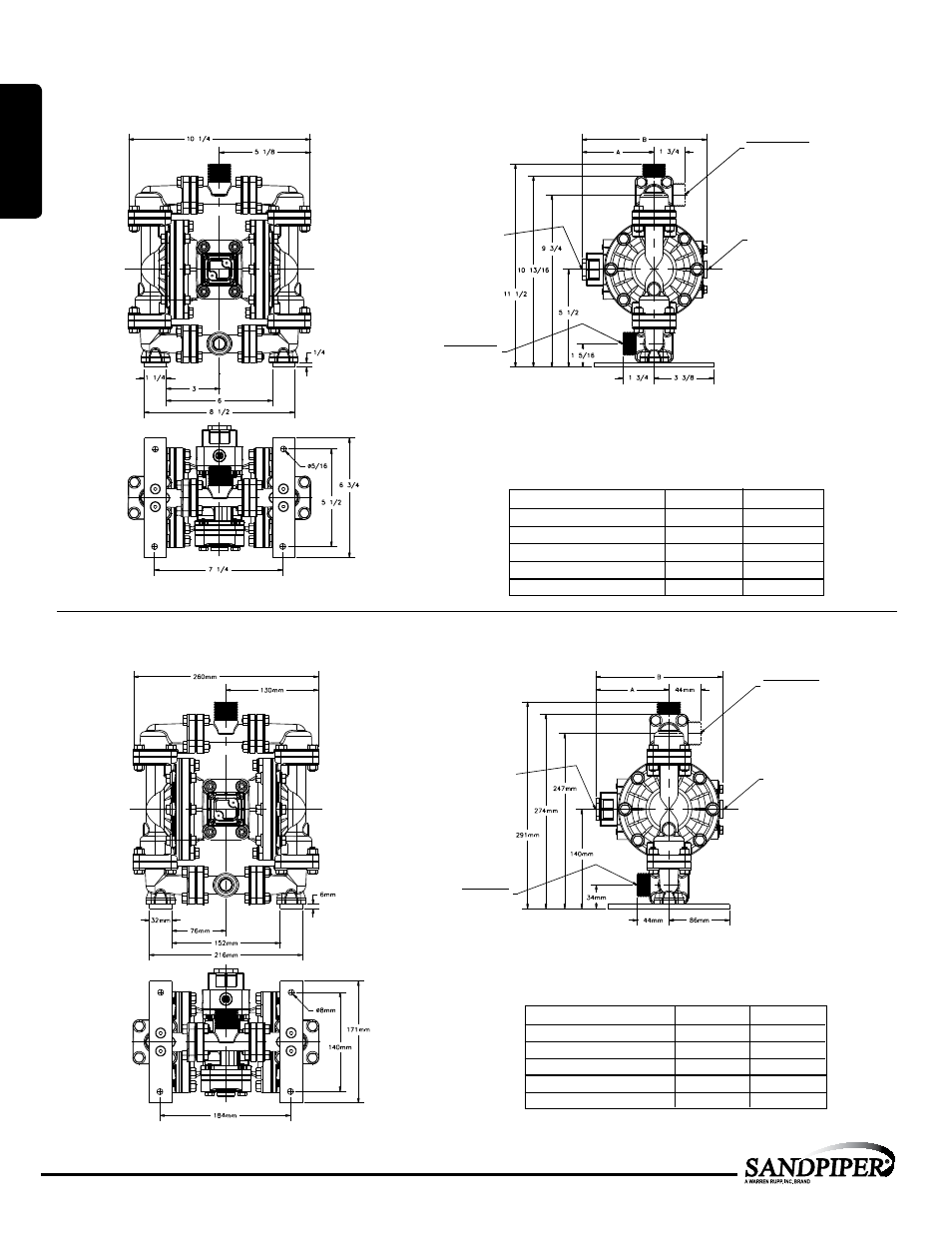

S05 Metallic (Aluminum Model)
Dimensions in Inches. Dimensional tolerance: ±1/8"
S05 Metallic (Aluminum Model)
Dimensions in millimeters. Dimensional tolerance: ±3mm
1: PUMP
SPECS
