9
• Model S05 Metallic
476-219-000 Air End Kit (Polypropylene)
Seals, O-Rings, Gaskets, Retaining Rings, Air Valve
Assembly and Pilot Valve Assembly.
476-239-000 Air End Kit
Seals, O-Rings, Gaskets, Bumpers, Retainers, Air Valve
Assembly and Pilot Valve Assembly.
476-240-000 Air End Kit for pumps equipped with Stroke Indicator
(same components as above, except Air Valve Assembly
with pins replaces Air Valve Standard).
476-199-354 Wetted End Kit
Santoprene Diaphragm, Santoprene Check Balls,
UHMW Seats, Nitrile Spacer Gasket.
476-199-356 Wetted End Kit
Hytrel Diaphragm, Hytrel Check Balls, UHMW Seats.
476-199-360 Wetted End Kit
Nitrile Diaphragm, Nitrile Check Balls, UHMW Seats.
476-199-661 Wetted End Kit
EPDM Diaphragm, Santoprene Check Balls,
UHMW Seats.
476-199-365 Wetted End Kit
Neoprene Diaphragm, Neoprene Check Balls,
UHMW Seats.
476-199-633 Wetted End Kit
FKM Diaphragm, PTFE Check Balls, PTFE Seats.
476-199-650 Wetted End Kit
PTFE and Santoprene Diaphragm, PTFE Check Balls,
PTFE Seats.
476-199-654 Wetted End Kit
Santoprene Diaphragm, PTFE Overlay Diaphragm,
PTFE Check Balls, PTFE Seats.
476-199-659 Wetted End Kit
One-PIece Bonded PTFE/Nitrile Diaphragm,
PTFE Balls, PTFE Seats.
ILLUSTRATION SHOWS
DIRECTION OF DIAPHRAGMS
DIAPHRAGM CONFIGURATION
DETAIL
NOTE TO ASSEMBLY
The diaphragms for both configurations shown
above are to be installed with convolutions
facing towards center of pump
14
37 27
37
30
8
20
3
22
18
23
25
13
10
10
37
9
29
9
10
37
37
27
2
29
36
29
10
21
1
26
12 10
37
35
32
28
7
33
34
6
31
19
15
2
29
29
36
29
23
27
37
29
9
37
5
11
10
24
37
9 37
9
10
15
16
30
4
18
17
10
10a
9a
9
38
*OVERLAY OPTION
Alum Center
Poly Center
Alum Center
Poly Center
Torque:
70 in/lbs
Torque:
50 in/lbs
Aluminum ONLY
Torque:
120 in/lbs
Torque:
50 in/lbs
Aluminum ONLY

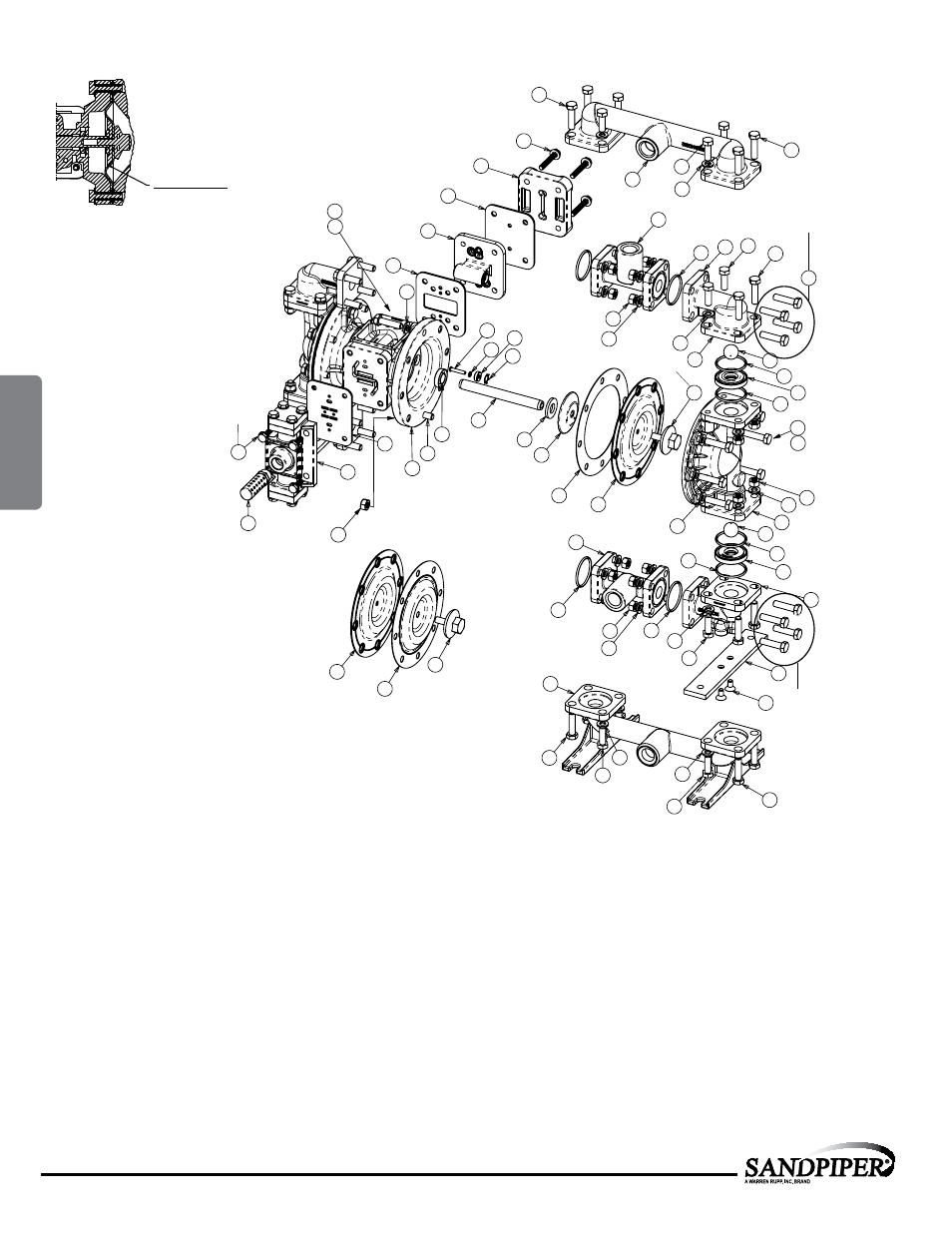

Composite Repair Parts Drawing
Service & Repair Kits
3: EXP
VIEW
