st15dl4sm-rev0614 Models ST1½, ST40 Page 3

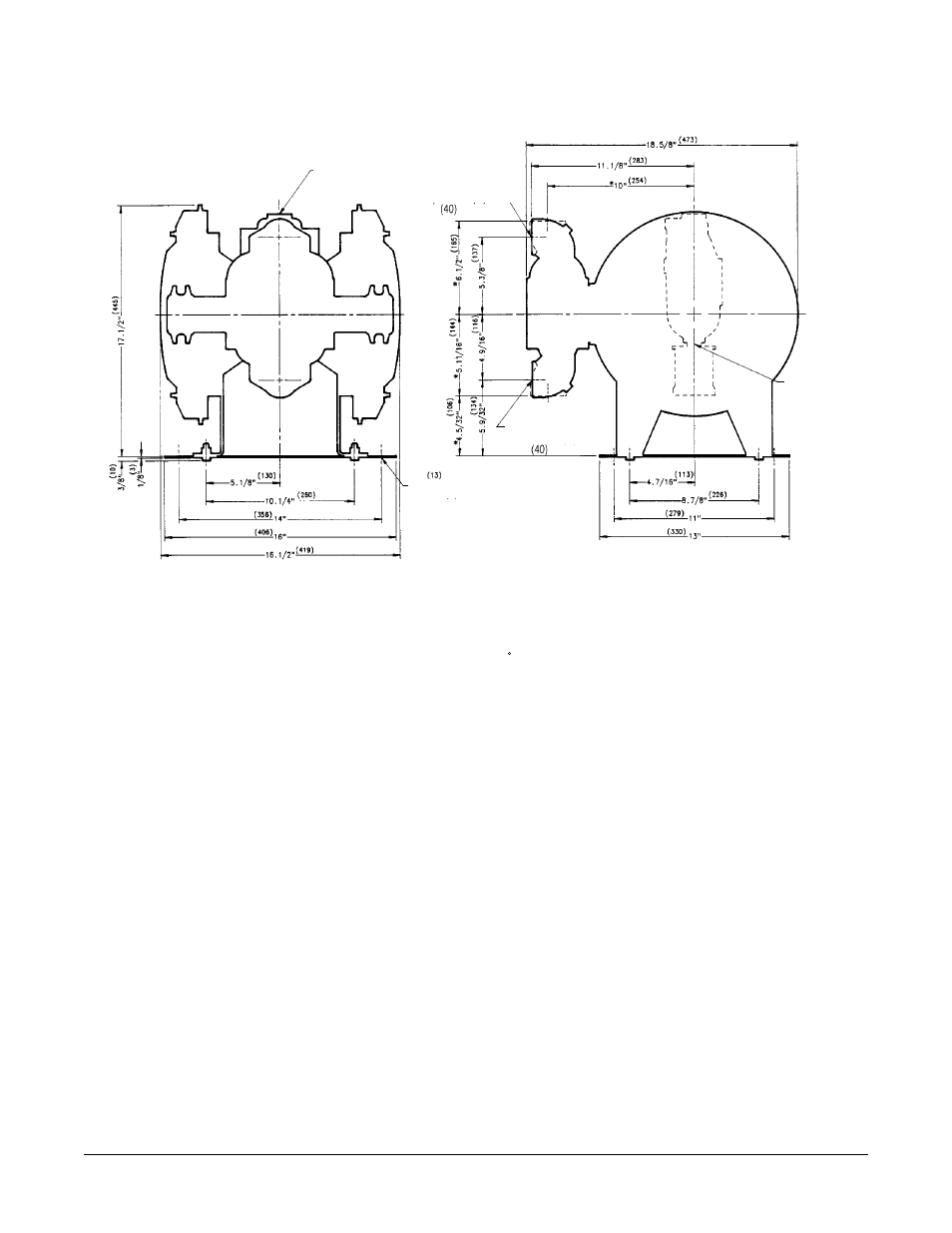

Dimensions: ST1½ & ST40
*
Model ST1½
TAPERED
TAPERED
DIMENSIONS WITH SUCTION AND DISCHARGE PORTS ROTATED 90 TO VERTICAL POSITION (SHOWN WITH DOTTED LINES).
DIMENSIONAL OUTLINES AVAILABLE SHOWING OPTIONAL TOP AND BOTTOM PORTING
AIR INLET
3/4” NPT(F)
AIR EXHAUST
3/4” NPT(F)
DISCHARGE PORT
1 1/2” NPT (F)
1 1/2” BSP (F) TAPERED
SUCTION PORT
1 1/2” NPT (F)
1 1/2” BSP (F) TAPERED
1/2” DIA. MOUNTING HOLES
TYP. (8) PLACES
* INDICATES DIMENSIONS WITH SUCTION AND DISCHARGE
PORTS ROTATED 180° TO A VERTICAL POSITION
PUMP TO BASE
UNIT OF MOUNTING HOLES
PUMP TO BASE
UNIT OF MOUNTING HOLES
-A features NPT threaded connections.
Model ST40-A features British Standard Pipe (BSP) tapered threaded connections.
