Assembly Instructions 40x60x18 Domed Style Truss Building

Version 3.1

Please DO NOT return unit to store or dealer. For all questions or shortages please contact

Customer Service at: 800-447-7079 or 203-877-7070

Figure 4

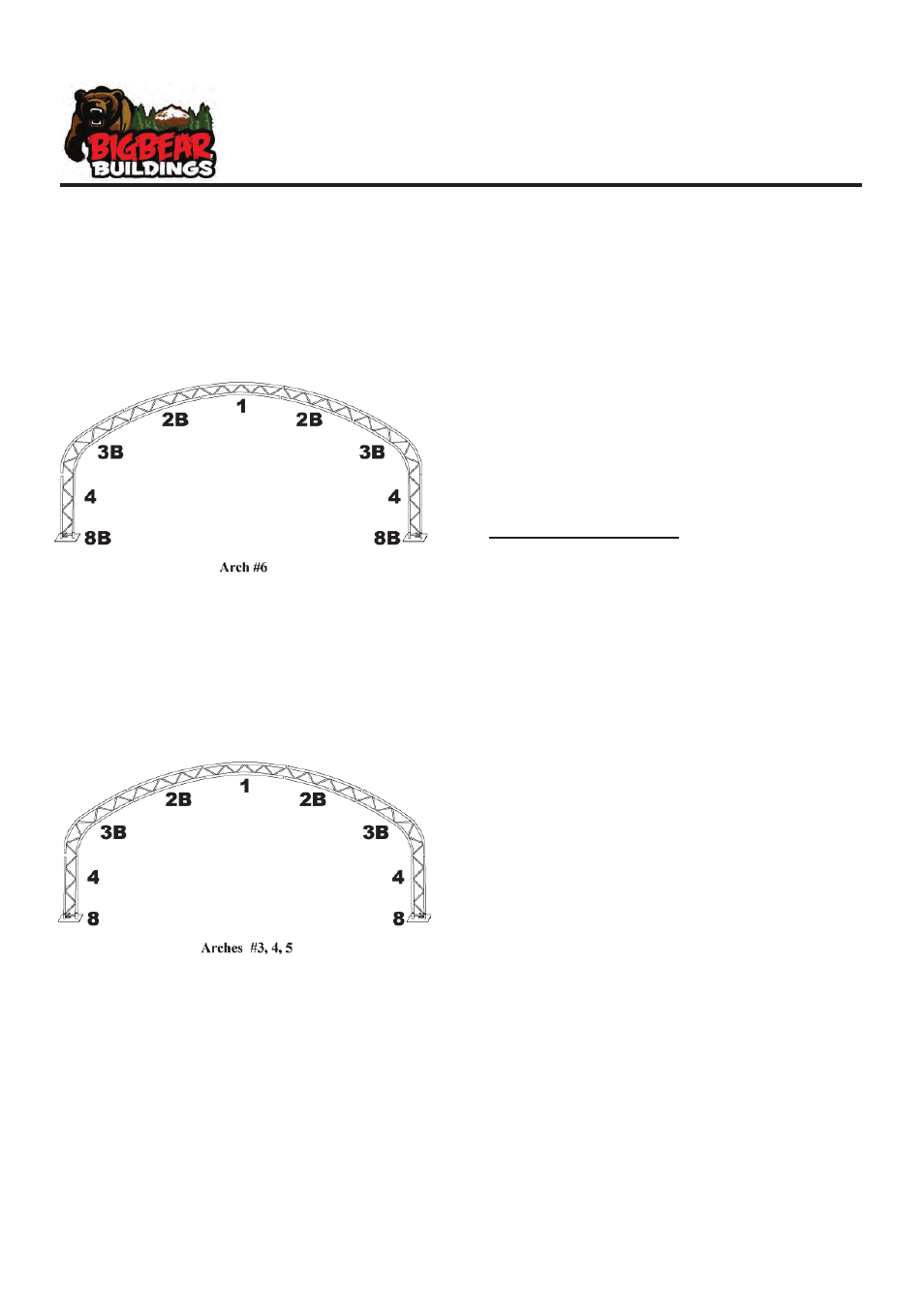

Assemble each of the five (5) Interior Arch Assemblies.
Each Interior Arch #3, #4, and #5 consists of:

One (1) Top Ridge Tube (Part #1)
Two (2) Curved Roof Tube (Part #2)
Two (2) Sidewall Tubes (Part #3)

Figure 5

These arches must have the Sidewall Tubes (Part #3C &
#3D) that accommodate the Wind Brace Supports. The
first Interior Arch from the Front Arch must use Sidewall
Tube (Part #3C), with clips for wind brace supports
facing towards the end arch. Welded Wind Brace Tabs
should be on the bottom of the sidewall tube

SECURING BASE PLATES

Step #2 – Secure Base Plates in Position

In order to assemble arches into a frame assembly, the
Base Plates (6L, 6R, 8A, & 8B) must be secured to the
mounting surface. Begin Refer to Figure 6 below for an
exact layout of all base Plates.
