Digital Video Recorder User Manual
56
4.2.6 Motion Configuration
Click MOTION to enter motion configuration as Fig 4.11 Motion Configuration.

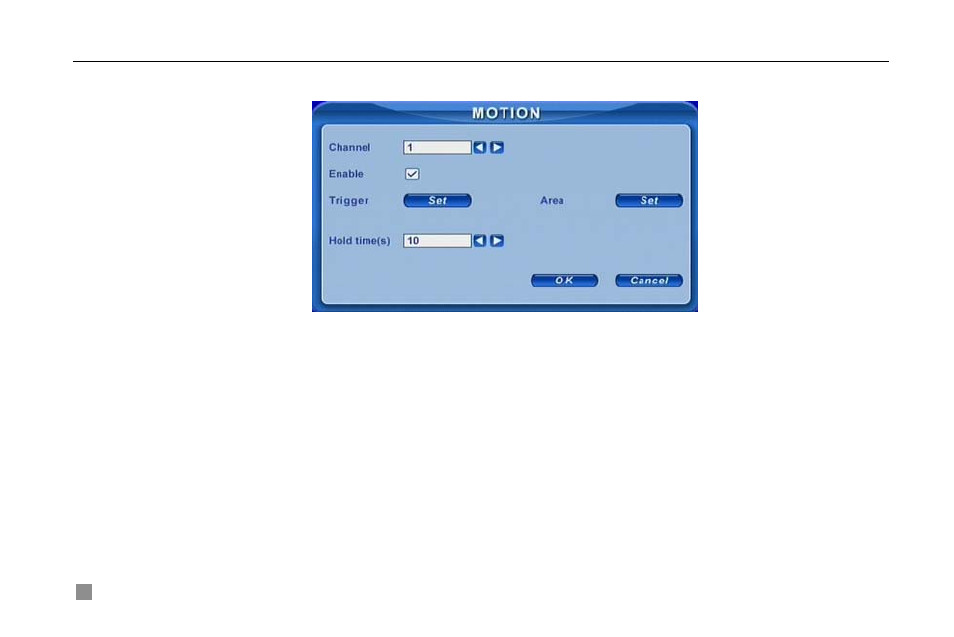

Fig 4.11 Motion Configuration
Here users can set motion sensitivity, detection area and alarm out. The following are the definitions of every option.
Enable:
enable motion detection.
Trigger:
setup similar with that of sensor alarm. But linked speed domes must be different front current channel. I.e. now
users enable motion detection of camera1, the linked speed domes must be camera2-16.
Area:
set sensitivity and motion detection area. It supports multi detection area as Fig 4.12 Detection Area Configuration.
Click the blocks or drag mouse to enable or disable. Red means unchecked, transparence means available. Click Save to
save and exit.
