Digital Video Recorder User Manual
55

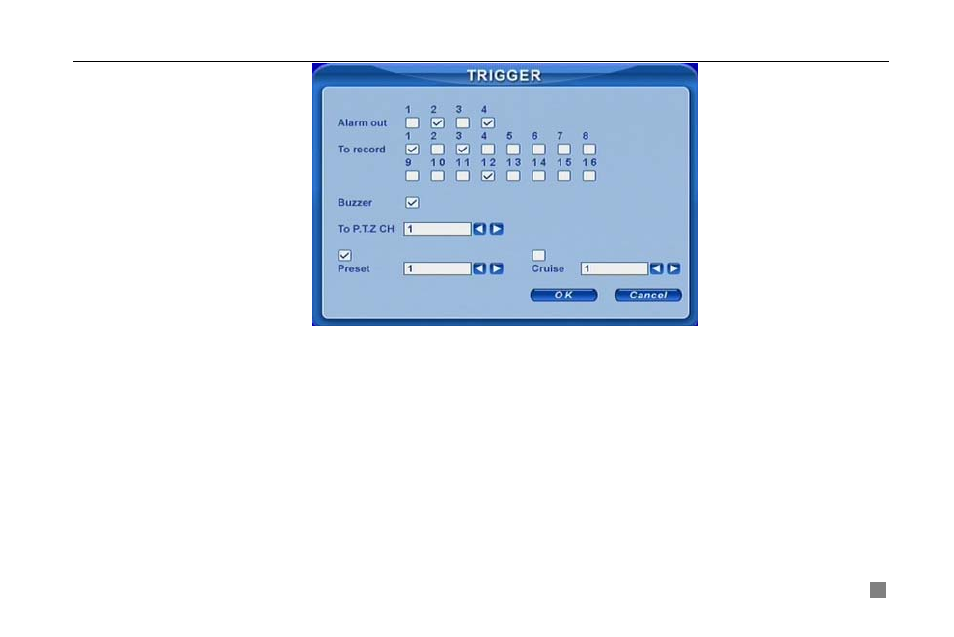

Fig 4.10 Alarm Out Configuration
Alarm out:
set relay alarm out channel. You can select any alarm channels.
To record:
set recording channels. You can select any record channels. It will record the cameras you choose here when
alarm triggered.
Buzzer:
enable buzzer on board for alarm.
To P.T.Z CH:
set linked preset and cruise for alarm. You can select any channel and multi channels as linked channels.
Alarm in hold time(S):
the interval time between the two adjacent efficient sensor alarms. If a second alarm is detected in
Hold time again, it is recognized as a continuous alarm. If a second alarm is detected after hold time, this alarm and the
previous are recognized as two different alarm events.
Alarm out hold time(S):
set relay alarm out time after alarm triggered.
Buzzer hold time(S):
set on board buzzer time after alarm triggered.
