LT Security LTD2308 User Manual
Page 14
Digital Video Recorder User Manual
8

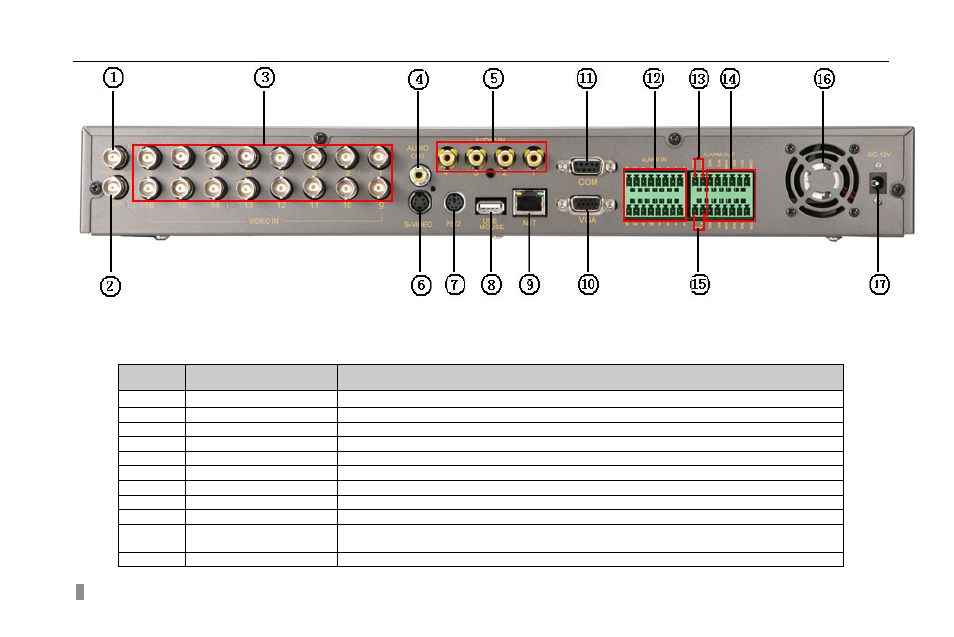

Fig 2.6 Rear Panel for 16-channel DVR
Item
Name
Description
1
VIDEO OUT
Connect to monitor
2
SPOT
Connect to monitor as an AUX output channel by channel. only video display, no menu show
3
VIDEO IN
16ch Video input
4
AUDIO OUT
Audio output, connect to the sound box
5
AUDIO IN
Audio input, connect to MIC or other audio capture devices
6
S-VIDEO
S-Video output, connect to monitor
7
PS/2 port
Connect to PS/2 mouse
8
USB port
Only for USB mouse
9
RJ45 port
Connected to internet
10
VGA port
VGA output, connect to monitor
11
COM port
For debug
