11
Digital Video Recorder User Manual

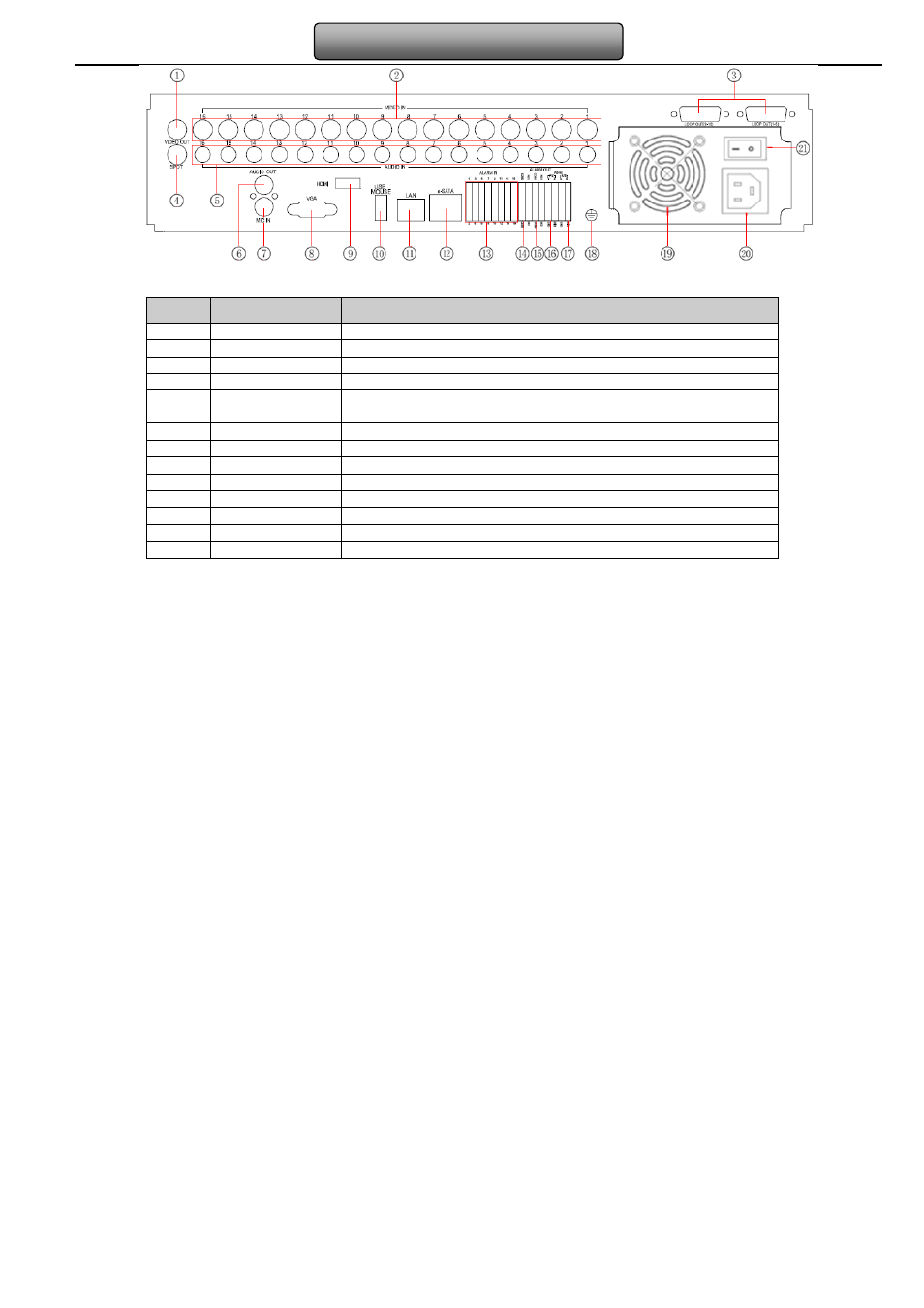

Fig 2.3 Rear Panel for 16-ch
Item Name Description
1 Video out Connect to monitor
2 Video in Video input channels from 1-16
3 E-SATA Connect to HDD for backup (optional)
4 LOOP OUT For outputting 1-16ch image independently
5 Spot out
Connect to monitor as an AUX output channel by channel. Only
video display, no menu show
6 Audio in 16 CH Audio input
7 Audio out Audio output, connect to the sound box
8 MIC IN Talk
9 VGA port VGA output, connect to monitor
10 HDMI port Connect to high-definition display device
11 USB port connect to USB mouse
12 LAN Network port
13 E-SATA Connect to HDD for backup (optional)
