A-2 INSTALLATION
POWER WAVE F355i (CE)
A-2
SELECT SUITABLE LOCATION
The Invertec POWER WAVE F355i will operate in
harsh environments. Even so, it is important that sim-
ple preventative measures are followed in order to
assure long life and reliable operation.
• The machine must be located where there is free cir-
culation of clean air such that air movement in the
back, out the sides and bottom will not be restricted.
• Dirt and dust that can be drawn into the machine
should be kept to a minimum. Failure to observe
these precautions can result in excessive operating
temperatures and nuisance shutdown.
• Keep machine dry. Shelter from rain and snow. Do
not place on wet ground or in puddles.
• DO NOT MOUNT OVER COMBUSTIBLE SURFACES.
Where there is a combustible surface directly
under stationary or fixed electrical equipment,
that surface shall be covered with a steel plate at
least .06
” (1.6mm) thick, which shall extend not
less than 5.90 ” (150mm) beyond the equipment on
all sides.
-----------------------------------------------------------------------
STACKING
POWER WAVE F355i can not be stacked.
TILTING
Place the machine directly on a secure, level surface
or on a recommended undercarriage. The machine
may topple over if this procedure is not followed.
INPUT AND GROUNDING CONNECTIONS
• Only a qualified electrician should connect the
Invertec POWER WAVE F355i. Installation should
be made in accordance with the appropriate
National Electrical Code.
SAFETY PRECAUTIONS
ELECTRIC SHOCK can kill.
• Turn the input power off at the dis-
connect switch before attempting
to connect or disconnect input
power lines, output cables or con-
trol cables
• Only qualified personnel should perform this
installation.
• Connect the green lead of the power cord to
ground per National Electrical Code.
----------------------------------------------------------------------
WARNING
• Incorrect connection may result in equipment
damage.
-----------------------------------------------------------------------

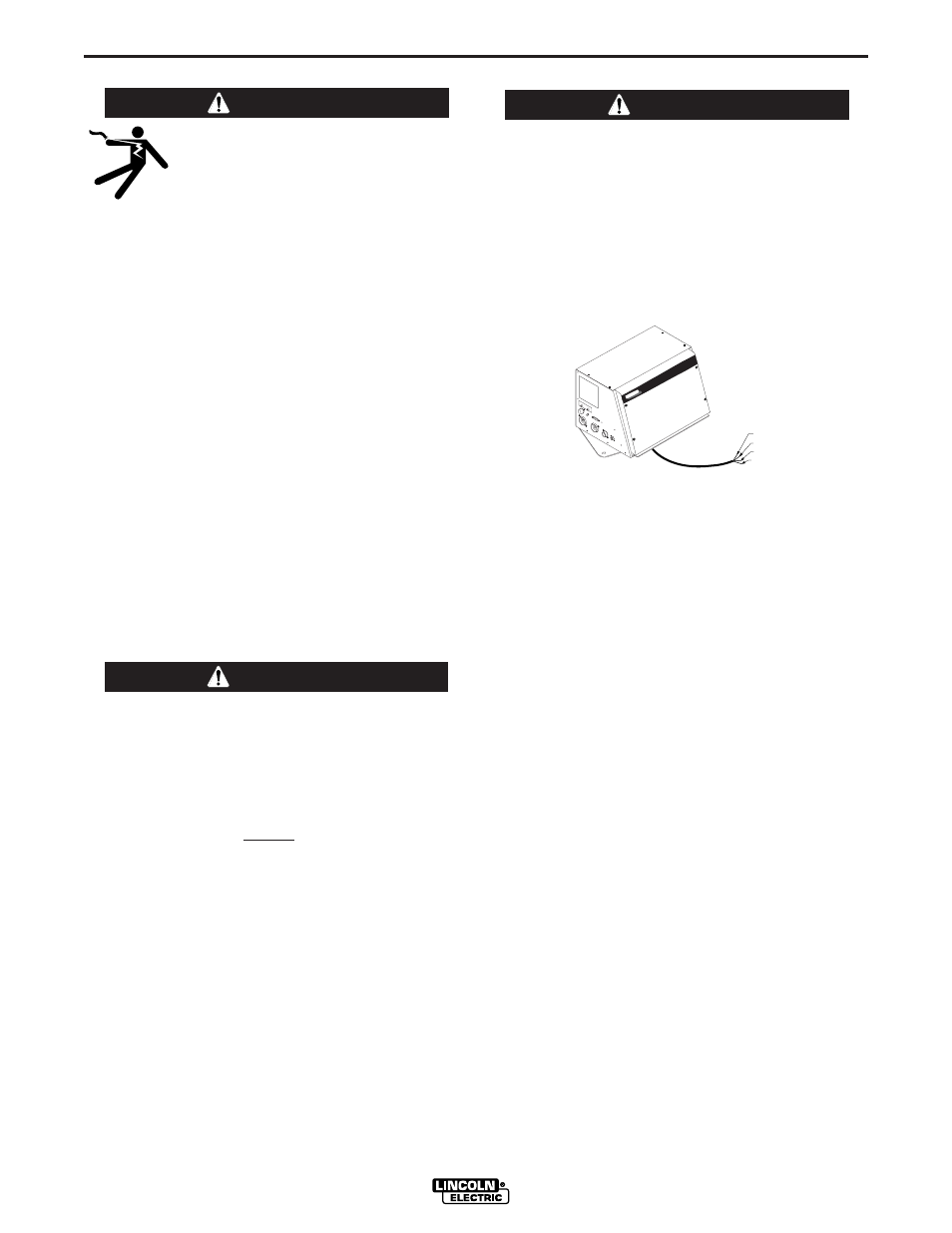

POWER CORD CONNECTION
A 7ft. (2m) power cord is provided and wired into the
machine. Follow the power cord connection instruc-
tions.
Three Phase Input
Connect green lead to ground per National Electric
Code.
Connect black, red and white leads to power.
POWER W
AVE F355i
GREEN/YELLOW
BLUE
BLACK
BROWN
CAUTION
CAUTION
