Page 21
B-5
OPERATION
B-5
POWER WAVE 455/R (CE)
CONSTANT VOLTAGE WELDING
For each wire feed speed, a corresponding voltage is
preprogrammed into the machine through special soft-
ware at the factory. The preprogrammed voltage is the
best average voltage for a given wire feed speed.
With synergic programs, when the wire feed speed
changes the Power Wave will automatically adjust the
voltage correspondingly.

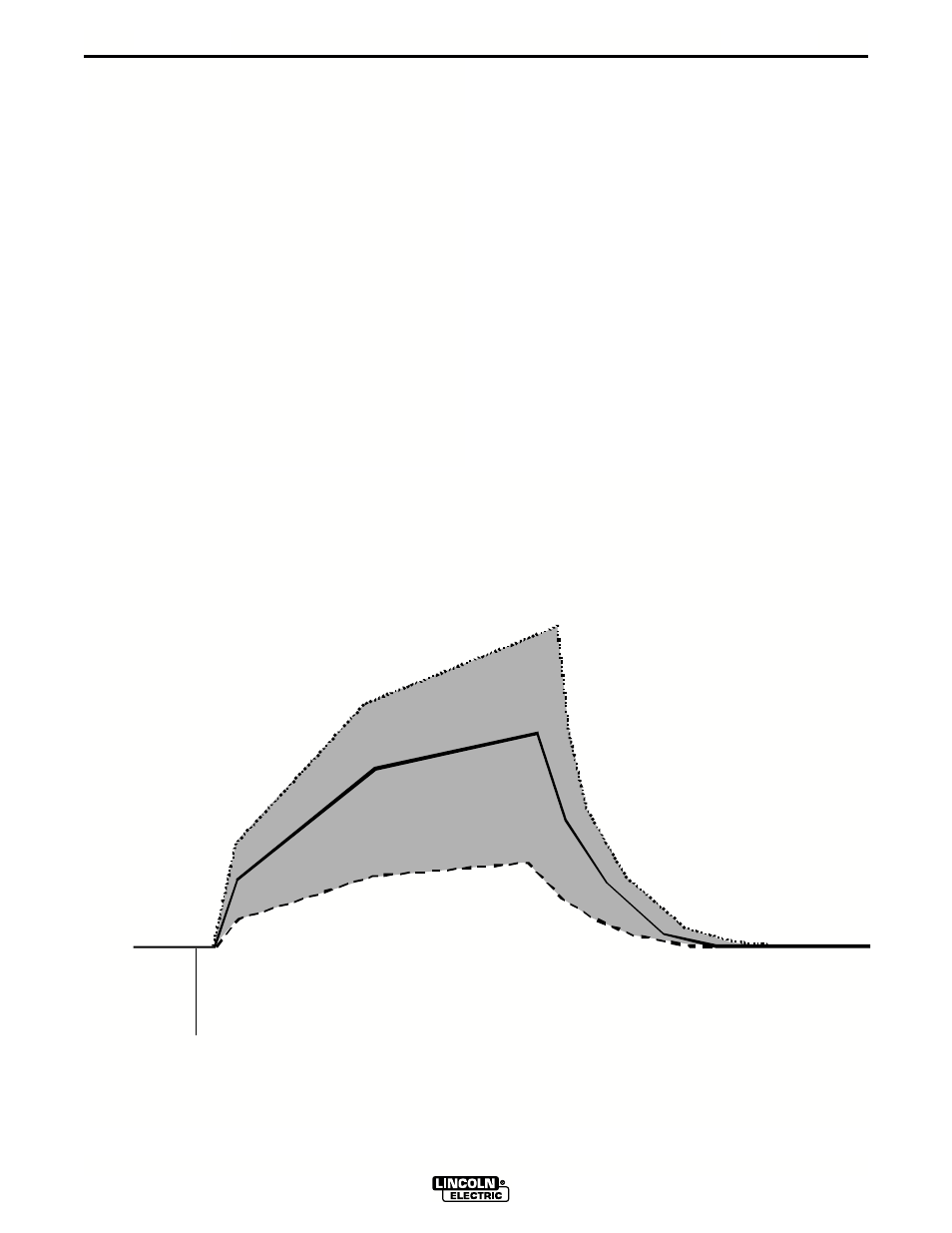

Wave control adjusts the inductance of the wave-
shape. (This adjustment is often referred to as "pinch".
Inductance is inversely proportional pinch.) Increasing
wave control greater than 0 results in a harsher, cold-
er arc while decreasing the wave control to less than 0
provides a softer, hotter arc. (See Figure A.5)
Wave Control 0.00
Wave Control +10.0
Wave Control -10.0
FIGURE A.5
Current
Time
