GENERAL DESCRIPTION
The Power Feed 10 Robotic is a high performance,
digitally controlled, modular wire feeder. Properly
equipped, it can support the GMAW, GMAW-P and
FCAW processes. The Power Feed wire feeders are
designed to be a part of a modular, multi-process
welding system. The Power Feed 10 Robotic is a 4
driven roll feeder that operates on 40VDC input
power.
The Power Feed Robotic wire feeders are designed to
be used with Robotic PowerWaves. Close integration
of the feeder, power source and customerʼs equip-
ment creates the foundation for a system with superior
welding performance.
The Power Feed 10 Robotic is intended for automatic
applications. It specifically designed to mount to a
robot arm or to use in hard automation applications.
Operation for the Power Feed 10 Robotic is with a
Power Feed compatible robotic power source.
RECOMMENDED PROCESSES
The Power Feed Wire Feeders can be set up in a
number of configurations. They are designed to be
used for GMAW, GMAW-P and FCAW for a variety of
materials, including mild steel, stainless steel, and
cored wires.
PROCESS LIMITATIONS
The feeders are capable of handling only some sub-
merged arc applications.
RECOMMENDED EQUIPMENT/INTERFACE
The Power Feed Robotic Feeders must be used with
PowerWave 455/R, PowerWave 655/R or other
Robotic PowerWave source. These are the only
power source to supply the correct operating voltage
(40 volts DC) and communication method (Arc-Link
digital communications) required by the Power Feed
10 Robotic.
B-1 OPERATION
POWER FEED 10 / R
B-1

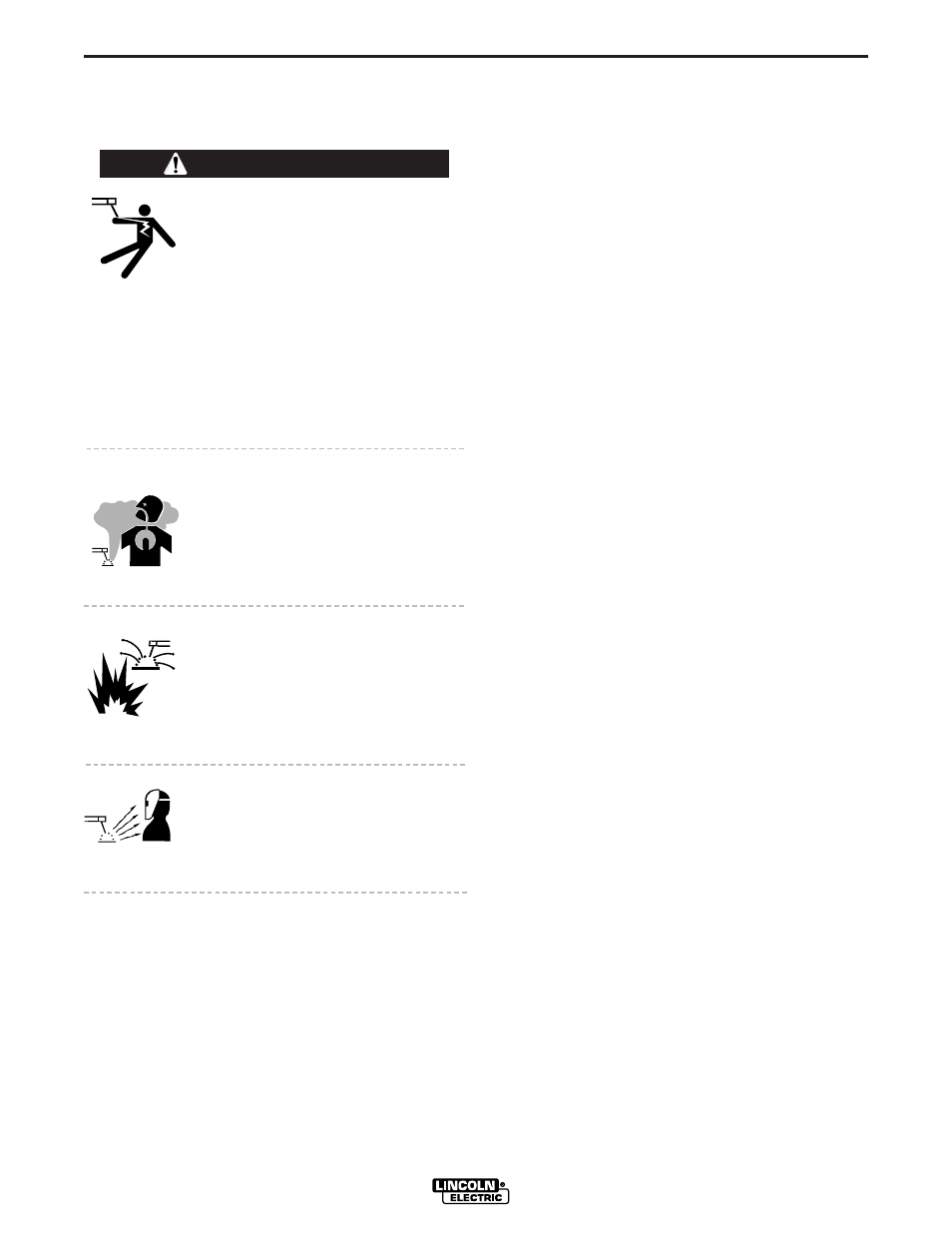

SAFETY INSTRUCTIONS
Read and understand this entire section of operat-
ing instructions before operating the machine.
ELECTRIC SHOCK can kill.
• Unless using cold feed feature,
when feeding with gun trigger, the
electrode and drive mechanism are
always electrically energized and
could remain energized several sec-
onds after the welding ceases.
• Do not touch electrically live parts or electrodes
with your skin or wet clothing.
• Insulate yourself from the work and ground.
• Always wear dry insulating gloves.
FUMES AND GASES can be
dangerous.
• Keep your head out of fumes.
• Use ventilation or exhaust to
remove fumes from breathing zone.
WELDING SPARKS can cause
fire or explosion.
• Keep flammable material away.
• Do not weld on containers that have
held combustibles.
ARC RAYS can burn.
• Wear eye, ear, and body protection.
Observe additional Safety Guidelines
detailed in the beginning of this manual.
DUTY CYCLE
The Power Feed wire feeders are capable of welding
at a 100% duty cycle (continuous welding). The
power source will be the limiting factor in determining
system duty cycle capability.
