A-15
INSTALLATION
LN-7 & LN-7 GMA
A-15

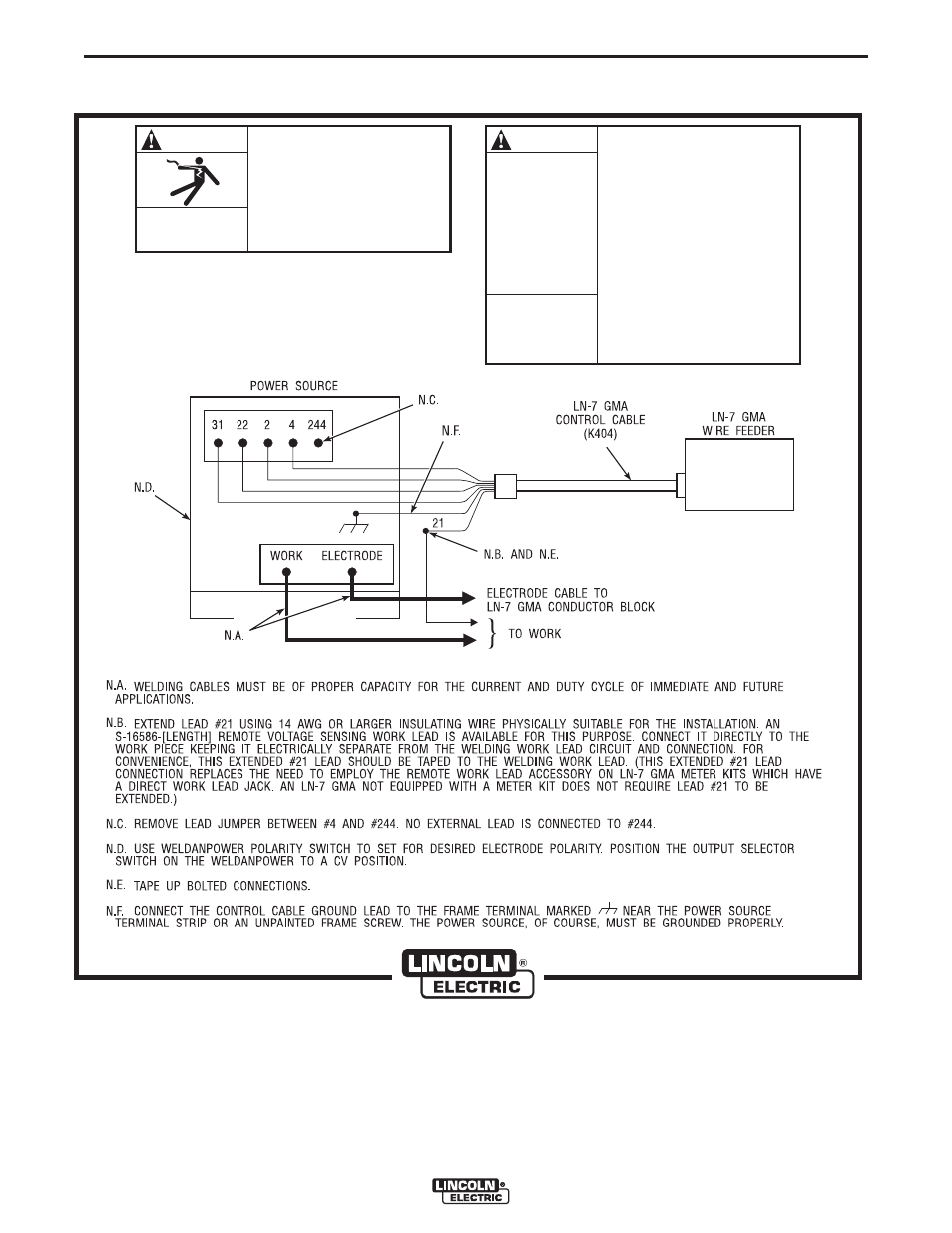

FIGURE A.13 – LN-7 & LN-7 GMA TO WP250 OR G9 PRO - CONNECTION DIAGRAM.
CLEVELAND, OHIO U.S.A
ELECTRIC
SHOCK
CAN KILL
TURN INPUT POWER OFF
BEFORE CONNECTING THE
LN-7 GMA WIRE FEEDER.
WARNING
LN-7 GMA TO WP250 G9
PRO: ANY INCREASE OF THE
HIGH IDLE ENGINE RPM BY
CHANGING THE GOVERNOR
SETTING OR OVERRIDING
THE THROTTLE LINKAGE
WILL CAUSE AN INCREASE
IN THE AC AUXILIARY
VOLTAGE. IF THIS VOLTAGE
GOES ABOVE 140 VOLTS,
THE LN-7 GMA CONTROL
CIRCUIT WILL BE DAMAGED.
THE ENGINE GOVERNOR
SETTING IS PRE-SET AT THE
FACTORY - DO NOT ADJUST
ABOVE RPM SPECIFICATIONS
LISTED IN ENGINE WELDER
OPERATING MANUAL.
CAUTION
AUXILIARY
VOLTAGE MUST
NOT EXCEED
140 VOLTS.
