A-5 INSTALLATION
LAMP KIT FOR WALL-MOUNTED SYSTEMS
A-5
INSTALLING THE LAMP KIT
(continued)
ROUTING THE CONNECTING CABLE
(continued)
If installing with an Extension Crane:
After feeding the 36 ft. connecting cable through the
arm and out the rotating hinge, run the cable back the
base of the extension crane, securing it to the support
pegs with wire ties as shown in Figure 8B.

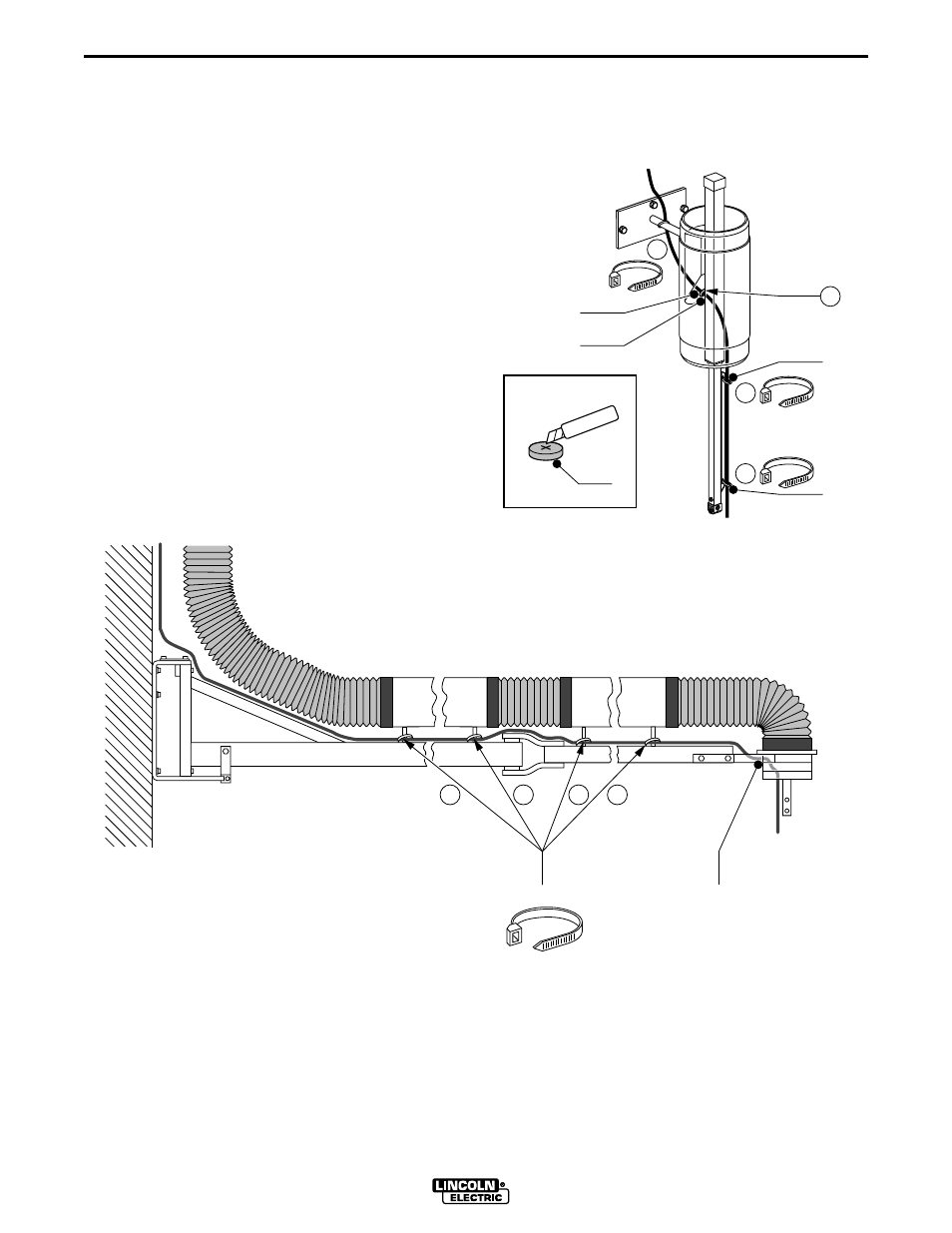

If installing with an LTA 2.0 Telescopic Arm:
Route the 36 ft. connecting cable through the arm,
securing it to the telescopic mechanism in two places
with cable ties as shown in Figure 8. Exit the arm
through the hole near the rotating hinge (Fig. 9A); use
a knife to cut an X-pattern in the grommet as shown in
Figure 9. Loosely secure the cable to the post of the
mounting bracket as shown in Figure 9.
After securing the cable to the arm mechanism,
reseal all hose joint connections with the rubber
seals.
B
D
C
B
A
2
1
4
3
A B
3 2 1 4
Fig. 8
Fig. 9
