Lincoln Electric IM627 Lamp Kit for Wall-Mounted Systems - Manual (Page 11)

A-4 INSTALLATION
LAMP KIT FOR WALL-MOUNTED SYSTEMS
A-4
INSTALLING THE LAMP KIT
(continued)
ROUTING THE CONNECTING CABLE
Roll back the rubber bands on each flexible hose joint
in the arm, to allow access to the arm mechanism.
If installing with a 10 ft. or 13 ft. Arm:

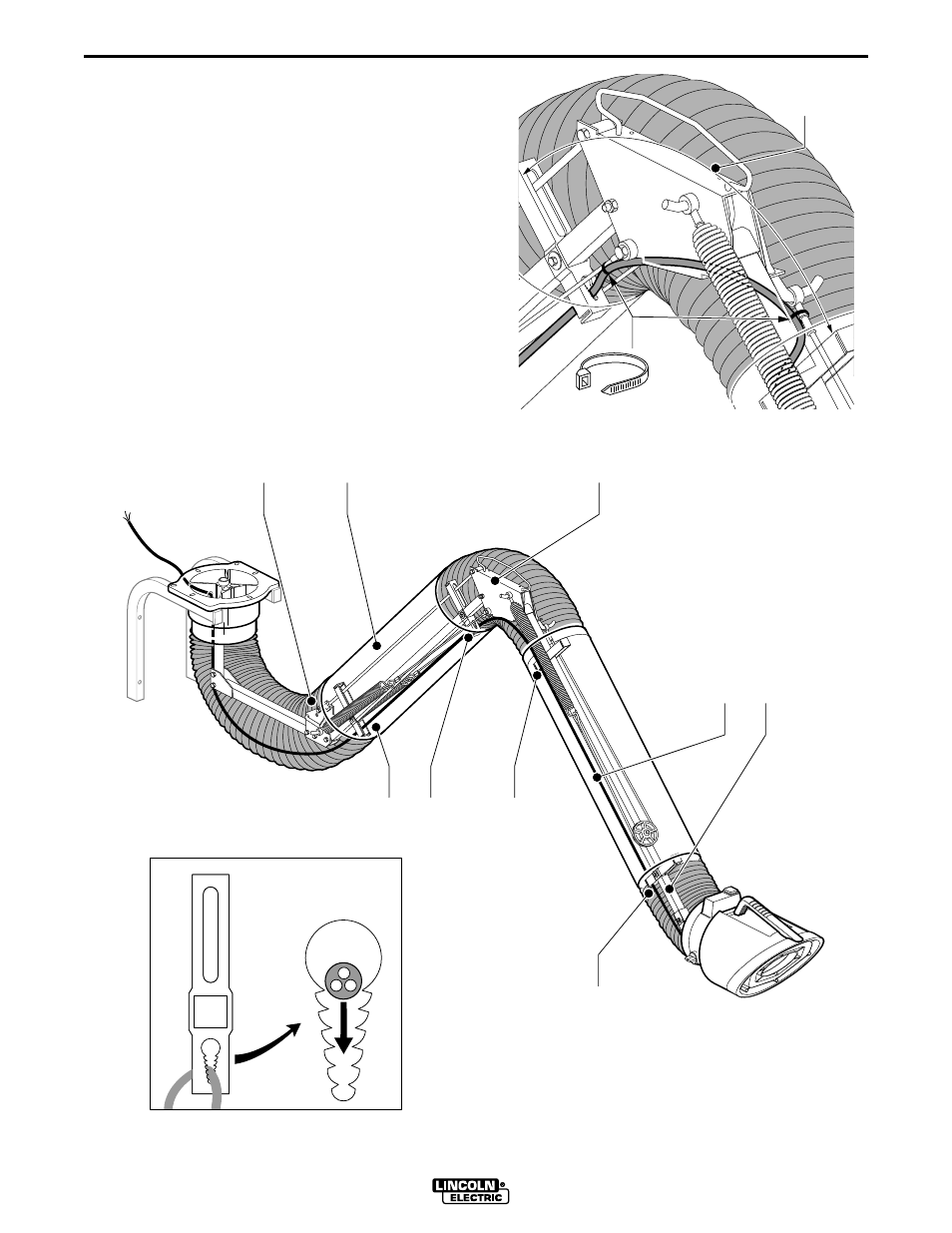

Route the 36 ft. connecting cable through the four
cable holders in the arm (Fig. 6D). Leave plenty of
slack at each hinge (Fig. 6A) (22 in. at the middle
hinge). Secure the cable in the cable holders (Figure
6-Inset), and use wire ties at the hinge as shown in
Figure 7. Exit the arm through the cable hole in the
rotating hinge; use a knife to cut a small X-pattern in
the grommet as shown in Figure 9-Inset.
L=min. 22"
(550 mm)
4x
D D
A B A
C A
D
D
Fig. 6
Fig. 7
