©2009 Johnson Level & Tool 9
If the instrument is bumped in the “TILT” mode, the instrument will
stop rotating, the laser will flash and the LCD sign “TILT” will begin
blinking. Press the key to have the instrument auto-leveling.
Manual Mode
Press the key to enter or exit manual mode. The LCD shows the
sign “MAN” when in manual mode. When entering the “MAN”
status, the instrument will not auto-level. If the Tilt key is pressed
in “MAN” mode, the instrument will re-enter auto-leveling mode.
Slope Setting
“SLOPE” setting range: -7.999% to +7.999%

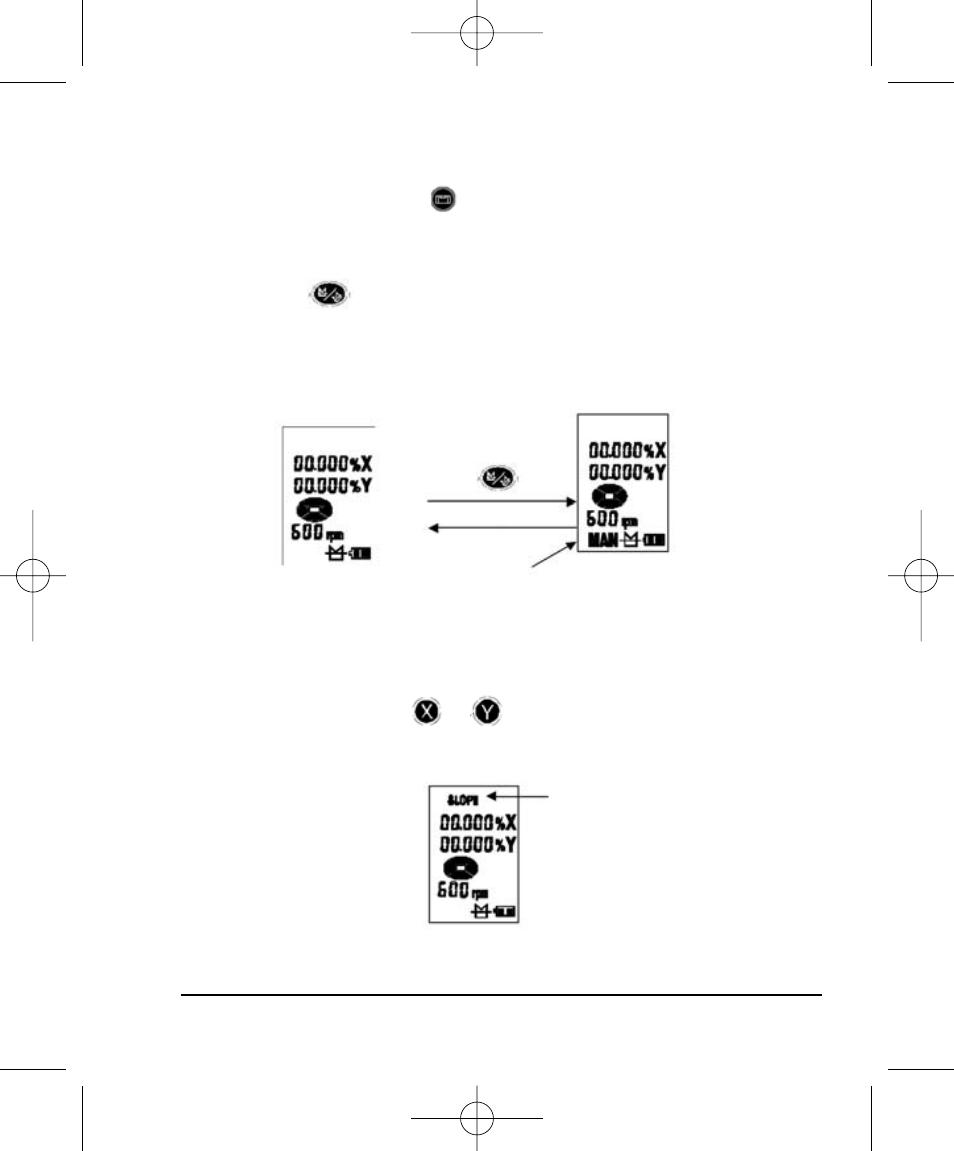

With the press of the key or , the instrument enters “SLOPE”
mode as shown in the following figure.
Press key
“MAN” status
Auto-level mode Manual mode
Slope setting
