SKIRT HEIGHT CHECK AND ADJUSTMENT
Drive the machine on a level fl oor that is suitable for
checking the skirt height. Make sure that the machine
cannot move independently; if equipped, press the pedal
brake (26).
Turn the ignition key (71) to "0".
Side skirt check
Check the side skirts (13 and 14) for integrity.

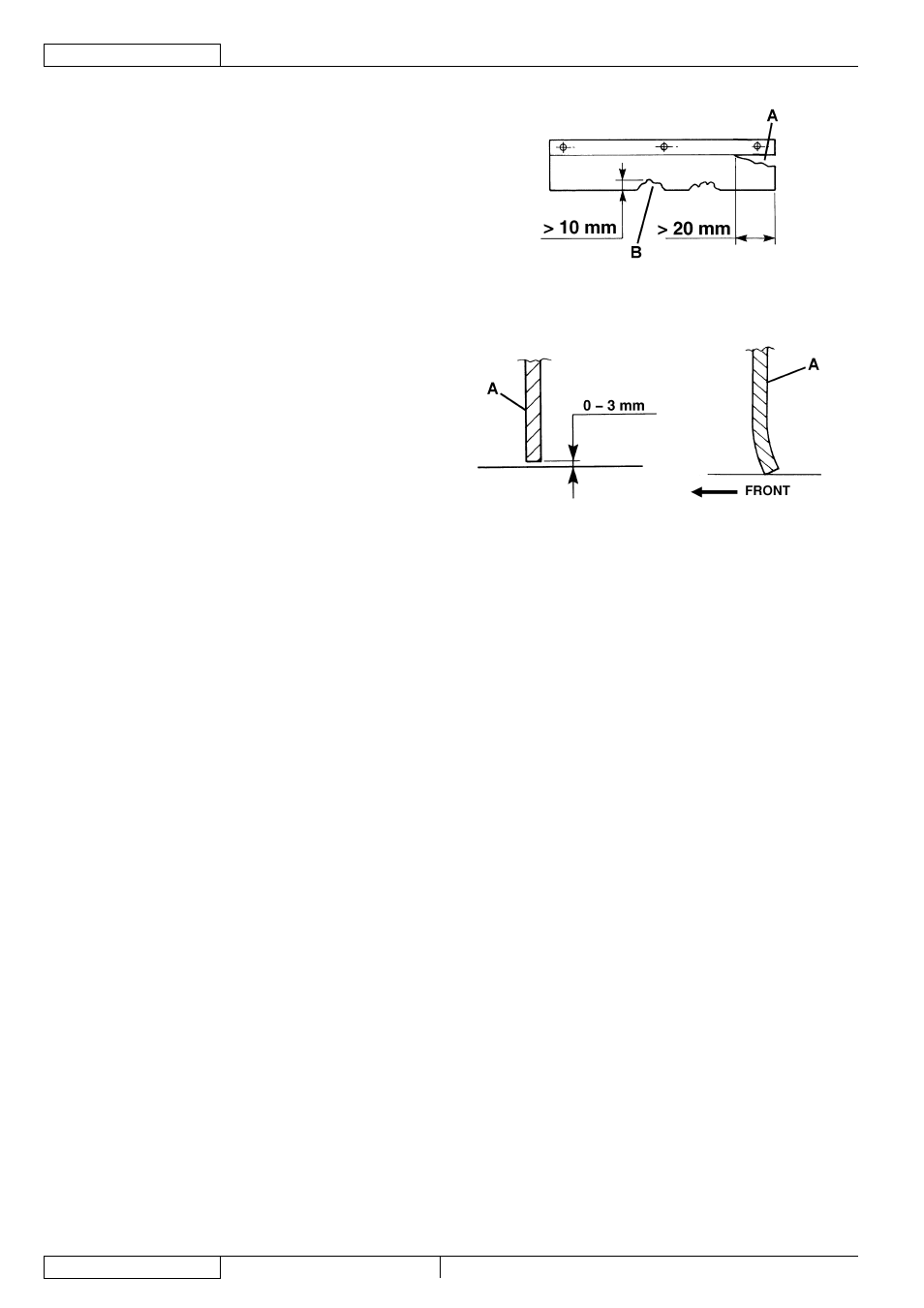

Replace the skirts when they have cuts (A, Fig. 15) larger
than 20 mm or cracks/tears (B) larger than 10 mm (for skirt
replacement, refer to the Service Manual).
Check that distance from the ground of the side skirts (13
and 14) is within 0 – 3 mm (A, Fig. 16). If necessary, adjust
the skirt height according to the following procedure.
1.
2.
3.
4.
S311468
Figure 15
S311469 S311470
Figure 16 Figure 17
